A2546HA-2X18P: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric View All

A2546HA-2X18P Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug

A2546HA-2X18P Parametric

Parameter Name	Attribute value
Objectid	304426674
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.2 inch
subject depth	0.549 inch
body length	1.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Rated current (signal)	3 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	36

Preview

Download Datasheet

View All

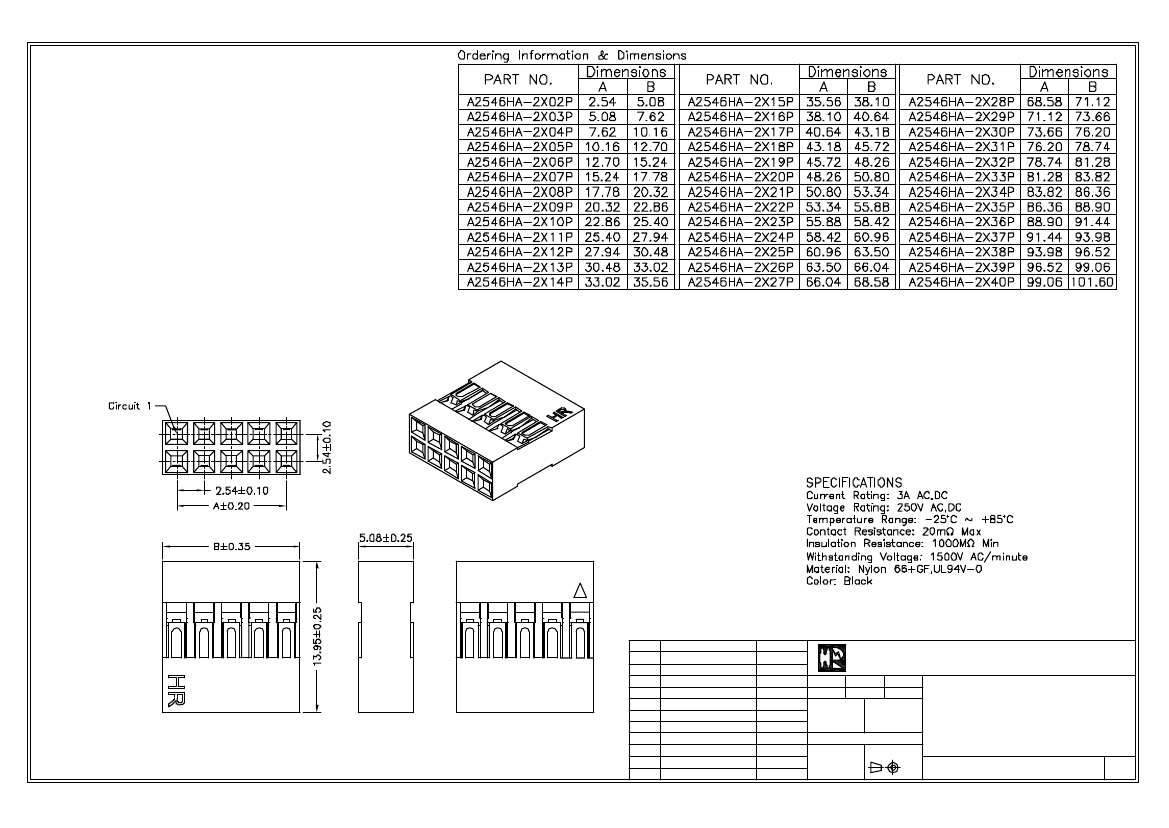

JOINT TECH ELECTRONIC IND. CO., LTD.

JOY DAY INDUSTRIAL CO., LTD.

UNIT

SCALE

SHEET

mm

1 of 1

DRAWN BY

APPROVED BY

李勤

董正一

2006.02.20

GENERAL TOLERANCE

X.X ±

0.25

ANGLE ±

X.XX ±

0.15

X.XXX ±

0.05

TITLE:

A2

A1

A0

REVISE

NEW RELEASE

2006.08.14

2006.04.20

2006.02.20

2.54mm PITCH

DUAL ROW HOUSING

DRAW NO.:

A2546HA-2XNP

REV.

A2

REV.

DESCRIPTION

DATE
