BD3150N50100AHF Overview

signal conditioning 3.1-5.0ghz 50/100 ohm IL=.7db

Model BD3150N50100AHF
Rev D
Ultra Low Profile 0404 Balun
50Ω to 100Ω Balanced
Description
PRELIMINARY
The BD3150N50100AHF is a low cost, low profile sub-miniature unbalanced
to balanced transformer designed for differential inputs and output locations on
modern chipsets in an easy to use surface mount package covering the MMDS and
the low end of the UWB frequency range. The BD3150N50100AHF is ideal for high
volume manufacturing and delivers higher performance than traditional ceramic
baluns. The BD3150N50100AHF has an unbalanced port impedance of 50 and a
100 balanced port impedance. This transformation enables single ended signals to
be applied to differential ports on modern integrated chipsets. The output ports have
equal amplitude (-3dB) with 180 degree phase differential. The BD3150N50100AHF

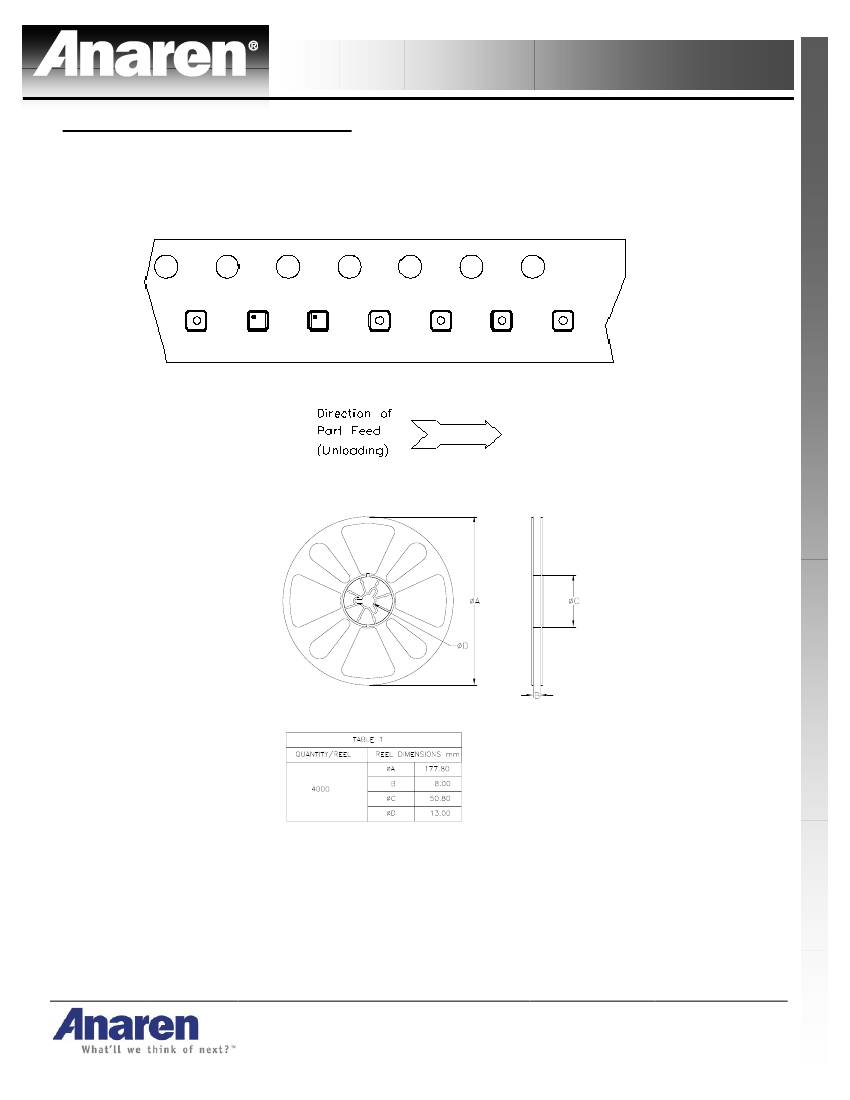

is available on tape and reel for pick and place high volume manufacturing.
Detailed Electrical Specifications:
Specifications subject to change without notice.
Features:
3100 – 5000 MHz
0.57mm Height Profile
50 Ohm to 2 x 50 Ohm
Low Insertion Loss
UWB & MMDS
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
Halogen Free
Parameter
Frequency
Unbalanced Port Impedance
Balanced Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
CMRR
Power Handling @85C
Power Handling @105C
Operating Temperature
Min.
3100
50
100
15
0.7
0.8
3
26
Typ.
ROOM (25C)
Max
Min.
5000
5000
50
100
14
0.7
0.8
15
17
Typ.
Max
7000
Unit
MHz
dB
dB
dB
Degrees
dB
Watts
Watts
ºC
13
10
0.9
1.5
7
1.0
0.6
+105
0.9
1.3
20
1.0
0.6
+105
-55
-55
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)

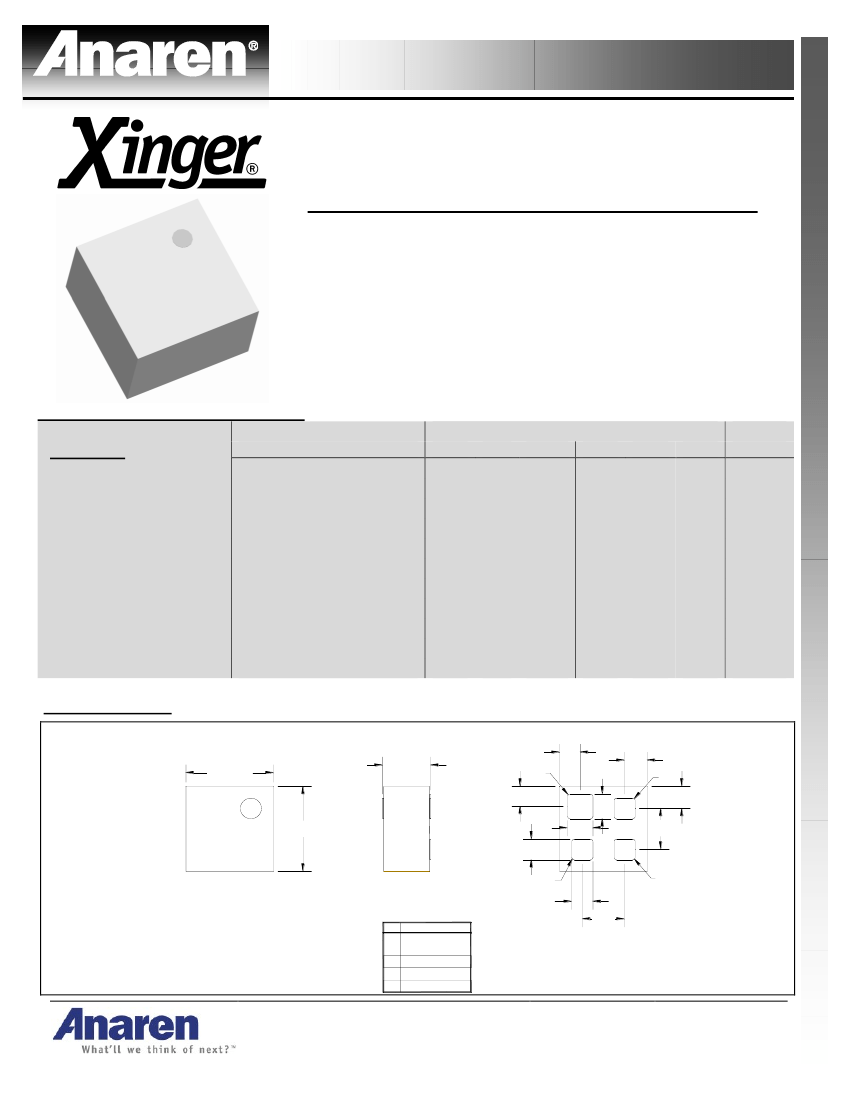

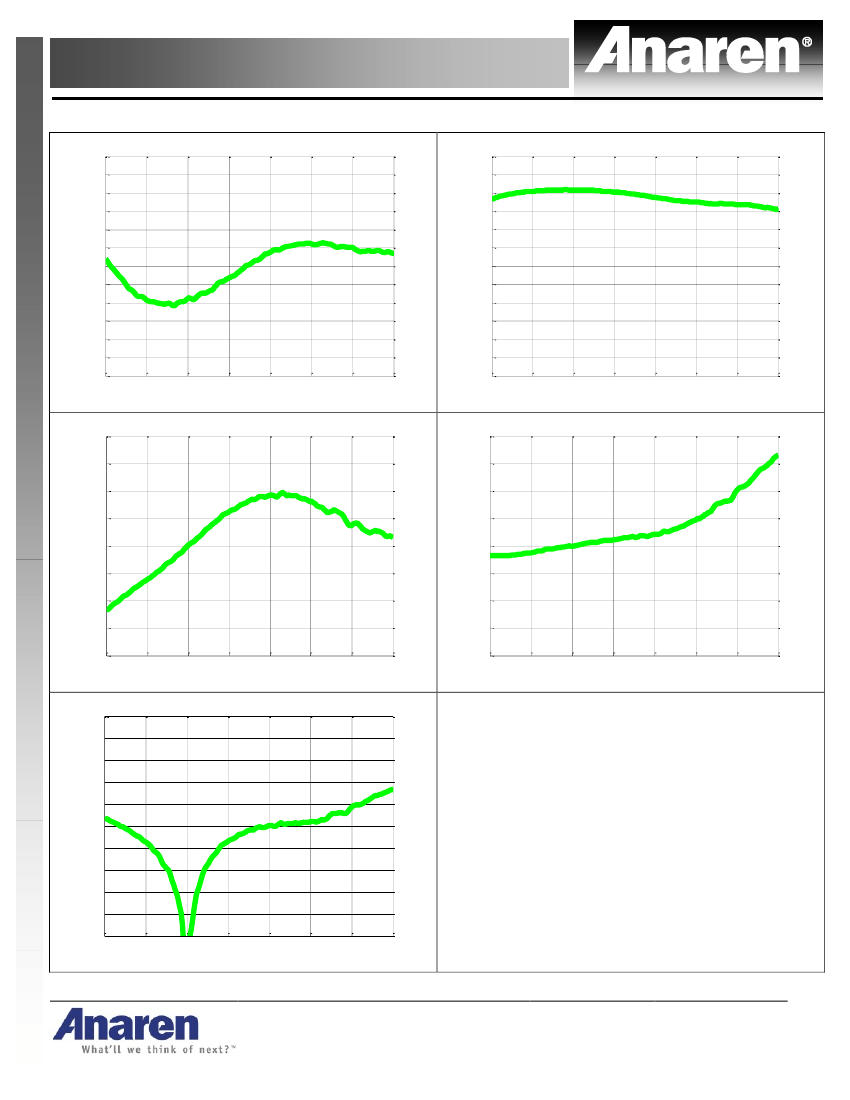

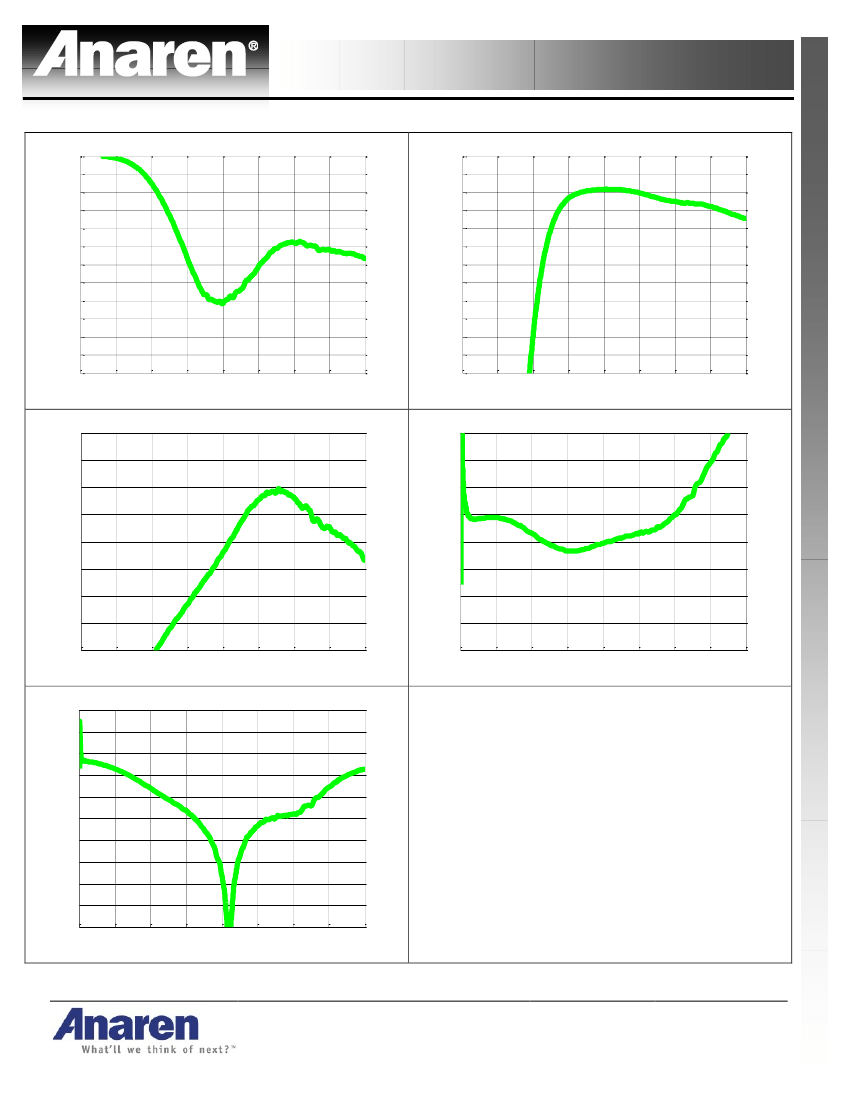

Outline Drawing
Top View (Near-side)
1.04
±.10
Side View
.24
.57
±.05
.24
1.04
±.10
3x .25
4
3x .25
Pin Designation
GND / DC Feed
1
+ RF GND
Bottom View (Far-side)
3x .27
2
.30
.30
3x .27
.50
1
3
.50
Dimensions are in Millimeters

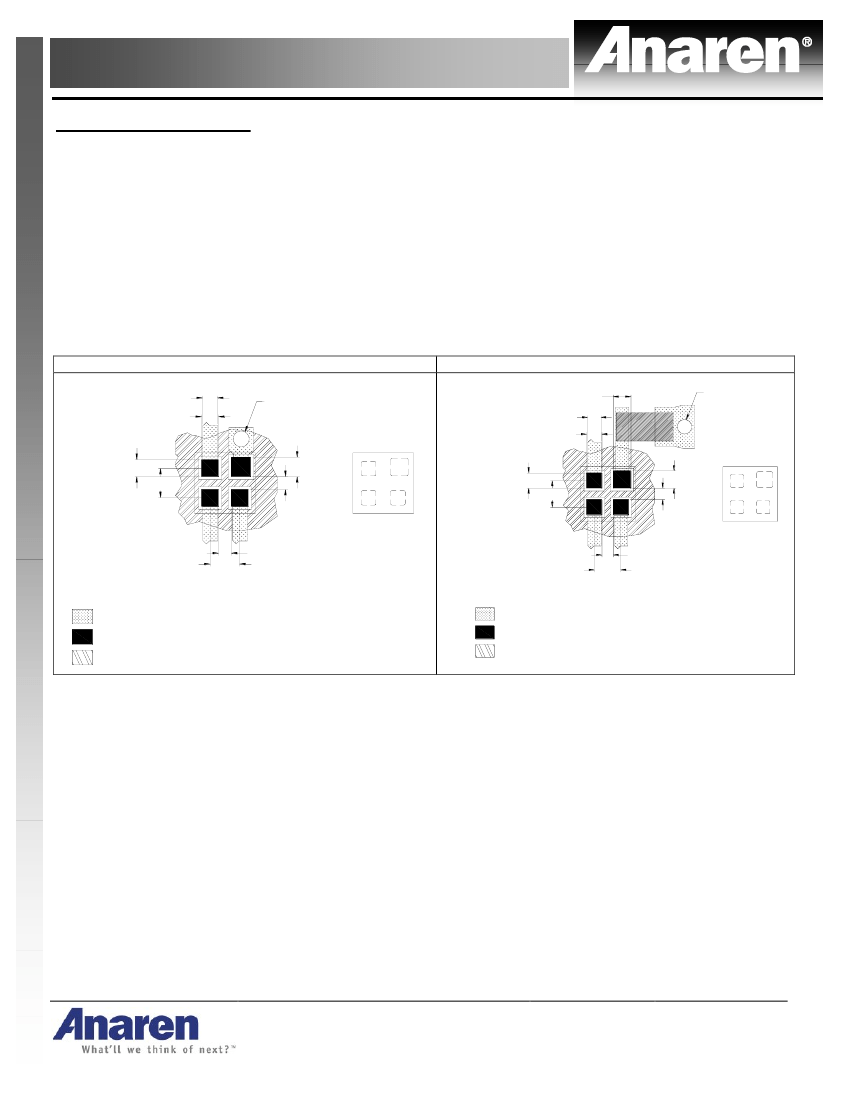

Mechanical Outline
2 Unbalanced Port
3 Balanced Port
4 Balanced Port
Tolerances are Non-Cumulative
