1N4001G - 1N4007G
BY133G
PRV : 50 - 1000 Volts
Io : 1.0 Ampere
FEATURES :
*
*
*
*
*
Glass passivated chip
High current capability
High reliability
Low reverse current
Low forward voltage drop
GLASS PASSIVATED JUNCTION
SILICON RECTIFIERS

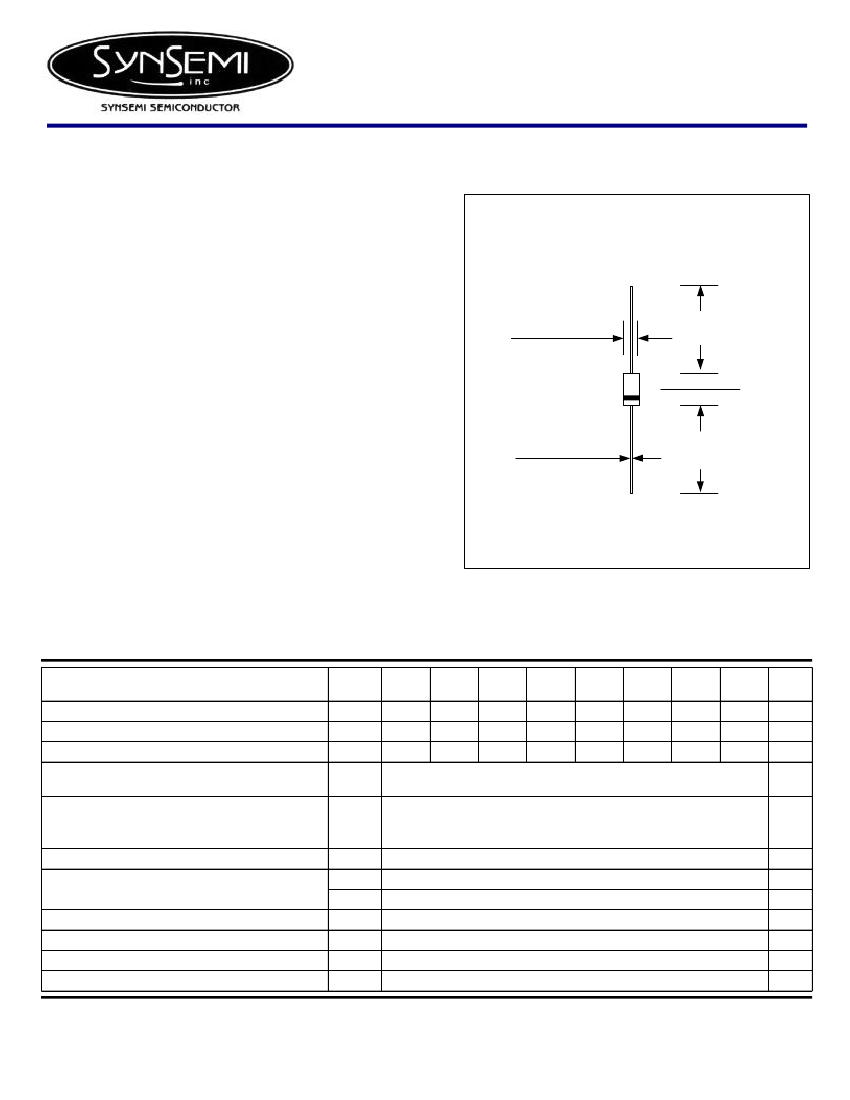

DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.34 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length Ta = 75
°C
Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Forward Voltage at I
F
= 1.0 Amp.
Maximum DC Reverse Current
at rated DC Blocking Voltage
Ta = 25
°C
Ta = 100
°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
C
J
R
θ
JA
T
J
T
STG
1N
1N
1N
1N
1N
1N
1N
4001G 4002G 4003G 4004G 4005G 4006G 4007G
50
100
200
400
600
800
1000
35
50
70
100
140
200
280
400
1.0
30
1.0
5.0
50
8
45
- 65 to + 175
- 65 to + 175
420
600
560
800
700
1000
BY
133G
1300
910
1300
UNIT
V
V
V
A
A
V
µA
µA
pF
°C/W
°C
°C
Typical Junction Capacitance (Note1)
Typical Thermal Resistance (Note2)
Junction Temperature Range
Storage Temperature Range
Notes :
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0VDC
(2) Thermal resistance from Junction to Ambient at 0.375" (9.5mm) Lead Lengths, P.C. Board Mounted.
Page 1 of 2
Rev. 01 : January 10, 2004

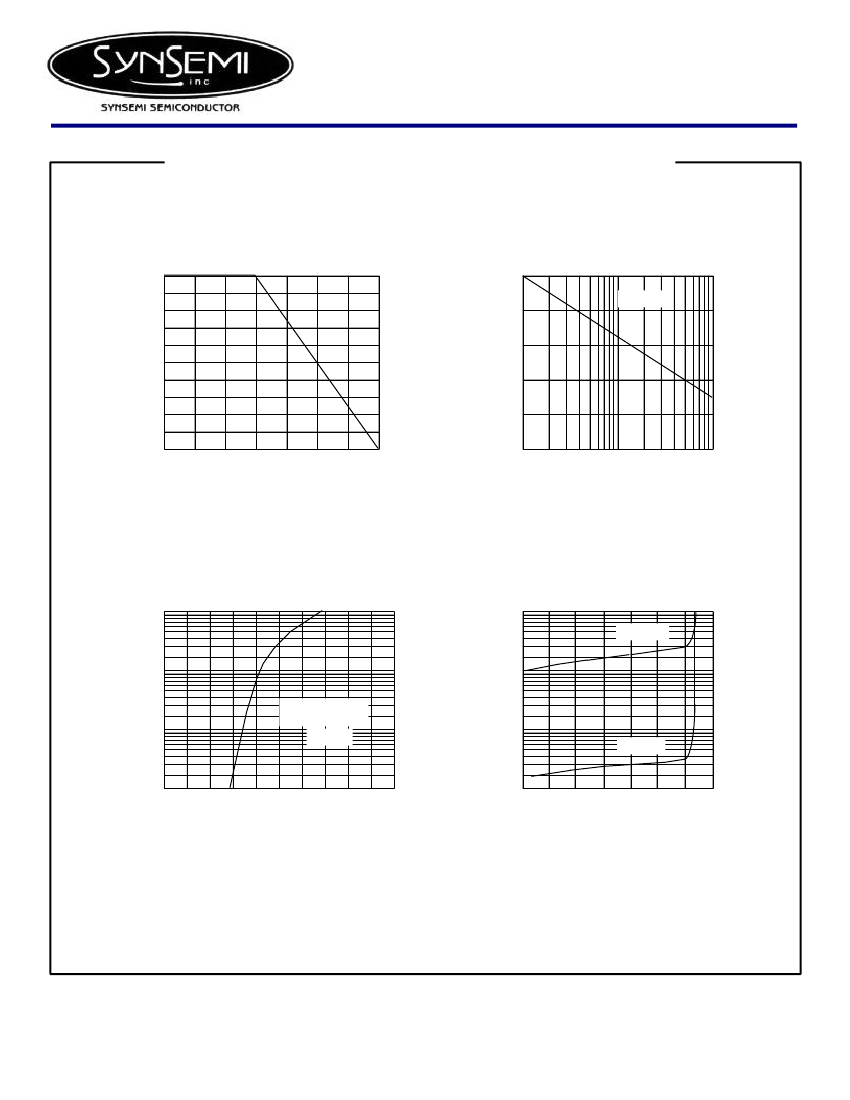

RATING AND CHARACTERISTIC CURVES ( 1N4001G - BY133G )
FIG.1 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
1.0
30
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
Ta = 25
°C
24
0.8
0.6
18
0.4
12
0.2
6
0
0
25
50
75
100
125
150
175
0
1
2
4
6
10
20
40
60
100
AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
REVERSE CURRENT, MICROAMPERES
FORWARD CURRENT, AMPERES
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
10
10
Ta = 100
°C
1.0
1.0
Pulse Width = 300
µs
2% Duty Cycle
0.1
T
J
= 25
°C
0.1
Ta = 25
°C
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0.01
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, VOLTS
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 01 : January 10, 2004
