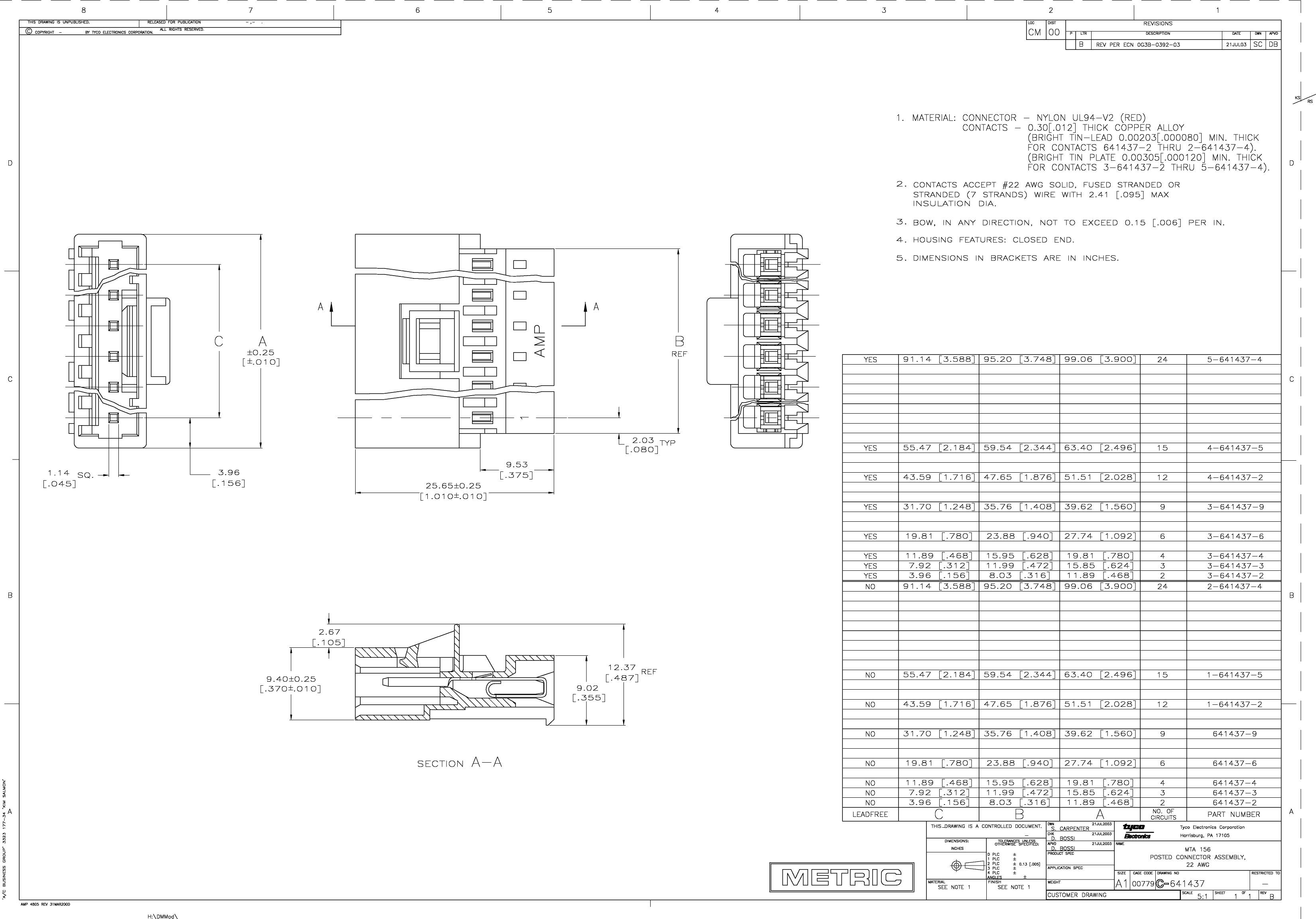

3-641437-3 datasheet, PDF - EEWORLD Datasheet

3-641437-3: Description03P MTA156 PSTD CONN ASSY RED; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-641437-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-641437-3	-	-	View	Buy Now

03P MTA156 PSTD CONN ASSY RED

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	SHROUDED
body width	0.487 inch
subject depth	1.01 inch
body length	0.624 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	7.1168 N
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	641437
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	3
UL Flammability Code	94V-2
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	.8896 N
Base Number Matches	1
