2164-66-01-P2 datasheet, PDF - EEWORLD Datasheet

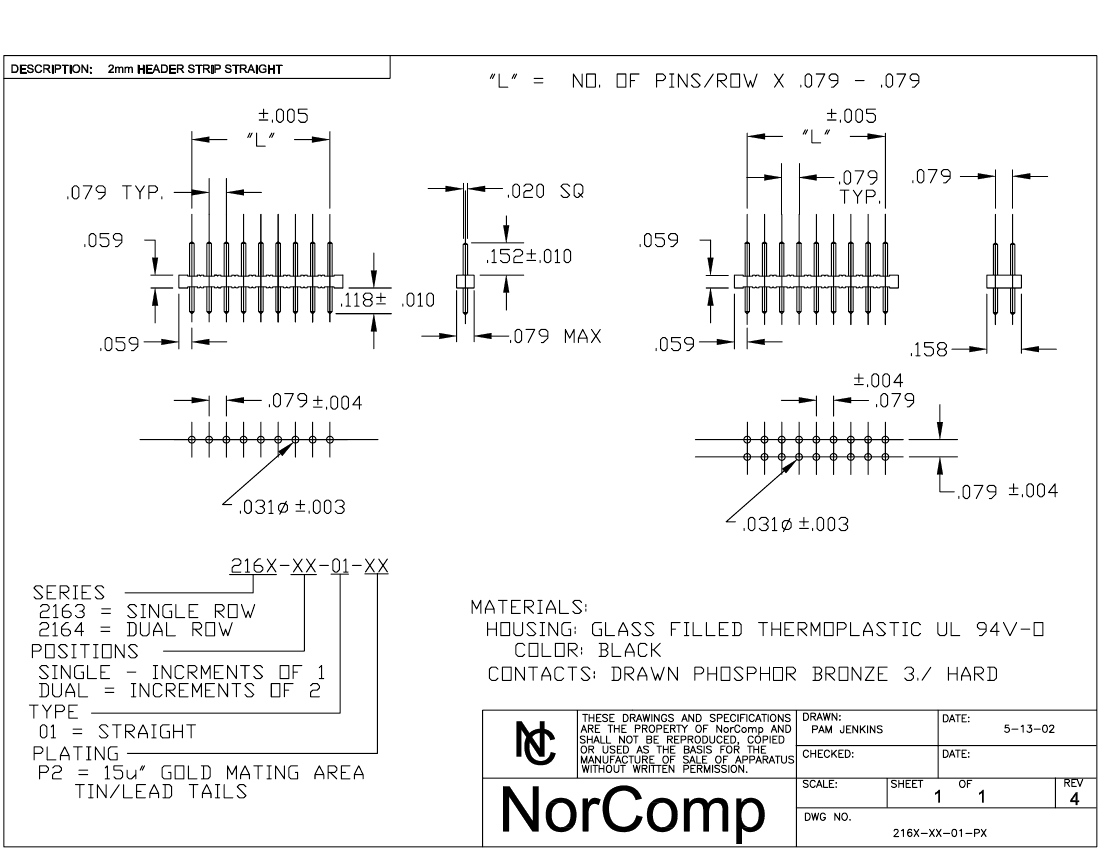

2164-66-01-P2: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

2164-66-01-P2 Overview

Board Connector, 66 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	301438485
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
Other features	NONE
body width	0.158 inch
subject depth	0.059 inch
body length	2.646 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Guideline	UL, CSA
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	66
