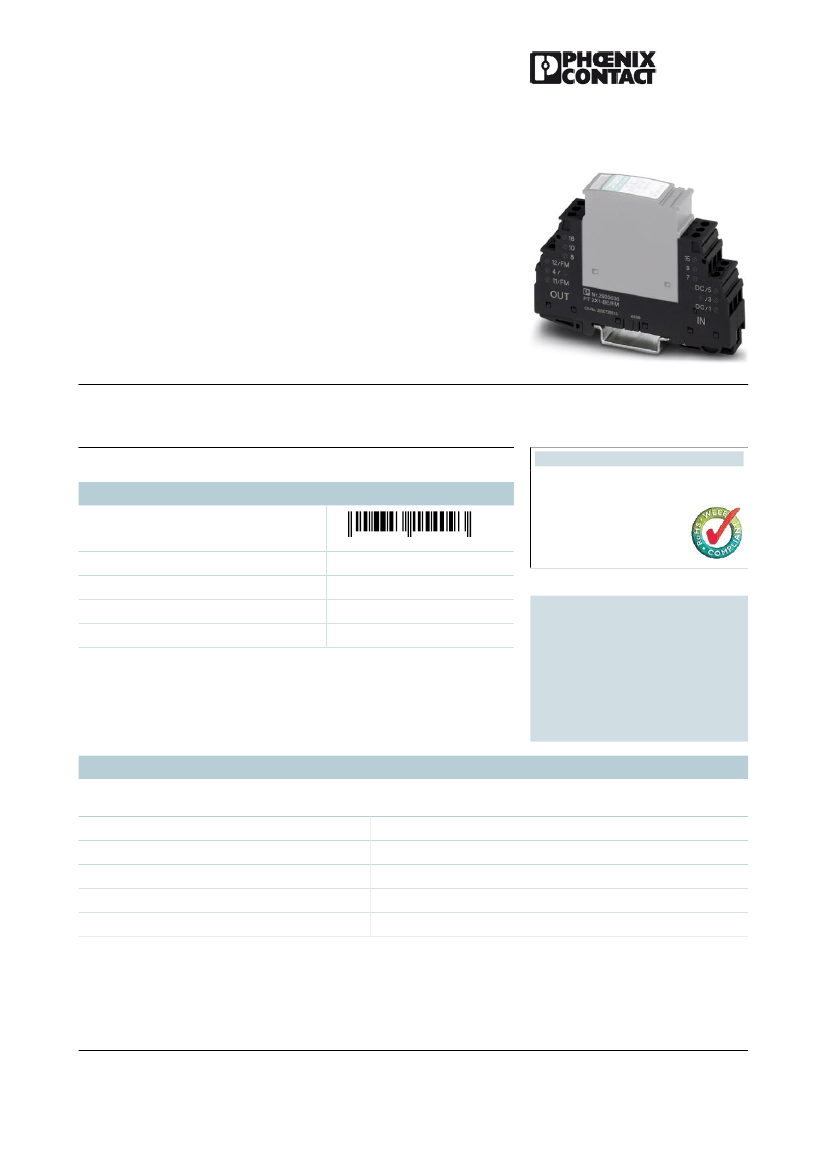

Extract from the online
catalog
PT 2X1-BE/FM
Order No.: 2920036
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2920036
Base element to accept a protective plug with diagnostic and status
indicator for two signal wires with common reference potential.
Product notes
Commercial data
GTIN (EAN)
4
046356
154093
WEEE/RoHS-compliant since:
01/01/2007
sales group
Pack
Customs tariff
Catalog page information
J210
10 pcs.
85369010
Page 85 (TT-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Inflammability class acc. to UL 94
Color
Ambient temperature (operation)
Mounting type
Design
V0
black
40 °C ... 85 °C
DIN rail: 35 mm
DIN rail module, two-section, divisible
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Feb 1, 2011
PT 2X1-BE/FM
Order No.: 2920036
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2920036
Degree of protection
Width
Height
Length
Pitch unit
Connection data
Type of connection
Connection type IN
Connection type OUT
Screw thread
Tightening torque
Stripping length
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Certificates / Approvals
IP20
17.70 mm
52.00 mm
89.80 mm
1 Div.
Screw connection
Screw terminal blocks
Screw terminal blocks
M3
0.8 Nm
8 mm
0.2 mm²
2.5 mm²
0.2 mm²
4 mm²
24
12
Certification
GOST, UL Listed
Accessories
Item
Marking
1051993
0811228
B-STIFT
X-PEN 0,35
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Feb 1, 2011
PT 2X1-BE/FM
Order No.: 2920036
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2920036
1050004
ZB 5 :UNBEDRUCKT
Zack strip, unprinted, 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, pack is sufficient for 100 terminal
blocks, for a terminal width of 5.2 mm, color: White
Zack marker strip, 10-section, printed horizontally: with
consecutive numbers, 1-10, 11-20 etc. up to 991-1000, color:
white
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Zack strip, unprinted, strips with 10 labels for individual labeling
with M-PEN or CMS system, for terminal block width: 5.8 mm,
color: White
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack strip, printed horizontally, strips with 10 labels, L1, L2, L3, N,
PE, L1, L2, L3, N, PE, color: white
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Zack strip, flat, unprinted: 10-section, for individual labeling with
M-PEN or ZBF-T, sufficient for 100 terminal blocks, color: white
2715212
ZB 5,8,LGS:FORTL.ZAHLEN
1050305
2715209
ZB 5,8:SO/CMS
ZB 5,8:UNBEDRUCKT
1050017
1050415
1050295
0808642
ZB 5,LGS:FORTL.ZAHLEN
ZB 5,LGS:L1-N,PE
ZB 5:SO/CMS
ZBF 5:UNBEDRUCKT
Additional products
Item
Assembly
2839295
2839512
SSA 3-6
SSA 5-10
shield fast connections for conductor diameter 3 - 6 mm. Potential
connection cable: 200 mm, black
Shield fast connection for conductor diameters 5 - 10 mm.
Potential connection cable: 200 mm, black
Designation
Description
Diagrams/Drawings
Dimensioned drawing
The figure shows the complete module consisting of a base
element and connector
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 4
Feb 1, 2011
