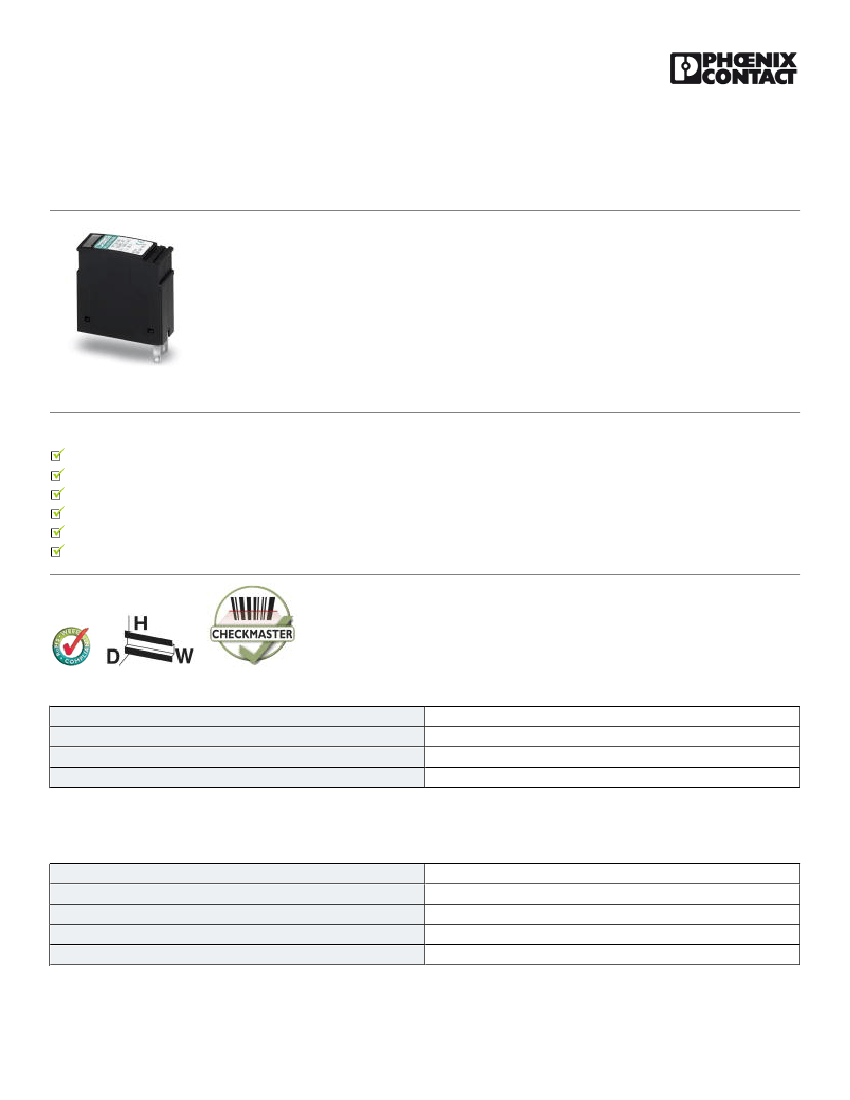

Surge protection plug - PT 2X1VA- 60AC-ST - 2839172
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Protective plug PT with protective circuit for higher signal voltages, 2-channel, visual fault warning. Nominal
voltage: 60 V AC
Illustration shows variant PT
2x1VA-230AC-ST
Product Features
Plugs can be checked with CHECKMASTER
Maximum ease of maintenance thanks to the two-piece design
Base element remains an integral part of the installation
Consistent plug-in signal circuit protection
Protective devices for use in telecommunications and signaling networks according to IEC 61643-21
Impedance-neutral disconnection of plug for test and maintenance purposes
Packing unit
1 pc
27.01 GRM
85363010
Germany
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Height
Width
Depth
Horizontal pitch
Complete module height
45 mm
17.7 mm
52 mm
1 Div.
90 mm
08/19/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/2839172
Surge protection plug - PT 2X1VA- 60AC-ST - 2839172
Technical data
Dimensions
Complete module width
Complete module depth
17.7 mm
65.5 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C
IP20
General
Housing material
Inflammability class according to UL 94
Color
Standards for air and creepage distances
Mounting type
Type
Direction of action
Arrester can be tested with CHECKMASTER from software version:
PA 6.6
V0
black
IEC 60664-1
On base element
DIN rail module, two-section, divisible
Line-Line & Line-Earth Ground
From SW rev. 1.00
Protective circuit
IEC test classification
C1
C2
C3
D1
Nominal voltage U
N
Maximum continuous voltage U
C
(wire-ground)
Nominal current I
N
Operating effective current I
C
at U
C
Residual current I
PE
Impulse discharge current (10/350)½µs, peak value l
imp
Output voltage limitation at 1 kV/µs (Core-Earth) spike
Enery absorption, asymmetrical
Voltage protection level U
P
(Core-Earth)
60 V AC
100 V DC
75 V AC (50/60 Hz)
26 A AC (30 °C)
3 A DC
≤ 1.5 mA (per path)
≤ 3 mA
500 A (per path)
≤ 200 V
40 J
≤ 300 V (C2 - 4 kV/2 kA)
≤ 220 V (C3 - 100 A)
≤ 250 V (C1 - 1.4 kV / 0.7 kA)
Response time tA (Core-Earth)
Input attenuation aE, asym.
Cut-off frequency fg (3 dB), asym. (GND) in 150 Ohm system
Capacity (Core-GND)
≤ 25 ns
typ. 0.3 dB (≤ 150 kHz / 150 Ω)
typ. 600 kHz
typ. 4 nF
08/19/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/2839172
Surge protection plug - PT 2X1VA- 60AC-ST - 2839172
Technical data
Protective circuit
Surge protection fault message
Max. required back-up fuse
Surge carrying capacity in acc. with IEC 61643-21 (Core-Earth)
Optical, remote indicator contact
25 A (gL/gG)
C1 (1,4 kV / 0,7 kA)
C2 (4 kV / 2 kA)
C3 (100 A)
D1 (500 A)
Connection data
Connection method
Connection type IN
Connection type OUT
Screw thread
Tightening torque
Stripping length
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Screw connection (in connection with the base element)
PLUGTRAB plug-in system
PLUGTRAB plug-in system
M3
0.8 Nm
8 mm
0.2 mm²
2.5 mm²
0.2 mm²
4 mm²
24
12
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140201
27130801
27130801
27130801
27130807
27130807
27130807
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000943
EC000943
EC000943
EC000943
08/19/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/2839172
Surge protection plug - PT 2X1VA- 60AC-ST - 2839172
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30212010
39121610
39121610
39121610
39121620
Approvals
Approvals
Approvals
GOST / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
GOST
UL Recognized
cUL Recognized
cULus Recognized
Drawings
08/19/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/2839172
Surge protection plug - PT 2X1VA- 60AC-ST - 2839172
Dimensioned drawing
44,8
17,5
1(+)
Circuit diagram
2(+)
J
3(-)
4(-)
42,2
51,7
IN
J
OUT
5(+)
J
6(+)
11
12
