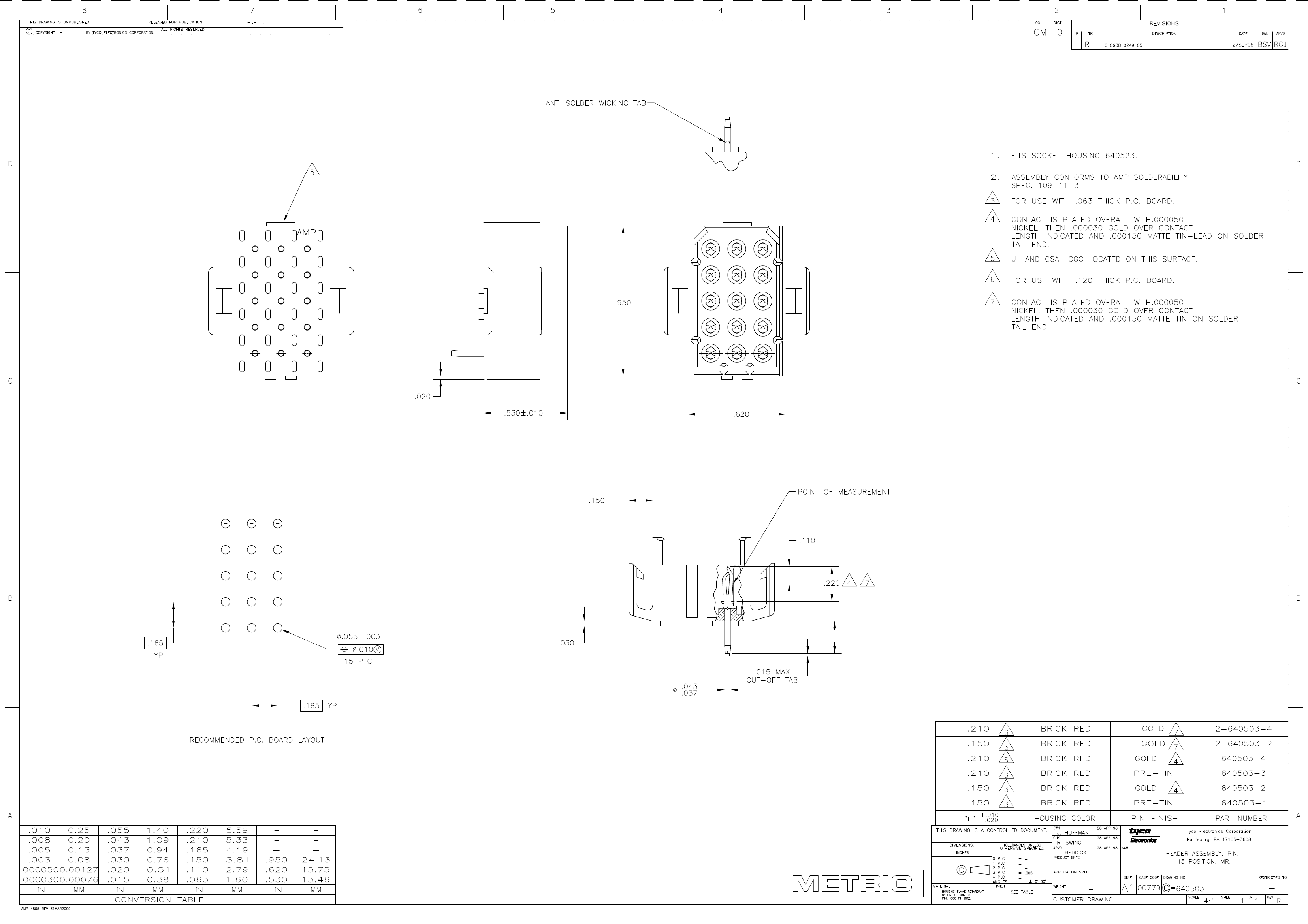

15P MR HDR ASSY VO RED LF
| Parameter Name | Attribute value |
| Connector type | with hood |
| Housing type | female end, female end |
| Connector System | wire to board |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Terminal type | Pin |
| Number of columns | 3 |
| Number of Positions | 15 |
| PCB mounting direction | vertical |
| Rows | 5 |
| Line spacing | 4.19 mm [ .1649 in ] |
| Operating voltage (VAC) | 250 |
| Contact Current Rating (Max) (A) | 9 |
| Plating thickness of terminal termination area | .76 µm [ 30 µin ] |
| Base plate material thickness | 1.27 µm [ 50 µin ] |
| Terminal layout | Direct plug-in |
| Cable size (AWG) | 26 – 18 |
| PCB Termination Methods | Through Hole - Solder |
| Termination post and tail length | 1.53 mm [ .06 in ] |
| PCB installation and fixation | Without |
| PCB mounting alignment | Without |
| joint alignment | with |
| Joint alignment type | polarization |
| Joint fixation type | Positive Lock |
| joint fixation | with |
| Centerline (Pitch) | 4.2 mm [ .1649 in ] |
| UL fire rating | UL 94V-0 |
| Shell color | red |
| Shell material | NylonGF |
| length | 24.13 mm [ .9807 in ] |
| high | 13.46 mm [ .53 in ] |
| width | 19.94 mm [ .785 in ] |
| PCB thickness (recommended) | 1.57 mm [ .062 in ] |
| Wire insulation diameter range (mm) | 2.92 |
| Circuit Application | Power and Signal |
| Tested by VDE | no |
| CSA file number | LR7189 |
| UL rating | Recognized |
| Agencies/Standards | CSA, UL |
| Organization/Standard Number | E28476 |
| Encapsulation method | bag |
| 2-640503-4 | 640503-1 | 640503-4 | 2-640503-2 | |
|---|---|---|---|---|
| Description | 15P MR HDR ASSY VO RED LF | 15P MR HDR ASSY V0 RED | 15P MR HDR ASSY V0 RED | 15P MR HDR ASSY VO RED LF |
| Connector type | with hood | COMBINATION LINE CONNECTOR | COMBINATION LINE CONNECTOR | COMBINATION LINE CONNECTOR |
| Shell material | NylonGF | NYLON | NYLON | NYLON |
| Brand Name | - | AMP | AMP | TE Connectivity |
| Is it Rohs certified? | - | conform to | incompatible | conform to |
| Reach Compliance Code | - | not_compliant | not_compliant | not_compliant |
| Factory Lead Time | - | 16 weeks | 3 weeks | 9 weeks |
| body width | - | 0.95 inch | 0.95 inch | 0.95 inch |
| subject depth | - | 0.53 inch | 0.53 inch | 0.53 inch |
| body length | - | 0.62 inch | 0.62 inch | 0.62 inch |
| Contact to complete cooperation | - | NOT SPECIFIED | GOLD (30) OVER NICKEL | NOT SPECIFIED |
| Contact point gender | - | MALE | MALE | MALE |
| Contact material | - | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| DIN compliance | - | NO | NO | NO |
| empty shell | - | NO | NO | NO |
| Filter function | - | NO | NO | NO |
| IEC compliance | - | NO | NO | NO |
| MIL compliance | - | NO | NO | NO |
| Plug information | - | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | - | NO | NO | NO |
| Installation type | - | BOARD | BOARD | BOARD |
| Number of rows loaded | - | 5 | 5 | 5 |
| Options | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Rated current (signal) | - | 9 A | 9 A | 9 A |
| Termination type | - | SOLDER | SOLDER | SOLDER |
| Total number of contacts | - | 15 | 15 | 15 |
| UL Flammability Code | - | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | - | 1 | 1 | 1 |
