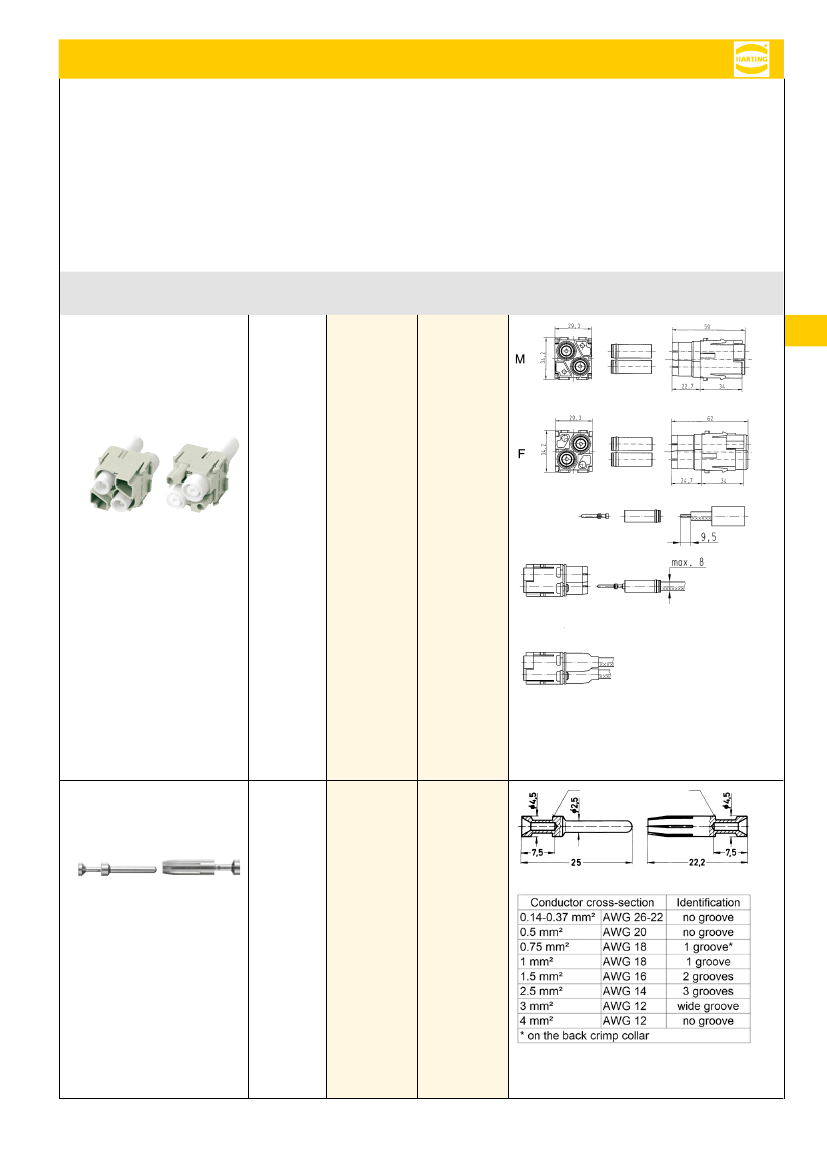

Han
®
HV module
Number of contacts
2
16 A 2.900/5.000 V 15 kV 3
Identification
Conductor
cross-section
(mm²)
Part number
Male
Female
Drawing
(dimensions in mm)
Han-Modular
®
,
Han
®
HV module,
for Han E
®
crimp contacts,
Crimp termination,
Pack contents:
1 module,
2 locking sleeves,
2 heat shrink tubes
0,5 ... 4
09 14 002 3021 09 14 002 3121
Modu-
lar
Assembly instructions
Please order crimp contacts
separately.
ATTENTION! Stripping length 9.5 mm
Crimp with crimping tool 09 99 000 0888
Snap crimped cable in the insert.
Shrink the heat shrink tube over the rear of
contact.
Han E
®
,
Crimp contact,
Contact surface:
Silver plated
0,5
0,75
1
1,5
2,5
3
4
09 33 000 6121
09 33 000 6114
09 33 000 6105
09 33 000 6104
09 33 000 6102
09 33 000 6106
09 33 000 6107
09 33 000 6220
09 33 000 6214
09 33 000 6205
09 33 000 6204
09 33 000 6202
09 33 000 6206
09 33 000 6207
Stripping length 7.5 mm
