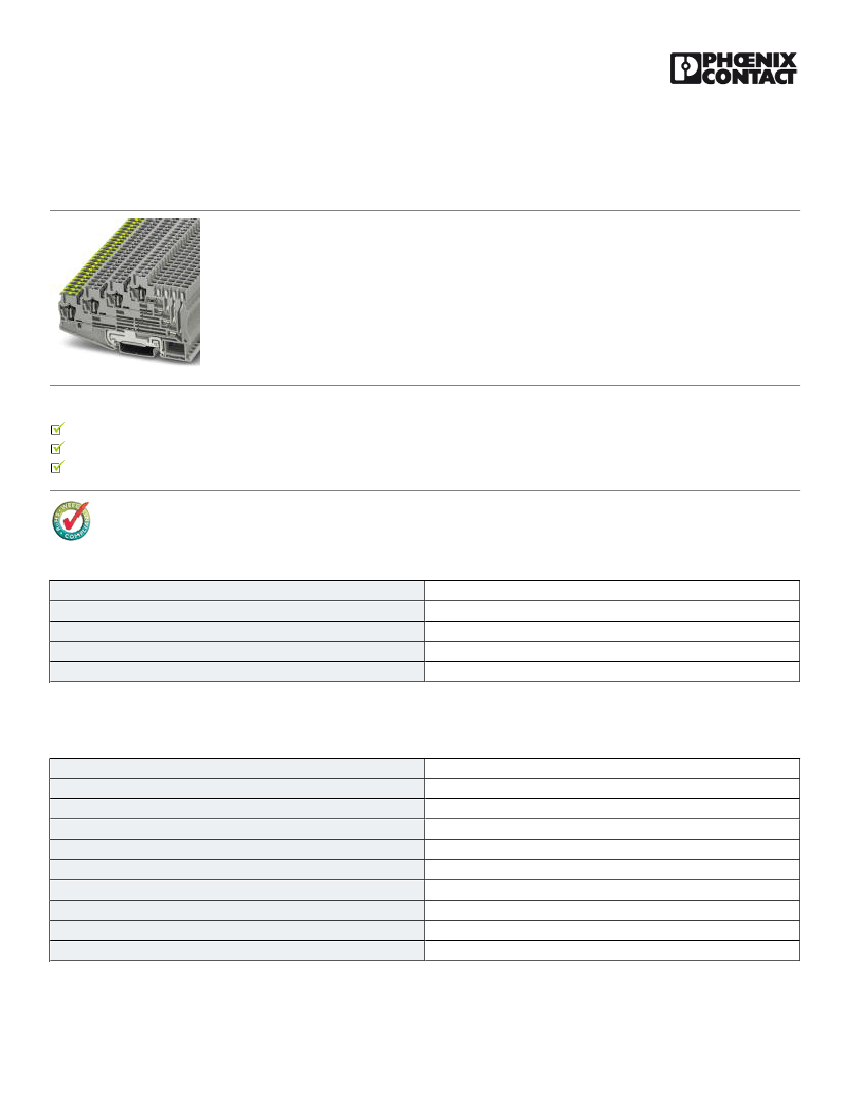

Multi-level terminal block - ST 2,5-PE/3L/1P - 3041969
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Multi-level terminal block, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Connection type: Spring-cage/plug-in
connection, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Product Features
Can be labeled at each terminal point
Design width of just 5.2 mm
Four feed-through levels
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
50 1
24.0 GRM
85369010
Germany
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
4
5
gray
PA
V0
4 kV
3
III
I
IEC 61984
19.11.2013 Page 1 / 23
https://www.phoenixcontact.com/us/products/3041969
Multi-level terminal block - ST 2,5-PE/3L/1P - 3041969
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
10 A
250 V
ja
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
5.2 mm
101 mm
59 mm
66.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
4 mm²
0.08 mm²
2.5 mm²
28
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Minimum stripping length
Maximum stripping length
Internal cylindrical gage
Spring-cage/plug-in connection
8 mm
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141117
27141117
27141120
27141120
27141120
27141120
27141120
19.11.2013 Page 2 / 23
https://www.phoenixcontact.com/us/products/3041969
Multi-level terminal block - ST 2,5-PE/3L/1P - 3041969
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
28-12
10 A
300 V
B
28-12
19.11.2013 Page 3 / 23
https://www.phoenixcontact.com/us/products/3041969
Multi-level terminal block - ST 2,5-PE/3L/1P - 3041969
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
10 A
300 V
D
28-12
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
10 A
300 V
D
28-12
10 A
300 V
GOST
cULus Recognized
Accessories
Accessories
Bridge
Plug-in bridge - FBS 2-5 - 3030161
Plug-in bridge, Number of positions: 2, Color: red
19.11.2013 Page 4 / 23
https://www.phoenixcontact.com/us/products/3041969
Multi-level terminal block - ST 2,5-PE/3L/1P - 3041969
Accessories
Plug-in bridge - FBS 3-5 - 3030174
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-5 - 3030187
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-5 - 3030190
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-5 - 3030213
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge - FBS 20-5 - 3030226
Plug-in bridge, Number of positions: 20, Color: red
19.11.2013 Page 5 / 23
