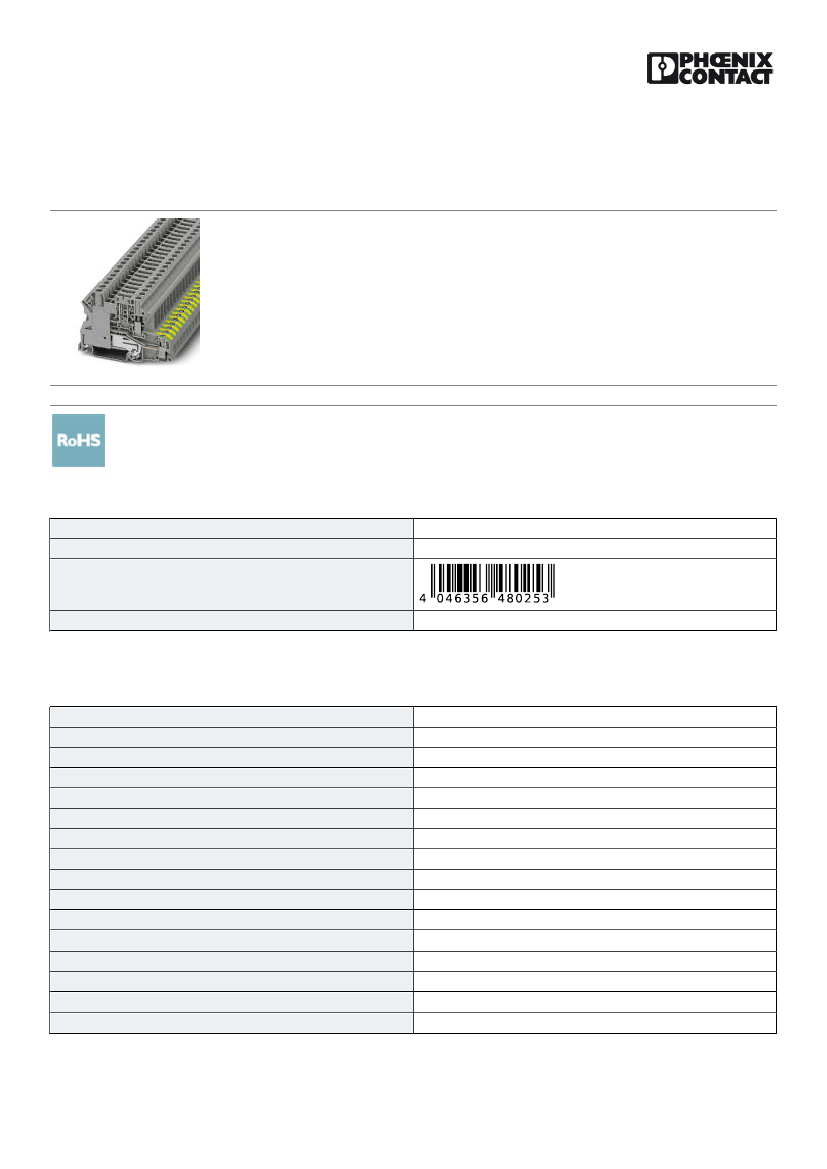

Ground modular terminal block - UT 4-PE/TG - 3070024
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw
connection, cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, length: 70.8 mm, width: 6.2 mm, color: gray,
mounting: NS 35/7,5, NS 35/15, nom. voltage: 500 V
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356480253
50 pc
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
1
2
4 mm²
gray
PA
V0
6 kV
3
III
I
IEC 60947-7-1/IEC 60947-7-2
20 A
20 A (with 6 mm² conductor cross section)
20 A (with 6 mm² conductor cross section)
500 V
No
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3070024
Ground modular terminal block - UT 4-PE/TG - 3070024
Technical data
General
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
70.8 mm
47.5 mm
55 mm
Connection data
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Please observe the current carrying capacity of the DIN rails.
0.14 mm²
6 mm²
0.14 mm²
6 mm²
26
10
0.14 mm²
0.14 mm²
4 mm²
Screw connection
9 mm
A4
M3
0.6 Nm
0.8 Nm
11/11/2018 Page 2 / 4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
https://www.phoenixcontact.com/pi/products/3070024
Ground modular terminal block - UT 4-PE/TG - 3070024
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-1/IEC 60947-7-2
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / EAC
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
16 A
26-10
http://www.csagroup.org/services-industries/product-listing/
C
600 V
16 A
26-10
13631
11/11/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/3070024
Ground modular terminal block - UT 4-PE/TG - 3070024
Approvals
EAC
RU C-
DE.A*30.B.01742
Phoenix Contact 2018 © - all rights reserved
