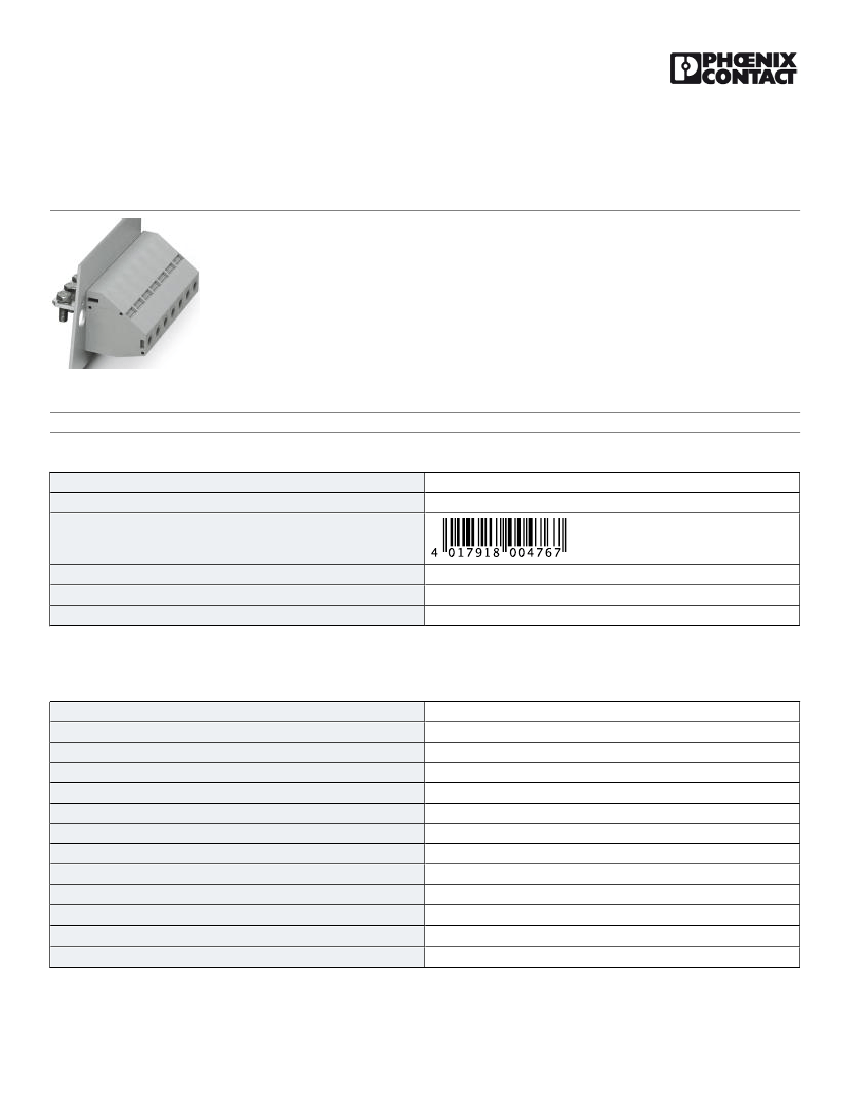

Panel feed-through terminal block - HDFKV 50-VP GNYE - 0708797
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Panel feed-through terminal block, Connection method: Screw connection, Screw connection, Load current : 150
A, Cross section: 16 mm² - 50 mm², AWG 6 - 1/0, Width: 18.8 mm, Color: green-yellow
The illustration shows version
HDFKV 50-VP in gray
Key commercial data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
99.04 GRM
85369010
Greece
11
10 1
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Number of positions
1
2
green-yellow
PA
V0
8 kV
3
III
I
IEC 60947-7-1
150 A
690 V
1
18.11.2013 Page 1 / 5
https://www.phoenixcontact.com/us/products/0708797
Panel feed-through terminal block - HDFKV 50-VP GNYE - 0708797
Technical data
Dimensions
Width
18.8 mm
Connection data
Note
Connection side
Connection method
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Terminal sleeve
Level 1 ext. 1
Screw connection
Note: Product releases, connection cross sections and notes on
connecting aluminum cables can be found in the download area.
16 mm²
50 mm²
16 mm²
50 mm²
6
1/0
10 mm²
50 mm²
10 mm²
50 mm²
6 mm²
16 mm²
10 mm²
16 mm²
6 mm²
16 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
6 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
10 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Connection side
Connection method
Screw thread
Tightening torque, min
24 mm
B10
M6
6 Nm
8 Nm
Level 1 int. 1
Screw connection
M8
12 Nm
18.11.2013 Page 2 / 5
