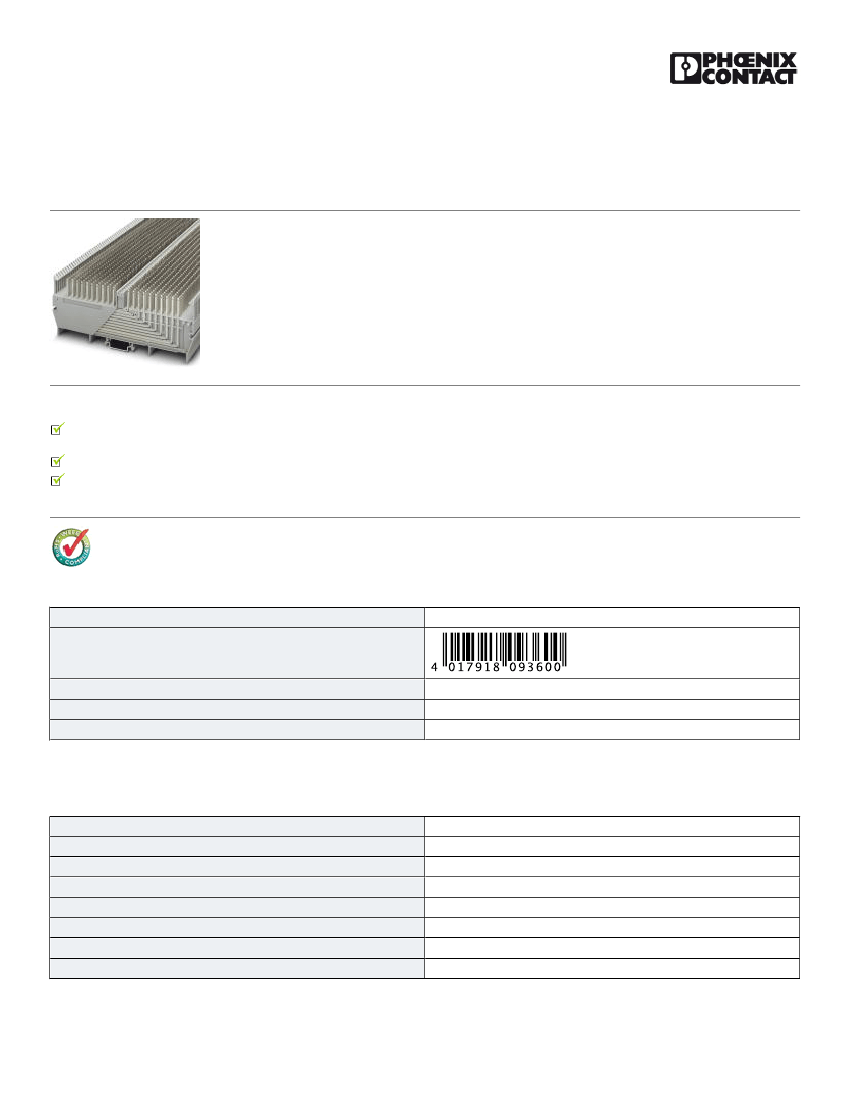

Marshalling panel - RVS 10-TP(2,4X0,8)L - 3192038
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshalling panel, Nom. voltage: 250 V, Nominal current: 5 A, Cross section: 0.22 mm² - 0.56 mm²,
AWG: 20 - 24, Connection type: TERMI-POINT, Width: 6.2 mm, Length: 202 mm, Color: gray, Assembly: NS
35/7,5, NS 35/15
Product Features
The red-white marking masks with alternating negative/positive 1 ‑ 10 or a ‑ k labeling clearly distinguish the rows of pins and make the process of
connecting and finding specific connections much easier
The external housing ridges act as a cable duct side panel, such that good cable routing is ensured and standard cable duct covers can be used
rib
The RVS 10 element has ten 2.4 x 0.8 mm TERMI-POINT (TP) pins for the incoming and outgoing conductors on both sides of the raised labeling
®
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
68.64 g
85369010
Poland
1 pc
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Pollution degree
Overvoltage category
1
20
gray
PA
V2
4 kV
3
III
12/15/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/3192038
Marshalling panel - RVS 10-TP(2,4X0,8)L - 3192038
Technical data
General
Insulating material group
Nominal current I
N
Max. load current
Nominal voltage U
N
Open side panel
Number of positions
I
5A
5A
250 V
nein
1
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
202 mm
81.5 mm
89 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Connection method
TERMI-POINT pin dimensions
Position of the TERMI-POINT pin
0.22 mm²
0.56 mm²
0.22 mm²
0.56 mm²
24
20
TERMI-POINT
2.4 x 0.8 mm
vertical
®
Standards and Regulations
Flammability rating according to UL 94
V2
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141124
27141124
27141124
27141124
27141124
27141124
27141120
12/15/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/3192038
Marshalling panel - RVS 10-TP(2,4X0,8)L - 3192038
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approvals submitted
Approval details
EAC
Drawings
12/15/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/3192038
Marshalling panel - RVS 10-TP(2,4X0,8)L - 3192038
Functional drawing
Dimensional drawing
202
7,62
138,5
81,5
1
2
3
4
5
6
7
8
26
