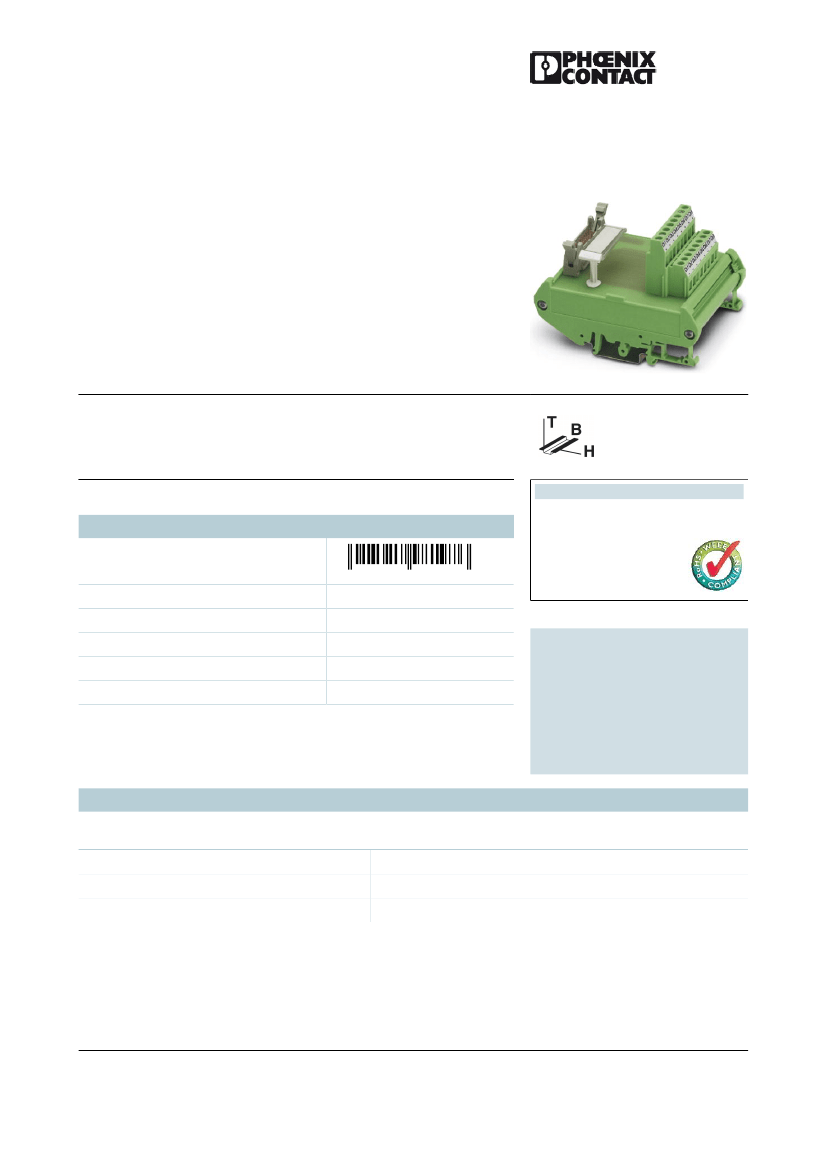

Extract from the online
catalog
FLKM 16/DV
Order No.: 2304432
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2304432
Interface module with 1:1 connection (suitable for Delta V control
system)
Product notes
Commercial data
GTIN (EAN)
4
017918
981976
WEEE/RoHS-compliant since:
03/31/2006
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
I631
1 pcs.
85369010
Page 198 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Nominal voltage U
N
< 50 V AC
60 V DC
Max. current carrying capacity per branch
1 A (per signal path)
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Feb 4, 2011
FLKM 16/DV
Order No.: 2304432
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2304432
Number of positions
Width
Height
Depth
Status display
Ambient temperature (operation)
Ambient temperature (storage/transport)
Test voltage
Test voltage contact/contact
Mounting position
Assembly instructions
Standards/regulations
16
45 mm
90 mm
68 mm
No
-20 °C ... 50 °C
-20 °C ... 70 °C
500 V (50 Hz, 1 min.)
500 V AC
Any
In rows with zero spacing
IEC 60664
DIN EN 50178
IEC 62103
Pollution degree
Surge voltage category
Input operating voltage
Max. current carrying capacity per branch
Connection data
Connection 1
Connection in acc. with standard
Type of connection
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Screw thread
Connection 2
Type of connection
Number of positions
2
III
max. 50 V AC/DC
1A
Field level
IEC / EN
Screw connection
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
M3
Control system level
Flat-ribbon cable plug connector in acc. with IEC 60603-13
16
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Feb 4, 2011
FLKM 16/DV
Order No.: 2304432
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2304432
Accessories
Item
Designation
Description
Cable/conductor
2299291
2299301
2299314
2299327
2299330
2299343
2299369
2299372
2295059
FLK 16/EZ-DR/ 50/KONFEK
FLK 16/EZ-DR/ 100/KONFEK
FLK 16/EZ-DR/ 150/KONFEK
FLK 16/EZ-DR/ 200/KONFEK
FLK 16/EZ-DR/ 300/KONFEK
FLK 16/EZ-DR/ 400/KONFEK
FLK 16/EZ-DR/ 800/KONFEK
FLK 16/EZ-DR/1000/KONFEK
FLK EZ-DR.../.../...
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 0.5 m
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 1 m
Round cable set, with two 16-pos. socket strips, (1:1 connection),
cable length: 1.5 m
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 2 m
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 3 m
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 4 m
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 8 m
Round cable set, with two 16-pos. socket strips (1:1 connection),
cable length: 10 m
Round cable, with preassembly, not shielded, variable cable
length
Diagrams/Drawings
Circuit diagram
FLKM 16/DV connection scheme
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 4
Feb 4, 2011
FLKM 16/DV
Order No.: 2304432
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2304432
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 4
Feb 4, 2011
