MS type Lower Profile Plug

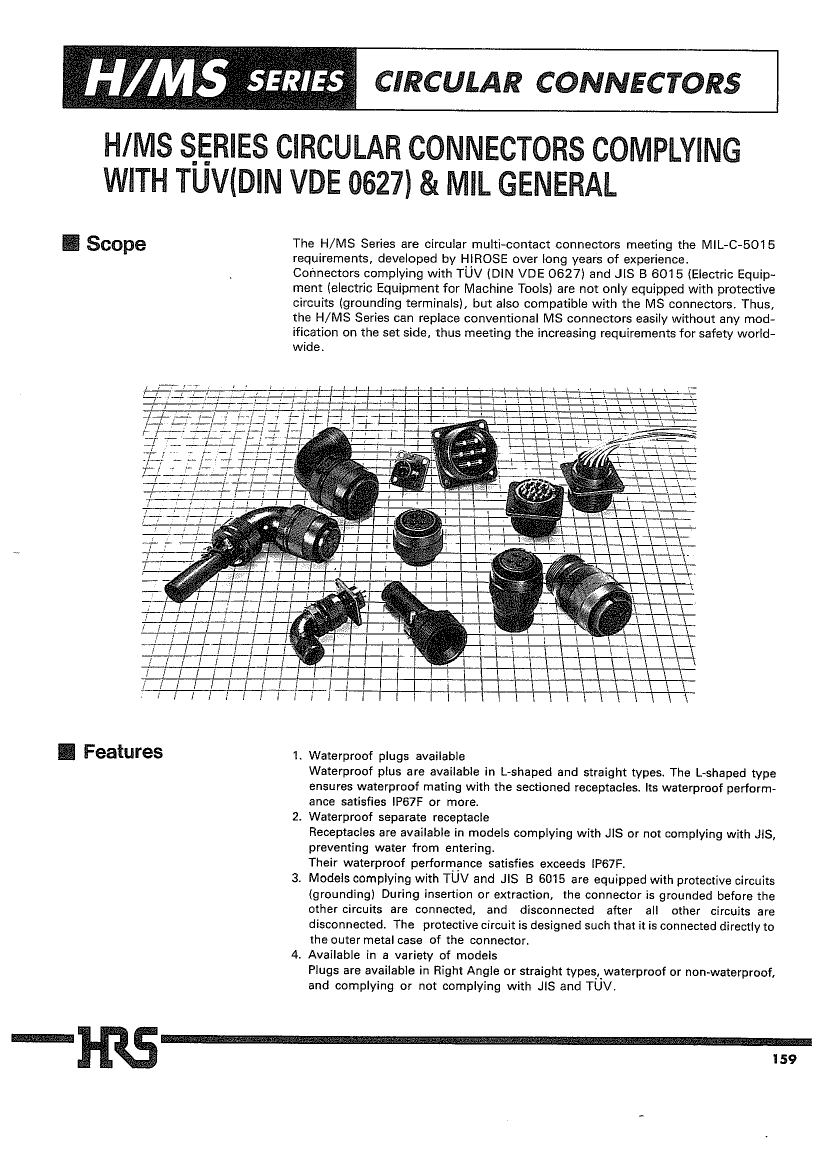

H/MS Series
Circular connector conforming to MIL-C-5015
PAT.P

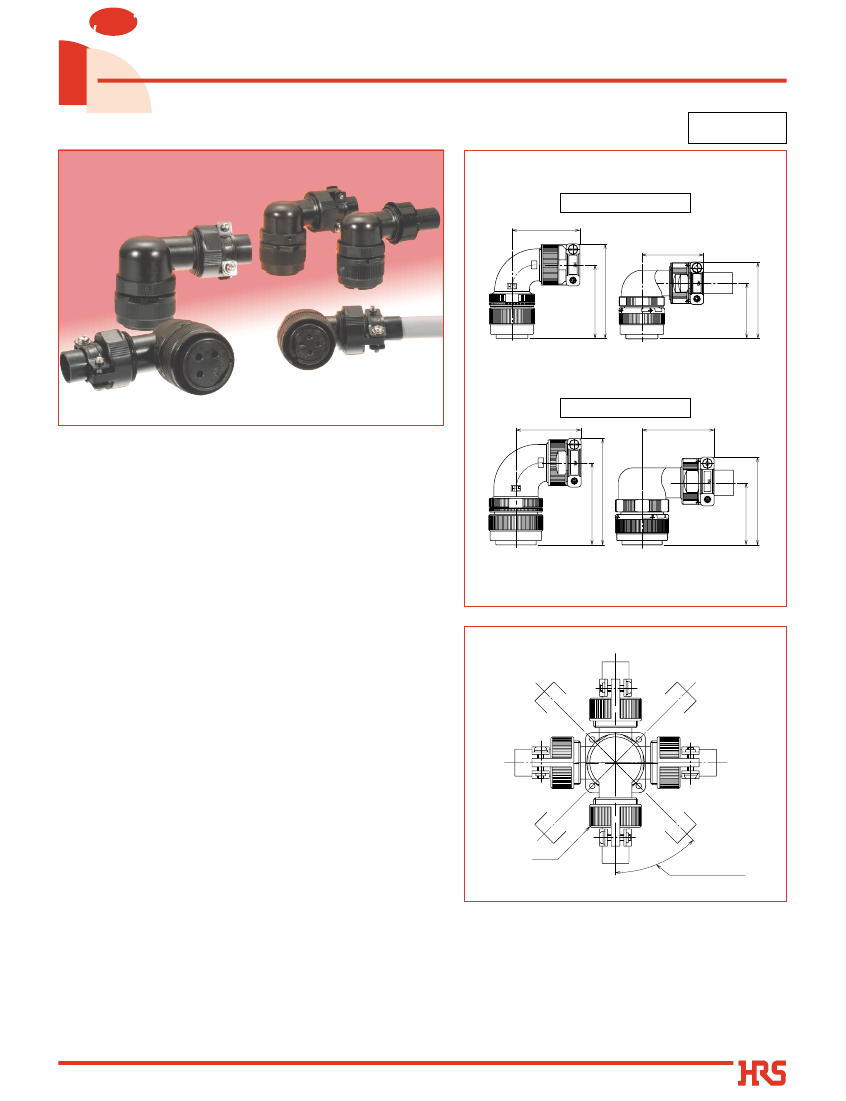

Connector Height Comparison
18-10 Size
50.1mm
45.5mm
3057-10
70mm
54.5mm
Existing MS Connector
Lower-profile Plug
22-22 Size
48.2mm
53.2mm
s
Features
1. 20% Height Reduction
When compared with existing H/MS Series connectors
the overall height of plug assemblies is lower, allowing it
to be used in space constrained applications.
78.7mm
41mm
3057-12
60.7mm
2. Cable Exit in 360° Directions
The cable can exit in any of the 8 fixed direction, in 45°
increments.
Existing MS Connector
Lower-profile Plug
3. Simple Assembly
The 2-piece design consisting of the contact/insulator
assembly and the back-shell assembly allows termination
without the use of any specialized tools.
Cable Exit Direction of 360°
4. Water and Dust Protection
IP 67 rating when fully terminated and mated with
corresponding part.
5. TUV Certification
Provided with a protective circuit function for TUV
certification. The (D) pin is directly connected to the
motors, and a wide variety of industrial and measuring
instruments.
Plug
°
(45
)
Can be changed
in 45 degree increments
45.8mm
63.8mm
56.5mm
18
22
3057-10
3057-12
2004.6
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Voltage rating
250VAC, 250V DC (pollution degree: 3, overvoltage category:
3)
500V AC, 500V DC (pollution degree: 2, overvoltage category:
2)
Current rating
23A Max. (18-10 size)
46A Max. (22-22 size)
Operating temperature range
-25ç to +125ç
Storage temperature range
-25ç to +125ç
Rating
Item
Specification
18-10 size
22-22 size
Conditions
1A DC
500 V DC
2250V AC/one minute.
Frequency: 10 to 500 Hz, single amplitude of 0.75 mm,
acceleration of 98 m/s
2
for 3 hours in 3 axis.
Acceleration of 490 m/s
2
, 11ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis.
1. Contact resistance
3 m ohms max.
1 m ohms max.
2. Insulation resistance 5000 M ohms min.
3. Withstanding voltage No flashover or insulation breakdown.
4. Vibration
No electrical discontinuity for 10 ms max.
5. Shock
Contact resistance:
Contact resistance:
6. Durability
500 cycles
(insertion/ withdrawal)
4.5 m ohms max.
1.5 m ohms max.
Temperature: -55ç
➝
Room temperature to +125ç
➝
Room
7. Temperature cycle
temperature Time: 30
➝
10 to 15
➝
30
➝
10 to 15 (Minutes)
Insulation resistance: 5000 M ohms min.
5 cycles.
Insulation resistance: 50 M ohms min. (Humidity state)
8. Humidity
96 hours at temperature of 71ç and humidity of 95% .
500 M ohms min. (Dry state)
9. Water/dust
No dust penetration.
When mated with corresponding connector.
No water penetration when submerged for 0.5 hour at the depth of 1 meter.
protection
sMaterials
Item
Body
Insulator
Socket Contacts
Gasket
Bushing
Material
Aluminum alloy
PPS
Copper alloy
Silicone Rubber
Chloroprene rubber
Finish
Black chromate
Color: Black
Silver plating
Color: Black
Color: Black
Remarks
-------------------
UL94V-0
-------------------
-------------------
-------------------
s
Additional Product Information
1. Product number suffixes
(10) Supplied with a wire hole in the locking ring (to prevent loosening of the ring).
(11) Supplied without the wire hole in the locking ring.
2. Corresponding receptacles.
18-10 Size: Part number H/MS3102A18-10P-D-T1(10)
22-22 Size: Part number H/MS3102A22-22P-D-T(10)
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

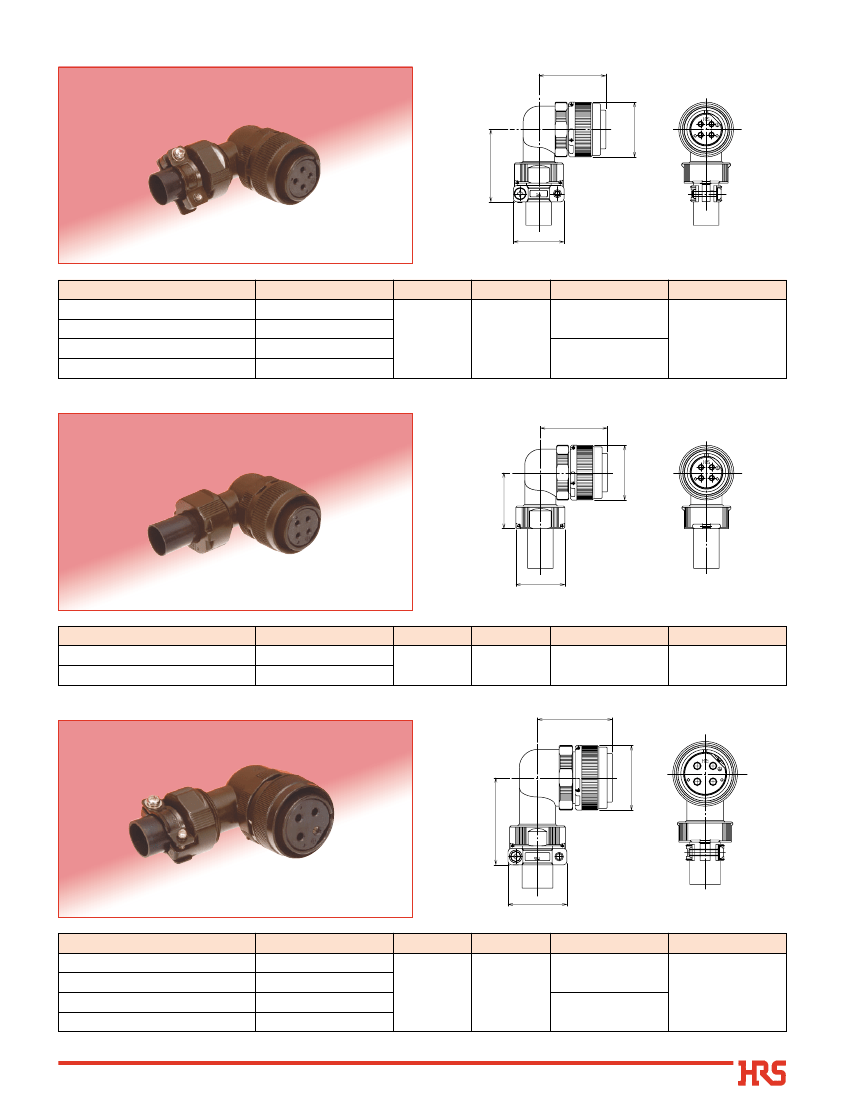

sPlug
H/MS08A18-10S-DT10D(10)
41
A
Ø33.5
D
B
18-10S
C
X
45.5
Part Number
H/MS08A18-10S-DT10D(10)
H/MS08A18-10S-DT10D(11)
H/MS08A18-10S-DT10D1(10)
H/MS08A18-10S-DT10D1(11)
CL No.
120-0476-3-10
120-0476-3-11
120-0481-3-10
120-0481-3-10
Number of Contacts
Weight
4
89g
Ø10~Ø12.5mm
H/MS08A18-10S-DT10C(10)
Ø33.5
35.5
Part Number
H/MS08A18-10S-DT10C(10)
H/MS08A18-10S-DT10C(11)
CL No.
120-0480-0-10
120-0480-0-11
Number of Contacts
4
Weight
77.6g
H/MS08A22-22S-DT12D(10)
A
D
Ø39.5
53.2
Part Number
H/MS08A22-22S-DT12D(10)
H/MS08A22-22S-DT12D(11)
H/MS08A22-22S-DT12D1(10)
H/MS08A22-22S-DT12D1(11)
CL No.
120-0477-6-10
120-0477-6-11
120-0482-6-10
120-0482-6-11
Number of Contacts
Weight
4
127g
Ø10~Ø13.5mm
3057-10
31
Shown one type.
Applicable Cable Diameter Contact solder pot inner diameter
Ø12~Ø14.3mm
2.5mm
41
A
D
B
18-10S
C
X
Ø30
Shown one type.
Applicable Cable Diameter Contact solder pot inner diameter
Ø13~Ø14.3mm
2.5mm
45.8
22-22S
X
B
C
3057-12
36
Shown one type.
Applicable Cable Diameter Contact solder pot inner diameter
Ø13~Ø15.9mm
4.5mm
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
B

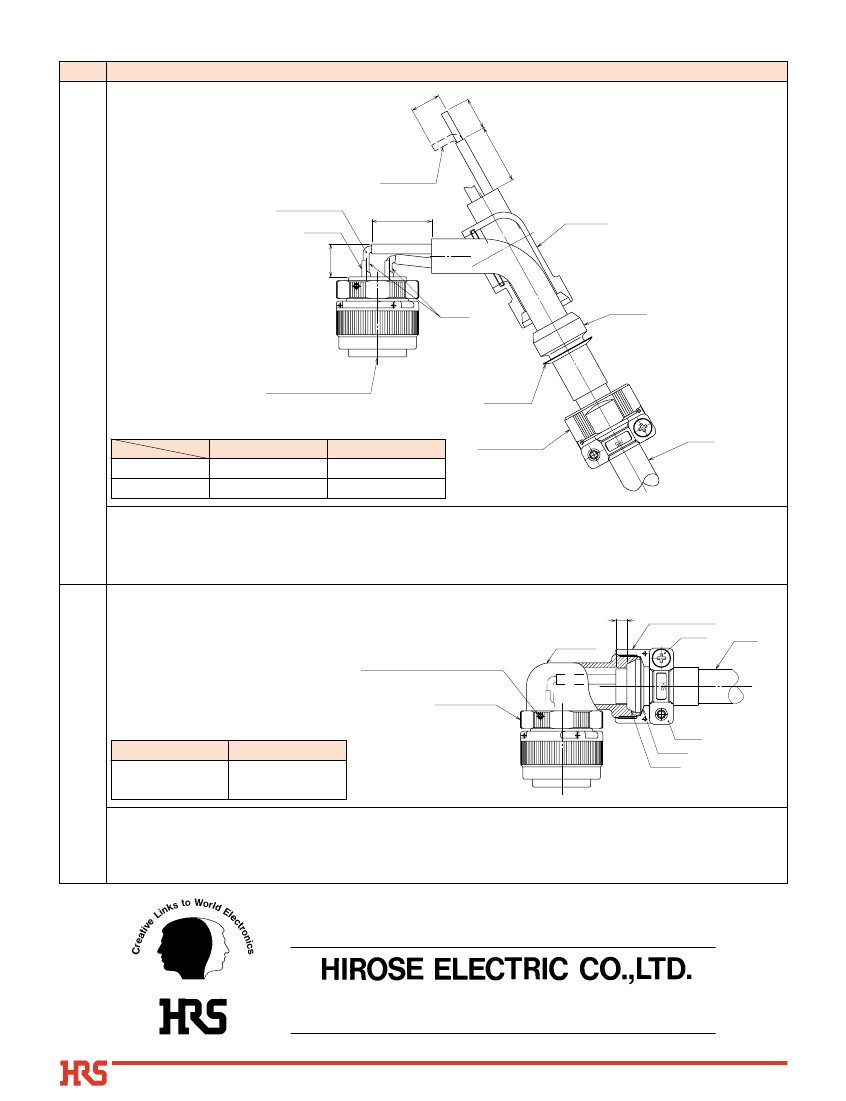

Assembly Procedures
