B065-0031-116-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B065-0031-116-Z

B065-0031-116-Z: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size227KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B065-0031-116-Z Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

B065-0031-116-Z Parametric

Parameter Name	Attribute value
Number of connectors	ONE
Plating thickness	FLASH inch
Contact completed and terminated	TIN
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Mixed contacts	NO
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
ECCN code	EAR99
Is Samacsys	N
Objectid	304395493
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Terminal pitch	2.54 mm
Other features	ROHS COMPLIANT
Contact to complete cooperation	AU
insulator material	GLASS FILLED POLYESTER
Installation method	STRAIGHT
Installation type	BOARD
Total number of contacts	3
Contact resistance	20 mΩ
Rated current (signal)	3 A
Body/casing type	RECEPTACLE
Contact point gender	FEMALE
PCB row number	1
Number of rows loaded	1
body width	0.094 inch
subject depth	0.435 inch
body length	0.32 inch
Terminal length	0.091 inch

Preview

Download Datasheet

View All

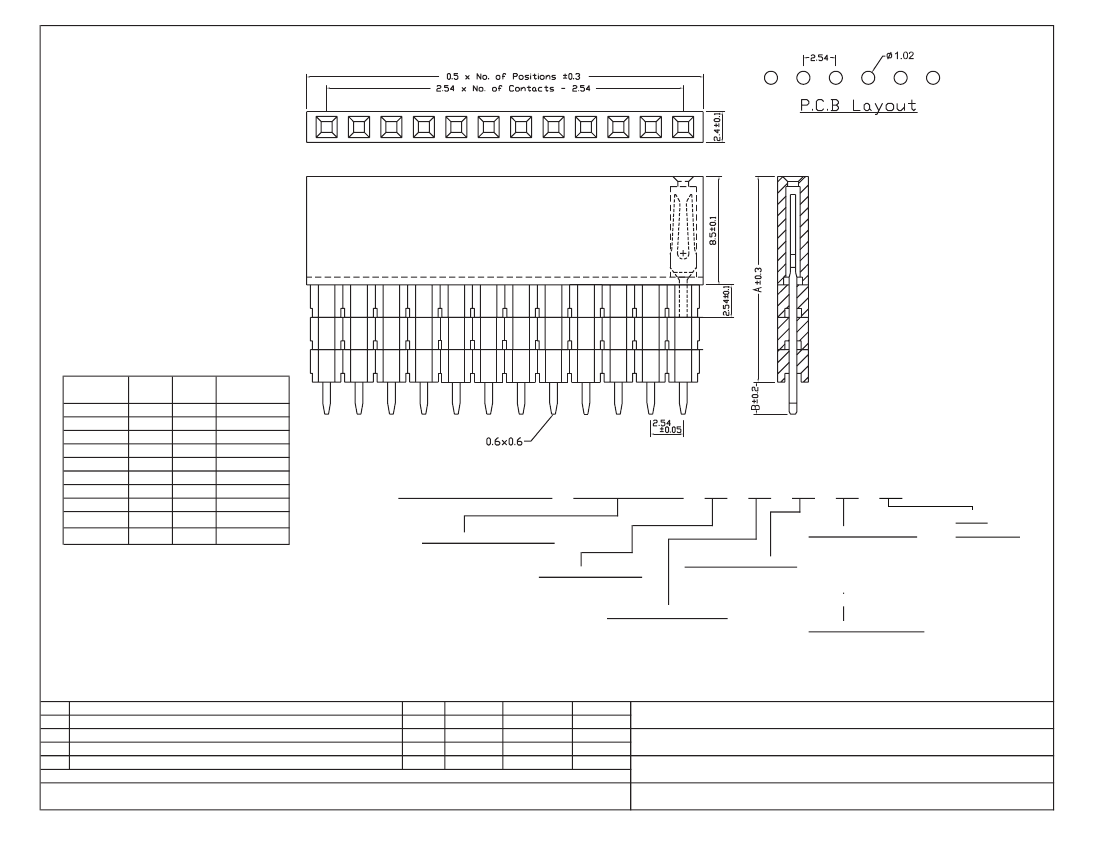

DIMENSION(mm)

DIMENSION

NUMBER

11.05

13.59

16.13

18.67

11.05

16.13

2.30

7.35

12.20

4.85

9.65

2.30

7.10

4.60

2.90

3.50

NUMBER

OF STACKS

NOTE:

4 STACK PART SHOWN

HOW TO ORDER:

ELECTRICAL:

CURRENT RATING: 3A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 5000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

CONTACT: PHOSPHOR BRONZE

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

RoHS

COMPLIANT

PLATING OVERALL:

NUMBER OF CONTACTS:

0 - FULL TIN

DOUBLE 002 thru 040

DIMENSION NUMBER:

1 - FULL Au FLASH

NUMBER OF ROWS:

3 - 10u" Au

SEE DIMENSION

1 - SINGLE ROW

4 - 15u" Au

NUMBER TABLE

5 - 30u" Au

NUMBER OF STACKS:

SELECTIVE PLATING:

0 - RIGHT ANGLE

6 - Au FLASH CONTACT AREA/TIN TAIL

1 - ONE

7 - 10u" Au CONTACT AREA/TIN TAIL

2 - TWO

8 - 15u" Au CONTACT AREA/TIN TAIL

3 - THREE

9 - 30u" Au CONTACT AREA/TIN TAIL

4 - FOUR

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Date

Appproved

S.M.

11/04/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

Elevated Stacked Receptacle Assembly, 2.54mm Pitch, Single Row, Thru Hole

Top Entry,(11.05mm - 18.67mm Stacking Height)

ANGLE +/-

UNIT: mm

P/N: B065-0XX1-XXX-Z

Pg: 1
