M85049/49-2-24W datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> M85049/49-2-24W

M85049/49-2-24W: Descriptioncircular mil spec strain reliefs & adapters backshell W/ strain relief; CategoryThe connector Connector bracket; File Size160KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/49-2-24W Overview

circular mil spec strain reliefs & adapters backshell W/ strain relief

M85049/49-2-24W Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	8 weeks
Related military specifications	MIL-DTL-27599, MIL-DTL-38999
Connector bracket type	CIRCULAR CONN ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Material	ALUMINUM ALLOY
Military connector accessories name	STRAIN RELIEF
Housing size	24
Base Number Matches	1

Preview

Download Datasheet

View All

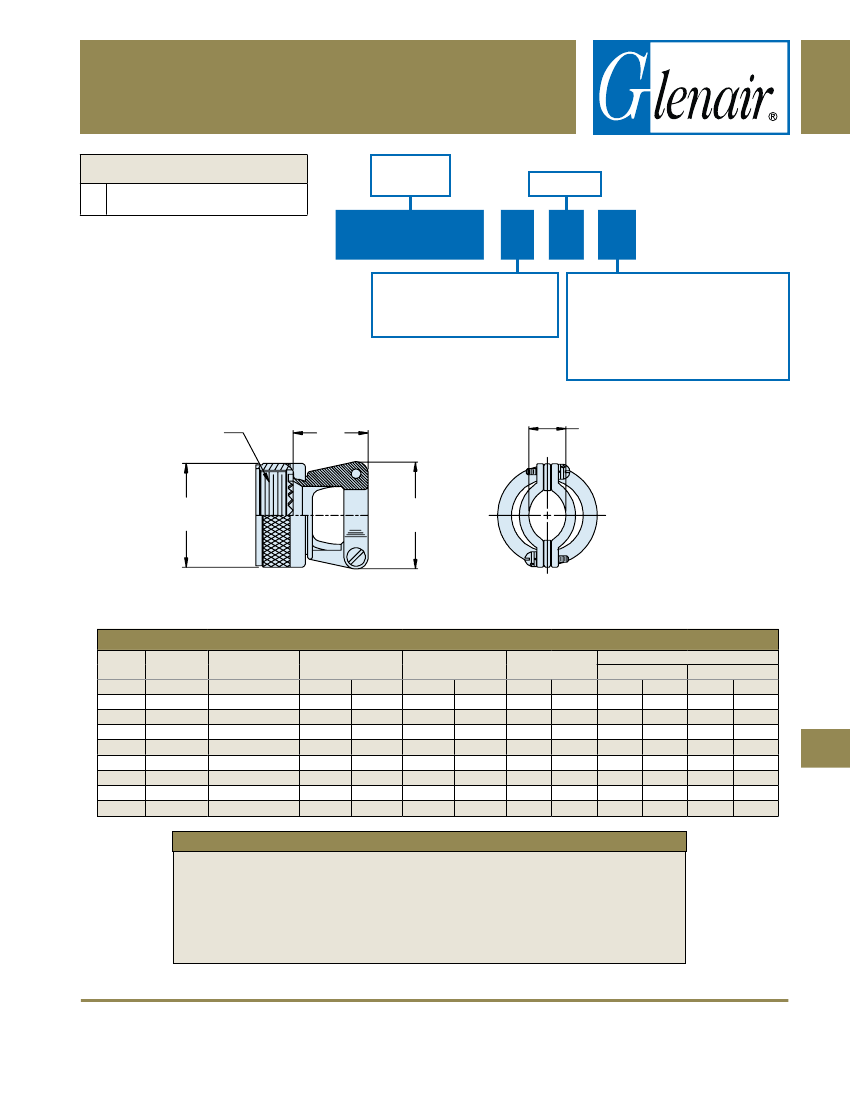

Self-Locking or Non-Self-Locking

CONNECTOR DESIGNATOR:

Basic

Part Number

MIL-DTL-27599,

MIL-DTL-38999 Series Series I & II

Dash No.

FOR NEW DESIGN

USE AS85049/121

M85049/49-2

Material and Finish Designator

= Aluminum, Black Anodize

= Aluminum, Electroless Nickel

= 300 Series Steel, Passivated

= Aluminum, 1000 Hour Cadmium

Olive Drab over Electroless Nickel

= Self-Locking

Use Dash for Non-Self-Locking

= Non-Detented

A Thread

Self-Locking

Only

Cable

Entry

Note: Screw

orientation shown is

for non-self-locking

configuration. Screws

on self-locking

configurations are on

the same side/face of

the clamp.

Self-Locking Only

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Shell

Size

Shell Size

Ref.

8/9

10/11

12/13

14/15

16/17

18/19

20/21

22/23

24/25

A Thread

Ø E Max

F Max

Class 2B

Self-Locking Only Self-Locking Only

.438 - 28 UNEF

.86

(21.8)

.91

(23.1)

.562 - 24 UNEF

.98

(24.9)

.91

(23.1)

.688 - 24 UNEF

1.16

(29.5)

1.01

(25.7)

.813 - 20 UNEF

1.28

(32.5)

1.06

(26.9)

.938 - 20 UNEF

1.41

(35.8)

1.16

(29.5)

1.063 - 18 UNEF

1.52

(38.6)

1.41

(35.8)

1.188 - 18 UNEF

1.64

(41.7)

1.51

(38.4)

1.313 - 18 UNEF

1.77

(45.0)

1.66

(42.2)

1.438 - 18 UNEF

1.89

(48.0)

1.76

(44.7)

Max

.85

(21.6)

.90

(22.9)

1.10

(27.9)

1.15

(29.2)

1.30

(33.0)

1.50

(38.1)

1.60

(40.6)

1.70

(43.2)

1.80

(45.7)

.098

.153

.190

.260

.283

.325

.343

.381

.418

Min

Cable Entry

.234

.328

.457

.614

.634

.698

.823

.853

(2.5)

(3.9)

(4.8)

(6.6)

(7.2)

(8.3)

(8.7)

(9.7)

(10.6)

Max

(5.9)

(8.3)

(11.6)

(15.6)

(16.1)

(17.7)

(20.9)

(21.7)

APPLICATION NOTES

Assembly to be identified with manufacturer’s name and part number, space permitting.

Cable Entry is defined as the accommodation entry for the wire bundle or cable.

Dimensions are not intended for inspection criteria.

For complete dimensions, see the applicable Military Specification.

Metric dimensions (mm) are in parentheses.

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

62-19

Strain Reliefs

AS85049/49-2 and MS27506

Straight Strain Relief
