450MXH150MSN25X30: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 150uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size68KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

450MXH150MSN25X30 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 150uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

450MXH150MSN25X30 Parametric

Parameter Name	Attribute value
Number of terminals	2
Package shape	CYLINDRICAL PACKAGE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Is it Rohs certified?	Yes
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1876366840
package instruction	,
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
capacitance	150 µF
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	790 mA
JESD-609 code	e3
leakage current	0.77942 mA
Delta tangent	0.2

Preview

Download Datasheet

View All

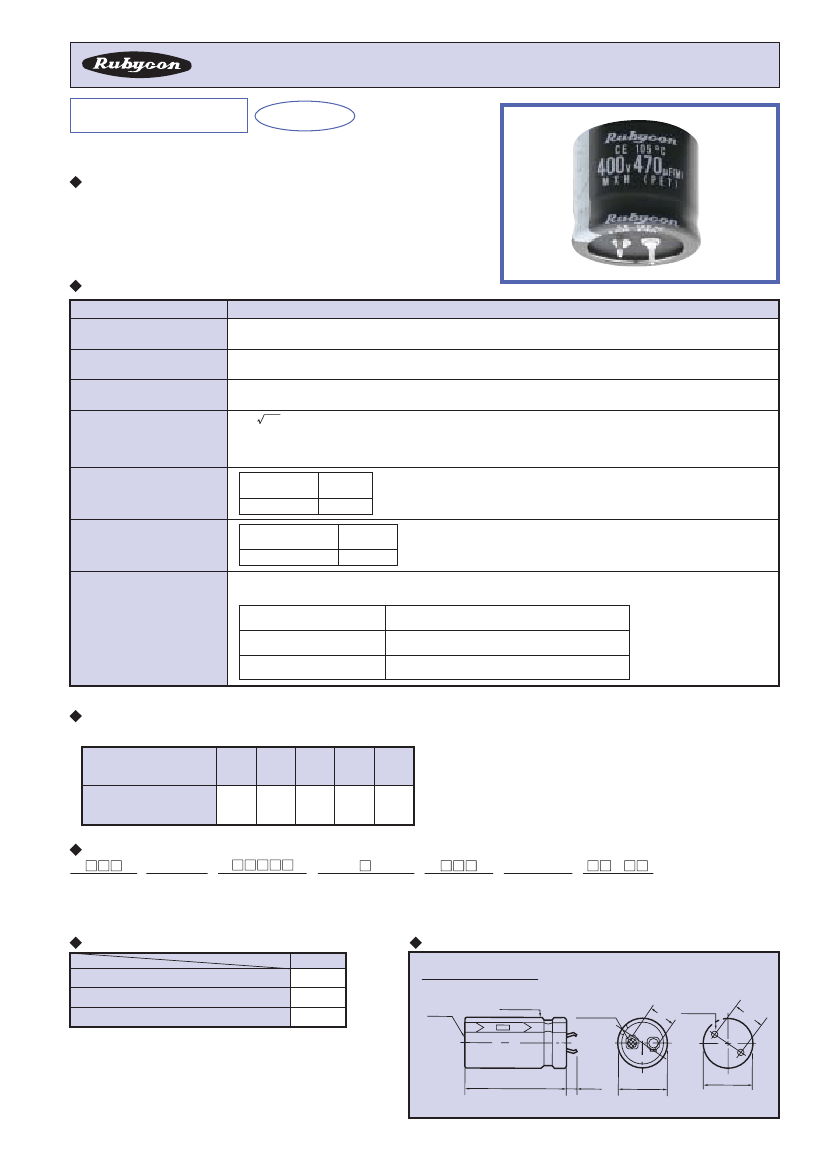

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

MXH

o

SERIES

NEW

105

C

Ultra Miniaturized, Snap-in Terminal Type

FEATURES

•

Load Life : 105

°

C 2000 hours.

•

Smaller size than MXG series.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

I=3

CV

Leakage Current(MAX)

+

-

Characteristics

-25∼

+105℃

400V.DC,450V.DC

20%(20

°

C,120Hz)

(After 5 minutes application of rated voltage)

I=

Leakage Current

(µA)

Rated Voltage

(V)

tanδ

400,450

0.20

400,450

8

V=

Rated Voltage

(V)

(20

°

C,120Hz)

C=

Rated Capacitance

(µF)

Dissipation Factor(MAX)

(tan

δ

)

Impedance Ratio(MAX)

Rated Voltage

(V)

Z(

-

25

°

C)/Z(20

°

C)

(120Hz)

After applying rated voltage with rated ripple current for 2000 hrs at 105

°

C, the capacitors shall meet the following requirements.

Capacitance Change

Dissipation Factor

Leakage Current

+

Within -20% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Endurance

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

(Hz)

60

0.80

120

1.00

500

1.20

1k

1.25

10k <

=

1.40

Coefficient

PART NUMBER

MXH

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

SN

Terminal Code

×

Case Size

Option

Code

PET Sleeve without plate

PVC Sleeve without plate

PVC Sleeve with plate

DIMENSIONS

EFC

OOE

Blank

VENT

(mm)

Terminal code : SN(Tin plating)

●

SN

［4(3.5)mm½

terminal type

SLEEVE

NEGATIVE

10

2-

φ

2

10

-

0.1

+

L

-

2

∗

+

4

-

0.5

+

∗

For

φ

35, 3.5

-

0.5

+

φ

D

-

1

+

φ

D

-

1

MOUNTING HOLES
