BG195-76-A-0350-N-D: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG195-76-A-0350-N-D Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

BG195-76-A-0350-N-D Parametric

Parameter Name	Attribute value
body width	0.217 inch
subject depth	0.335 inch
body length	3.831 inch
Terminal length	0.138 inch
insulator material	POLYAMIDE
Total number of contacts	76
Contact point gender	FEMALE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact resistance	20 mΩ
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Body/casing type	RECEPTACLE
Terminal pitch	2.54 mm
Rated current (signal)	3 A
Contact material	COPPER ALLOY
Contact style	SQ PIN-SKT
Termination type	SOLDER
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Guideline	UL
Minimum operating temperature	-40 °C
Maximum operating temperature	105 °C
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	9.1
Objectid	316040360
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99

Preview

Download Datasheet

View All

3

1

2

4

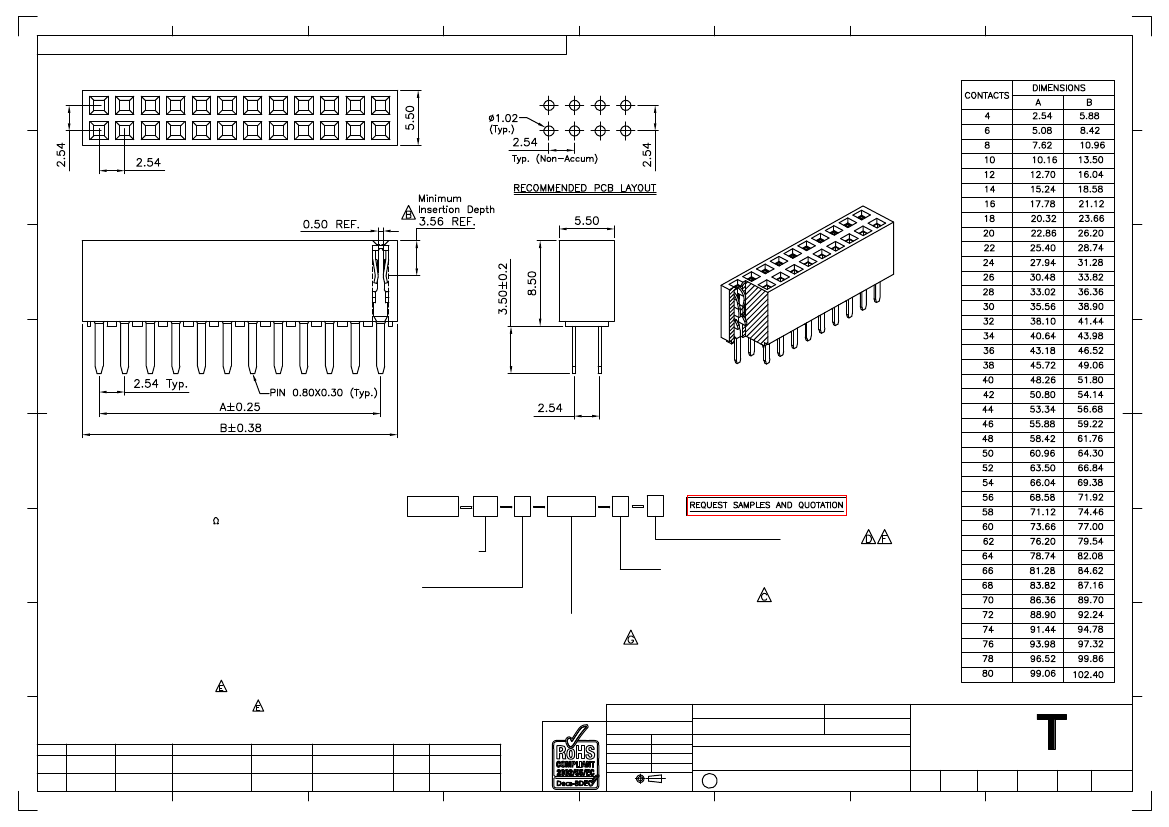

Global Connector Technology Ltd. - BG195: 2.54mm PITCH SOCKET, DUAL ROW, THROUGH HOLE, VERTICAL

A

5

6

7

8

A

B

C

D

E

SPECIFICATIONS

规格

Ordering Grid

CURRENT RATING

电流额定值：

3 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 600 V

CONTACT RESISTANCE

接触电阻值：

20m Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

No. of Contacts

CONTACT PLATING: GOLD/TIN OVER NICKEL

INSULATOR MATERIAL

绝缘½物料：

04 to 80

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

Contact Plating

OR POLYESTER

聚酯

, PBT, UL94-V0

A = Gold Flash All Over (Standard)

SOLDERING PROCESS

可焊性

:

B = Selective Gold Flash Contact Area/Tin

NYLON 6T (STANDARD

标准物料

) -

On Tail

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

C = Tin All Over

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

G = 10µ" Gold Contact Area/Tin On Tail

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

I = 30µ" Gold Contact Area/Tin On Tail

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG025

BG040

BG045

BG050

BG065

BG070

BG085

E

BG195

XX

X

0350

X

Packing Options

D = Tube (Standard)

(Not Available in 4 & 6 Contacts)

Insulator Material

E = Tube with Cap

N = Nylon 6T (Standard)

(Not Available in 4 & 6 Contacts)

P = PBT

F = Tube with Film

L = LCP

(Not Available in 4 & 6 Contacts)

G = Plastic Box

H = Tray

(Only Available in 4 & 6 Contacts)

F

Tail Length (1/100mm)

0350 = 3.50mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG195

Description:-

30 OCT 06

H

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

30/10/06

PN

DIMENSION

AMENDMENT

B

09/03/09

PN

CB

DR

ASE

AJO

STANDARD INSULATOR

PACKING OPTIONS

CHANGED

MATERIAL CHANGED

C

12/03/09

D

27/04/09

CHANGE TO SOLDER

PACKING

SELECTABLE

TEMP. INFORMATION

REVISED LENGTH REMOVED

E

F

G

05/08/09

28/05/12

16/07/12

2.54mm PITCH SOCKET, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

G

Drawn by

LYH

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
