AP2S-110.000MHZ-D-B datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> AP2S-110.000MHZ-D-B

AP2S-110.000MHZ-D-B: DescriptionOscillator, 3MHz Min, 110MHz Max, 110MHz Nom; CategoryPassive components oscillator; File Size2MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AP2S-110.000MHZ-D-B Overview

Oscillator, 3MHz Min, 110MHz Max, 110MHz Nom

AP2S-110.000MHZ-D-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Objectid	109293174
package instruction	DILCC4,.08,65
Reach Compliance Code	compliant
Is Samacsys	N

Preview

Download Datasheet

View All

SURFACE-MOUNT CMOS PROGRAMMABLE OSCILLATOR

AP2S

FEATURES:

• Performance comparable to fixed frequency oscillator

• Lowest peak-to-peak jitter

• Low supply current

• Short lead time

• Suitable for mass production

• Alternative to long lead-time XO's

RoHS

Compliant

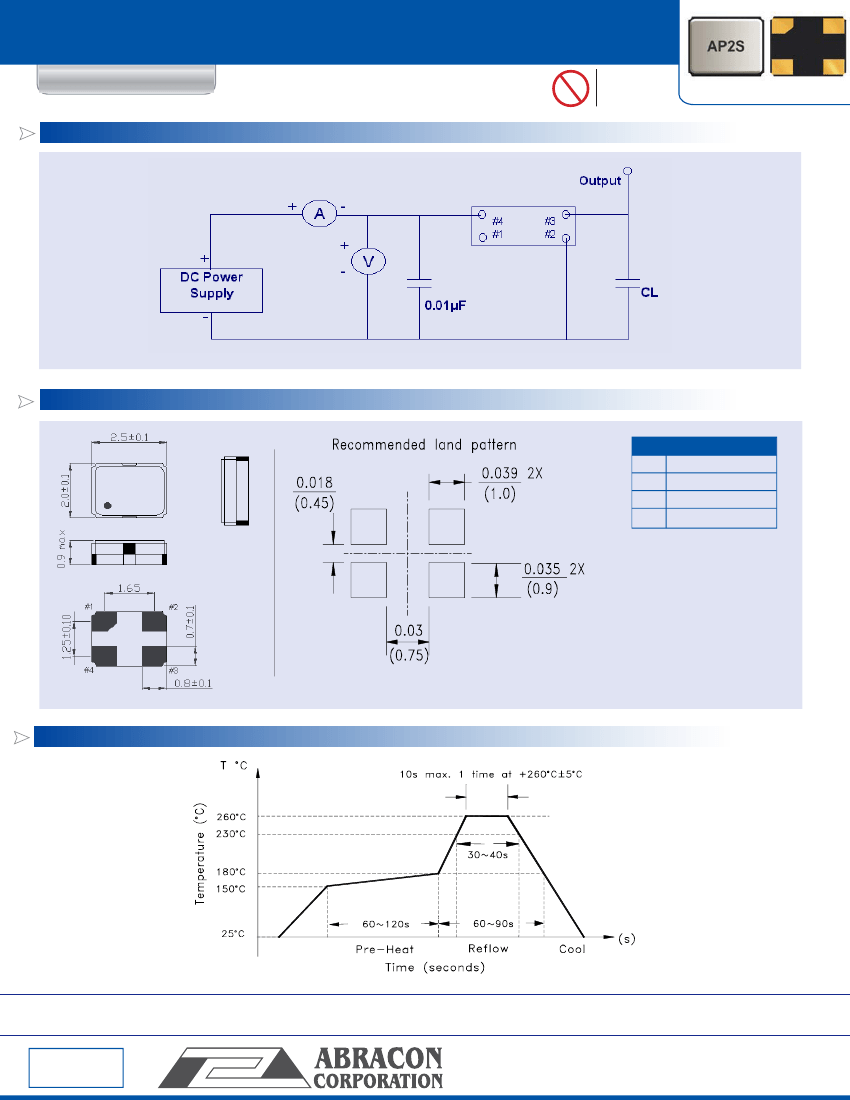

2.5 x 2.0 x 0.9mm

| | | | | | | | | | | | | | |

ELECTRICAL SPECIFICATIONS:

Characteristics

Frequency Range

(3.3V)

(2.5V)

(1.8V)

Unit

MHz

°C

ppm

nSec

psec

Minimum

-10

-100

2.97

2.25

1.62

Typical

3.3

2.5

1.8

For Small

Quantities,

Delivery Time

is 1-5 days

Maximum

110

100

3.63

2.75

1.98

Operating Temp. Range (See Options)

Freq. stability

over operating temp.* (See Options)

Input Voltage (Operating Vdd)

Input Current

Output Type

Output Load

Output "0" level

Output "1" level

Symmetry

(3.3V)

(2.5V)

(1.8V)

(3.3V)

(2.5V)

(1.8V)

(3.3V)

(2.5V)

(1.8V)

Standby Current (PIN 1 option: B)

Rise Time (10%->90% Vdd)

Fall Time (90%->10% Vdd)

Tri-state Function

(Input to pin 1)

Jitter peak-to-peak**

2 .9 7

2.25

1.62

2.5

pin 1 : High or Open , pin 3 : Enable

pin 1 : Low , pin 3 : Disable

40 to 200

CMOS

0.33

0.25

0.18

* Inclusive of calibration @25°C, operating temperature range, input voltage variation, load variation, aging,

shock, and vibration.

** Jitter performance depends on programing parameter and output frequency. Please contact ABRACON for additional info.

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AP2S -Frequency****- - - -

Operating Temp.

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Freq. Stability

±20ppm

J***

±25ppm

±30ppm

±50ppm

PIN 1(Option)

**Blank

**B

PDB

Packaging

Blank

Bulk

Tape and Reel

Ask for Tube Package

Supply Voltage

Blank*

3.3 V

2.5 V

1.8 V

*3.3V : Standard

(***_ Available for I, D, or E temp options only.

Contact ABRACON for EJ or LR options. (Availability limited)

(****) Frequency in MHz

** OE: Tri-state the output buffer.

** PDB: Tri-state the output buffer and shut off the oscillator, <10µA when PDB enabled.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 08.07.09

30332

Esperanza, Rancho Santa Margarita, California

92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
