3-340516-5

Description
CONNECTOR, 62 CONTACT(S), STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
CategoryThe connector    The connector
File Size128KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-340516-5 Overview

CONNECTOR, 62 CONTACT(S), STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

3-340516-5 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD FLASH OVER NICKEL
Contact completed and terminatedTIN LEAD OVER NICKEL
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number340516
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts62
UL Flammability Code94V-0
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
One-Piece C ard Edge C onnectors
>
Product Feature Selector
> Product Details

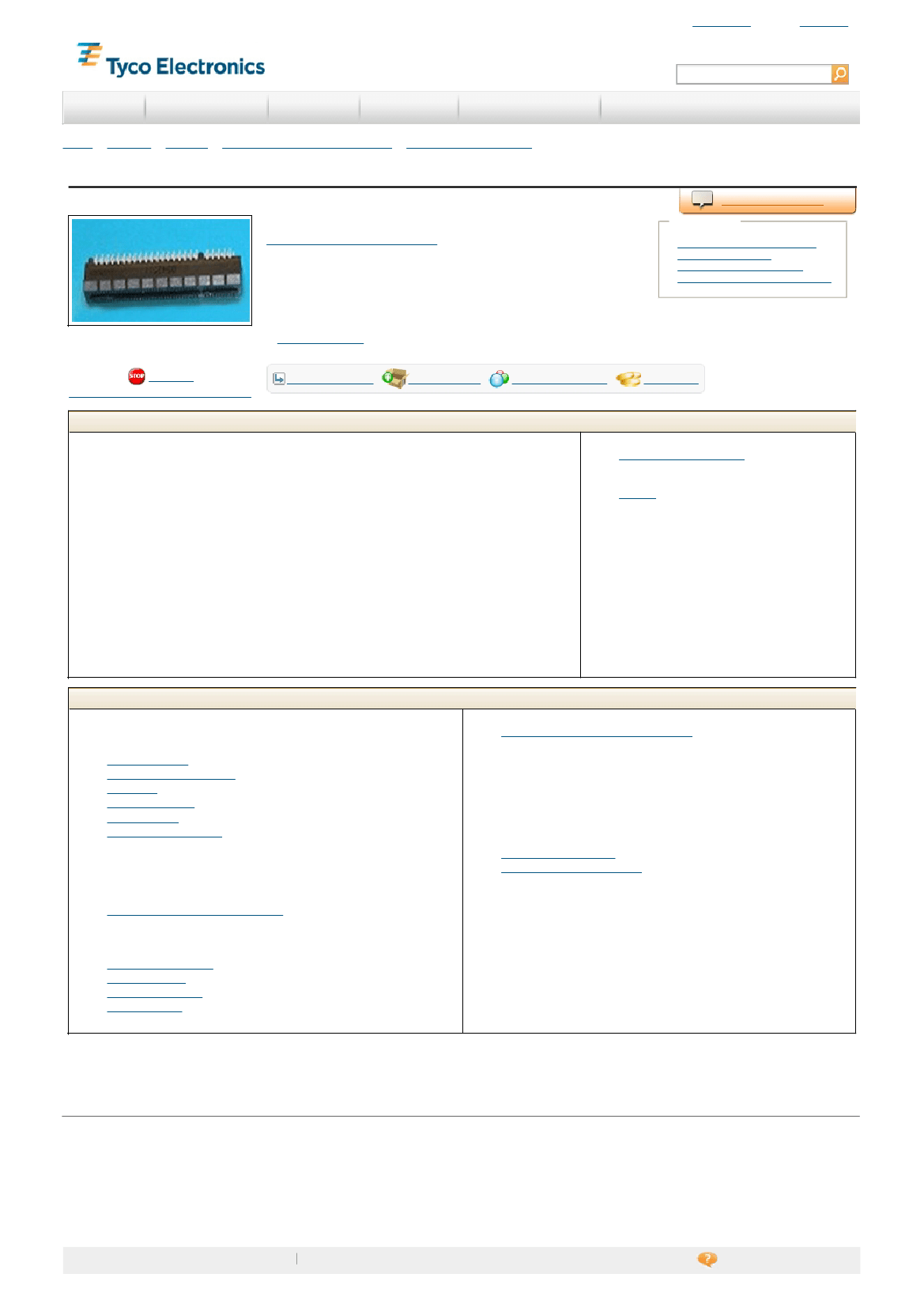

3-340516-5 Product Details
Live Product Chat
Standard Edge II Card Edge & Power Connectors
Not re vie we d for R oHS C om plia nce
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
3-340516-5
T E I nternal N umber: 3 - 3 4 0 5 1 6 - 5
Product Highlights:
l
C onnector
l
Product Series = Standard Edge III+
l
C onnector Type = Standard
l
2.54 mm C enterline
l
31 Dual Positions
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type = C onnector
l
Product Series = Standard Edge III+
l
C onnector Type
= Standard
l
Number of Dual Positions
= 31
l
Post Type
= Solder Post
l
PC B Mount Angle
= Vertical
l
Mounting Ears
= Without
l
PC B Retention Feature
= No
Electrical Characteristics:
l
High C urrent = No
Termination Related Features:
l
Termination Post Length (mm [in])
= 3.18 [0.125]
l
Solder Tail C ontact Plating = Tin-Lead over Nickel
Body Related Features:
l
C enterline (mm [in])
= 2.54 [0.100]
l
Retention Latch
= Without
l
Positions Unloaded
= None
l
Keyed Position
= 0
Contact Related Features:
l
C ontact Plating, Mating Area, Material
= Gold Flash
l
C ontact Base Material = Phosphor Bronze
l
C ontact Underplating = Nickel
Housing Related Features:
l
Housing Material = Polyester GF
l
Housing Flammability Rating = UL 94V-0
Industry Standards:
l
RoHS/ELV C ompliance
= Not reviewed for ELV/RoHS compliance
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
Other:
l
Brand = AMP
