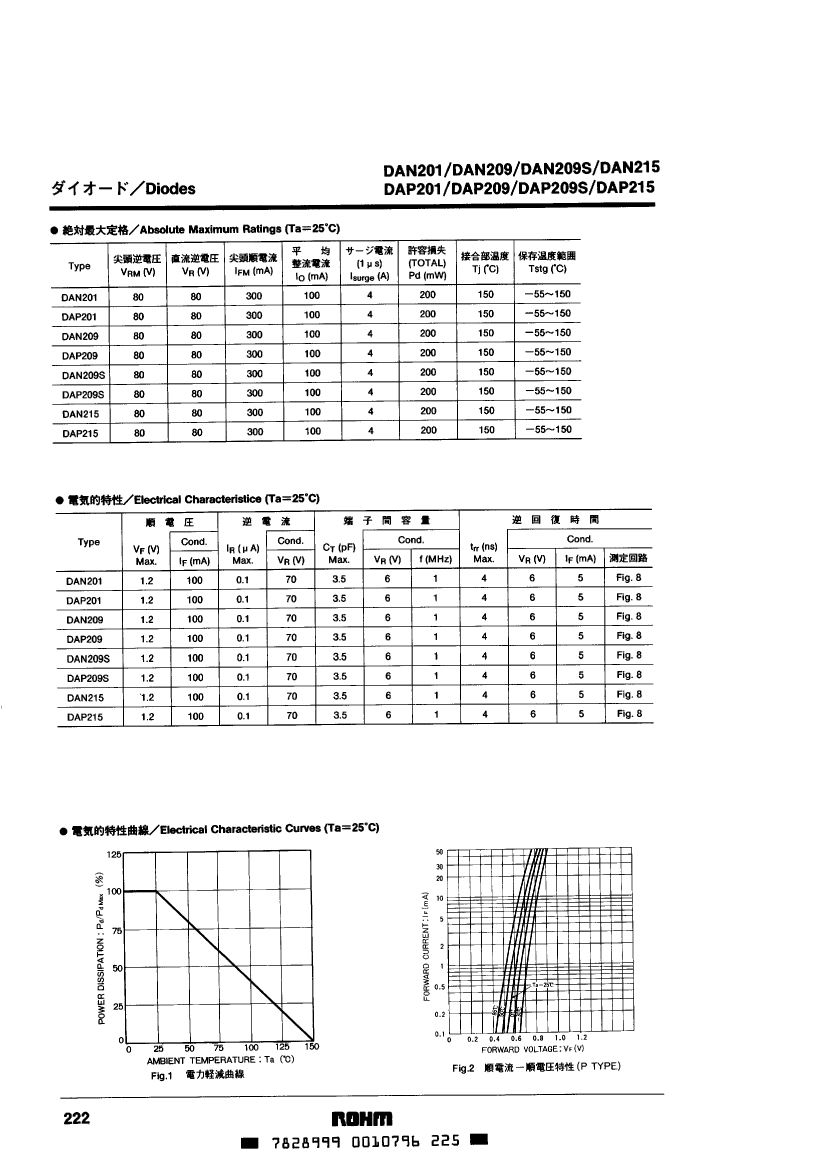

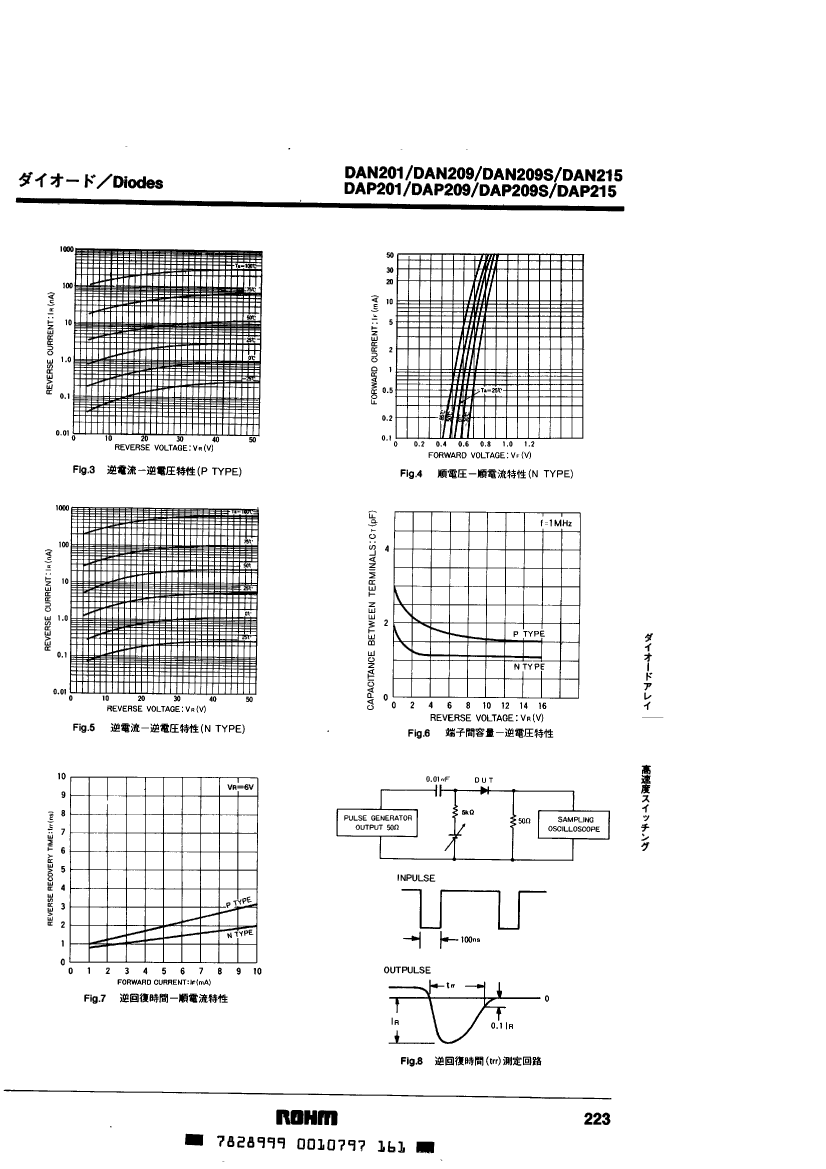

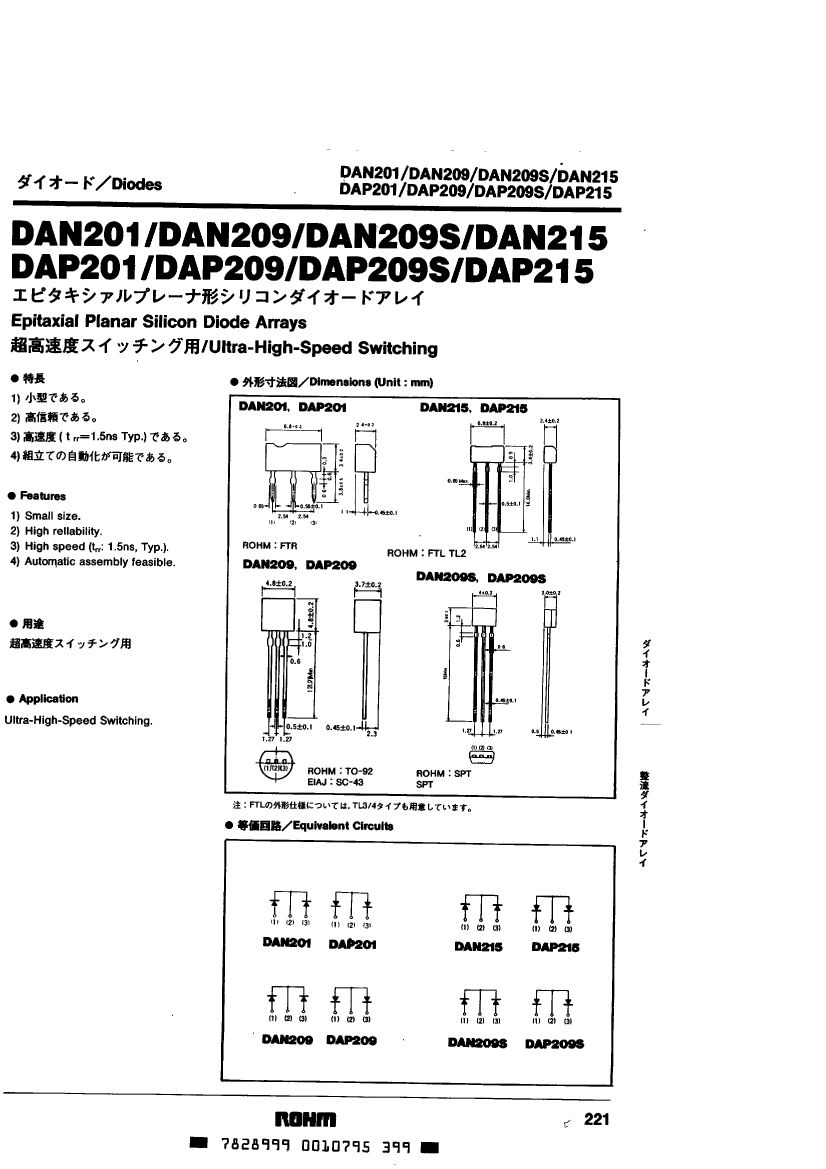

Preview

DAP209S: Description0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size196KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DAP209S Overview

0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE

DAP209S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PSIP-W3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	R-PSIP-W3
Maximum non-repetitive peak forward current	4 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.004 µs
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

DAP209S Related Products

	DAP209S	DAN201	DAN209	DAN209S	DAN215	DAP201	DAP209	DAP215
Description	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-92	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE	75 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-92	0.1 A, 80 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-PSIP-W3	R-PSIP-T3	O-PBCY-T3	R-PSIP-W3	R-PSIP-T3	R-PSIP-T3	O-PBCY-T3	R-PSIP-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
JESD-30 code	R-PSIP-W3	R-PSIP-T3	O-PBCY-T3	R-PSIP-W3	R-PSIP-T3	R-PSIP-T3	O-PBCY-T3	R-PSIP-T3
Maximum non-repetitive peak forward current	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Number of components	2	2	2	2	2	2	2	2
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Maximum reverse current	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	BOTTOM	SINGLE	SINGLE	SINGLE	BOTTOM	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	ROHM Semiconductor	-	-	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
