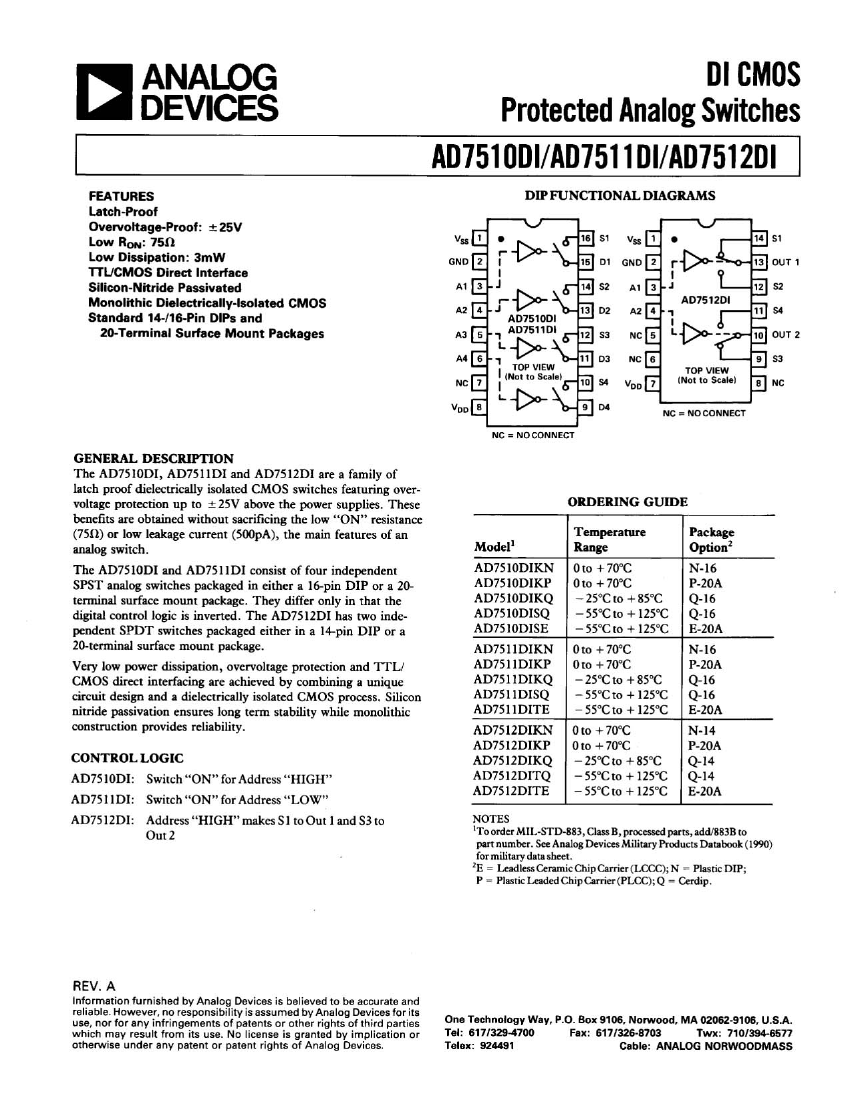

IC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch

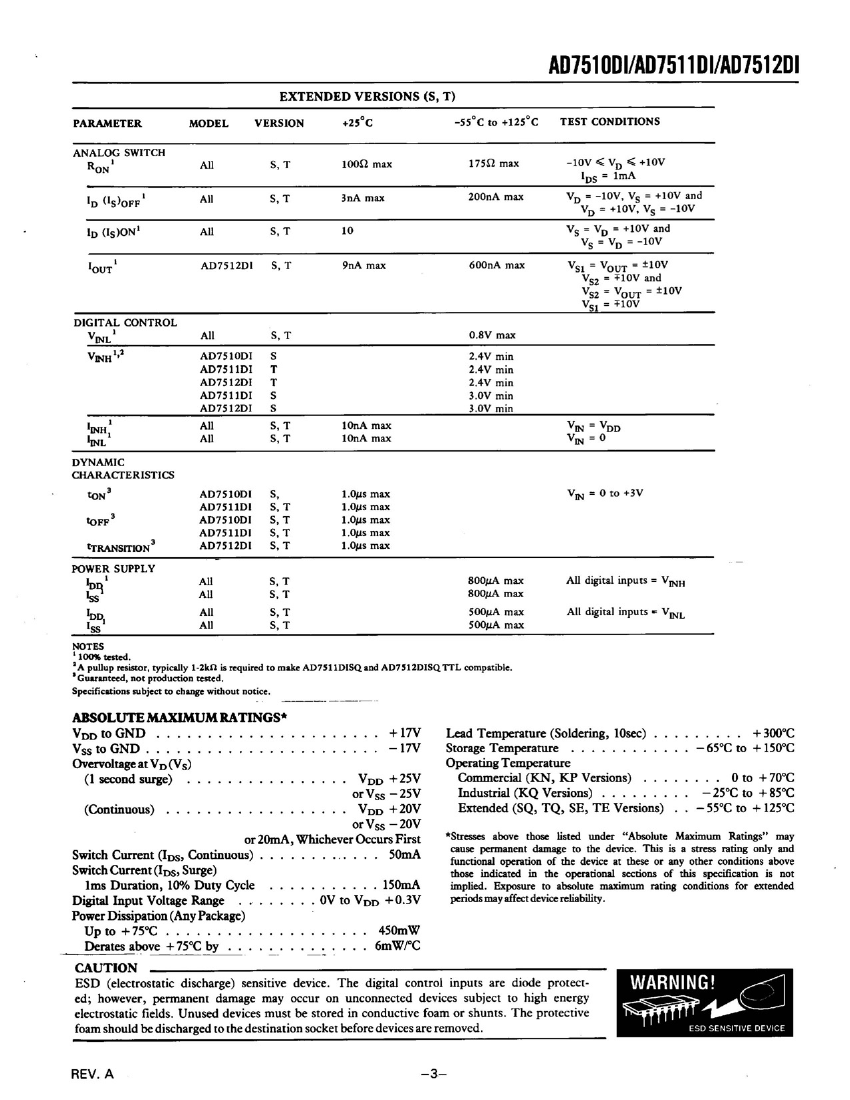

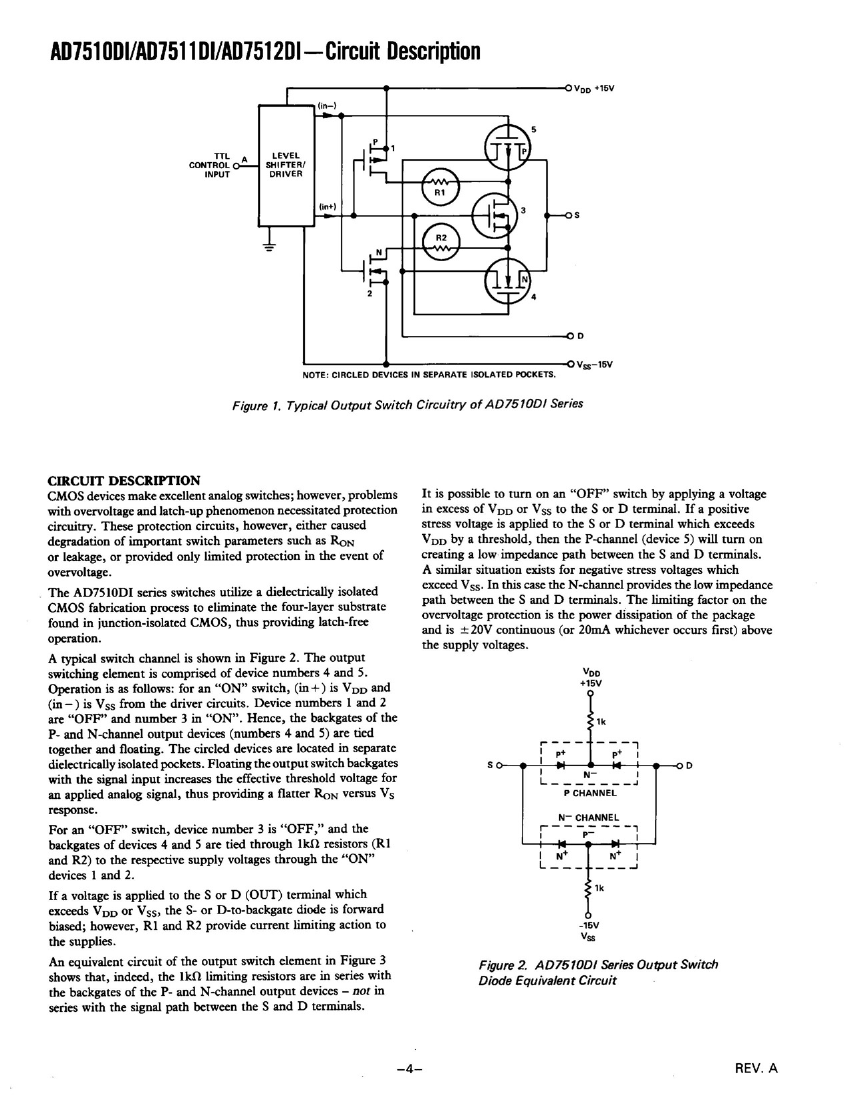

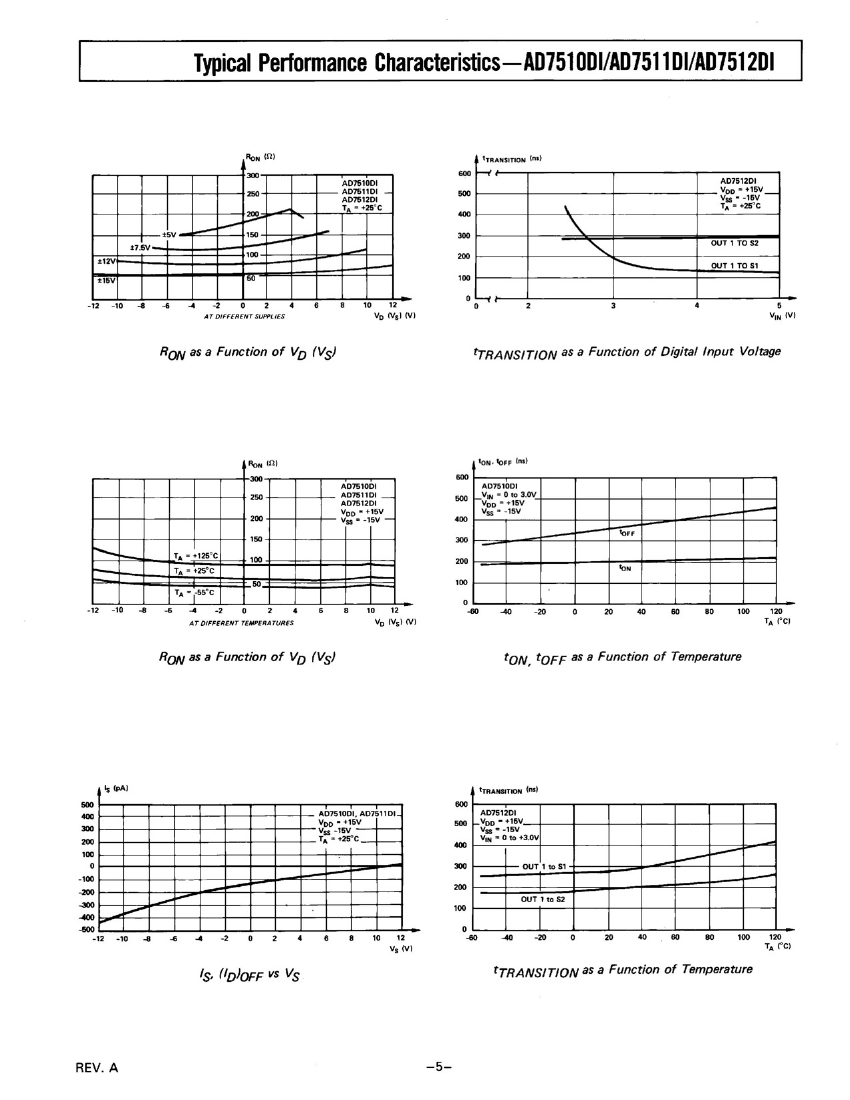

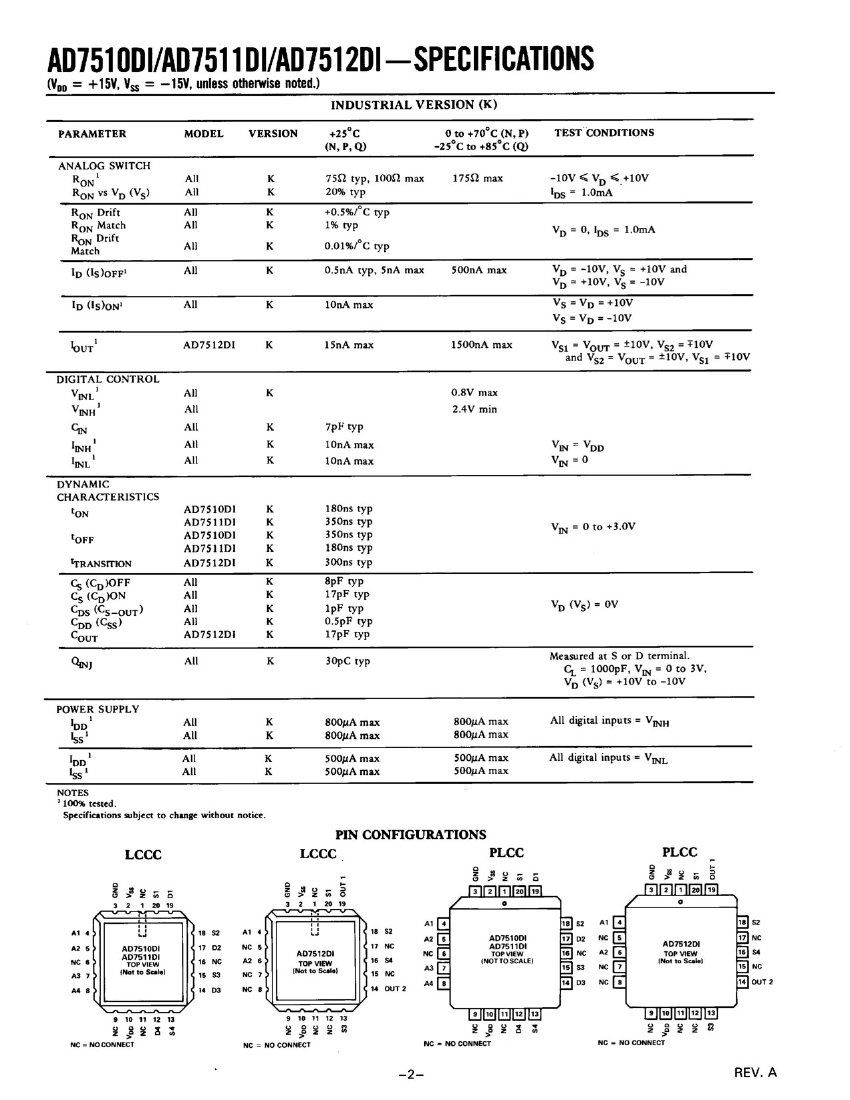

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | PLASTIC, LCC-20 |
| Contacts | 20 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Other features | OVERVOLTAGE PROTECTION |
| Analog Integrated Circuits - Other Types | SPDT |
| JESD-30 code | S-PQCC-J20 |
| JESD-609 code | e0 |
| length | 8.966 mm |
| Humidity sensitivity level | 1 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 1 |
| Number of functions | 2 |
| Number of terminals | 20 |
| On-state resistance matching specifications | 0.75 Ω |
| Maximum on-state resistance (Ron) | 100 Ω |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| output | SEPARATE OUTPUT |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC20,.4SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | 240 |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn85Pb15) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | 30 |
| width | 8.966 mm |
| Base Number Matches | 1 |
| AD7512DIKP-REEL | AD7512DIJCHIPS | AD7512DIJQ/+ | AD7512DIKN/+ | AD7512DIJN/+ | AD7512DIJP-REEL | |
|---|---|---|---|---|---|---|
| Description | IC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch | IC IC,ANALOG SWITCH,DUAL,SPDT,CMOS,DIE, Multiplexer or Switch | IC IC,ANALOG SWITCH,DUAL,SPDT,CMOS,DIP,14PIN,CERAMIC, Multiplexer or Switch | IC IC,ANALOG SWITCH,DUAL,SPDT,CMOS,DIP,14PIN,PLASTIC, Multiplexer or Switch | IC IC,ANALOG SWITCH,DUAL,SPDT,CMOS,DIP,14PIN,PLASTIC, Multiplexer or Switch | IC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | not_compliant | compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum on-state resistance (Ron) | 100 Ω | 175 Ω | 175 Ω | 175 Ω | 175 Ω | 100 Ω |
| Maximum operating temperature | 70 °C | 70 °C | 85 °C | 70 °C | 70 °C | 70 °C |
| output | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT |
| Encapsulate equivalent code | LDCC20,.4SQ | DIE OR CHIP | DIP14,.3 | DIP14,.3 | DIP14,.3 | LDCC20,.4SQ |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | OTHER | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| JESD-30 code | S-PQCC-J20 | - | R-XDIP-T14 | R-PDIP-T14 | R-PDIP-T14 | S-PQCC-J20 |
| JESD-609 code | e0 | - | e0 | e0 | e0 | e0 |
| Number of terminals | 20 | - | 14 | 14 | 14 | 20 |
| Package body material | PLASTIC/EPOXY | - | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | - | DIP | DIP | DIP | QCCJ |
| Package shape | SQUARE | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | - | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER |
| surface mount | YES | - | NO | NO | NO | YES |
| Terminal surface | Tin/Lead (Sn85Pb15) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn85Pb15) |
| Terminal form | J BEND | - | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | J BEND |
| Terminal pitch | 1.27 mm | - | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | - | DUAL | DUAL | DUAL | QUAD |
