DBI25-12 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DBI25-12

Preview

DBI25-12: DescriptionThree-Phase Si-Bridge Rectifiers; CategoryDiscrete semiconductor diode; File Size185KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DBI25-12 Overview

Three-Phase Si-Bridge Rectifiers

DBI25-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	R-MSFM-W5
Contacts	5
Manufacturer packaging code	CASE DBI
Reach Compliance Code	compli
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	R-MSFM-W5
JESD-609 code	e3/e4
Maximum non-repetitive peak forward current	310 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	17 A
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1200 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

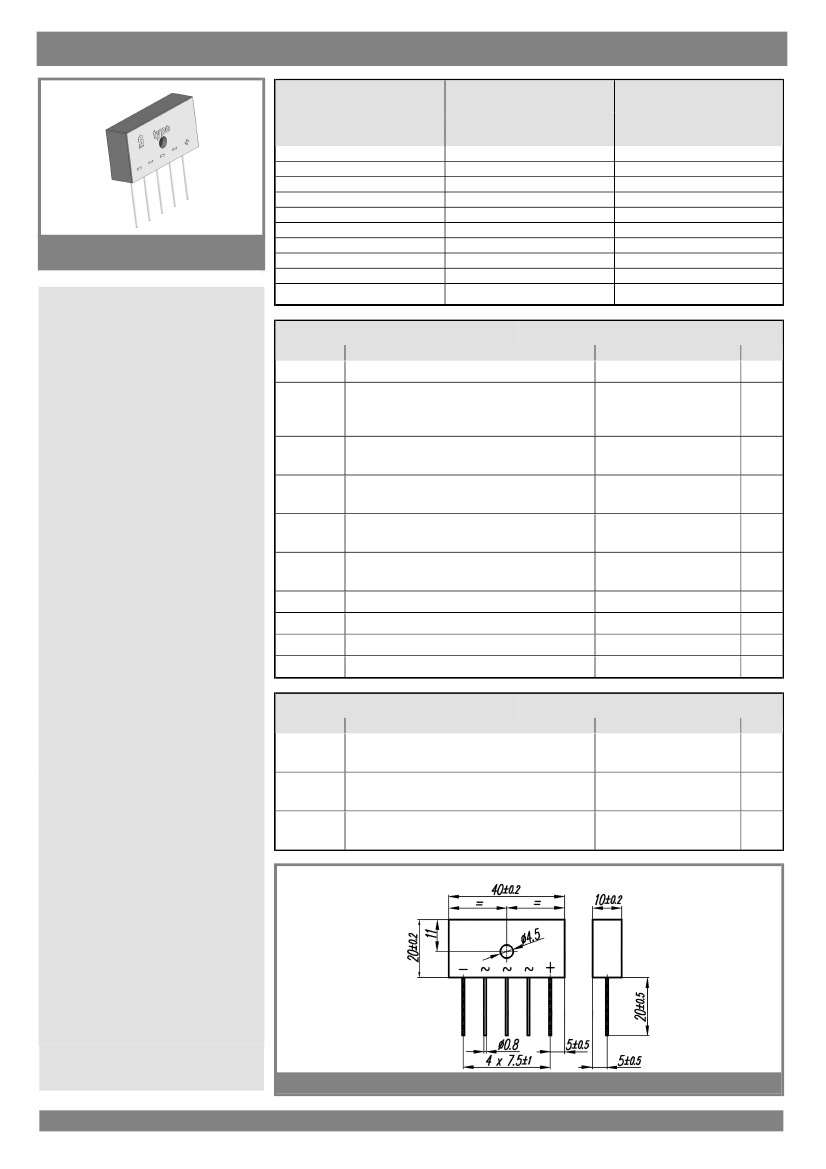

DBI 15-005 ... DBI 15-16

Inline bridge

Three-Phase Si-Bridge

Rectifiers

DBI 15-005...DBI 15-16

Forward Current: 15 A

Reverse Voltage: 50 to 1600 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Characteristics

Symbol Conditions

Values

Units

Mechanical Data

Dimensions in mm

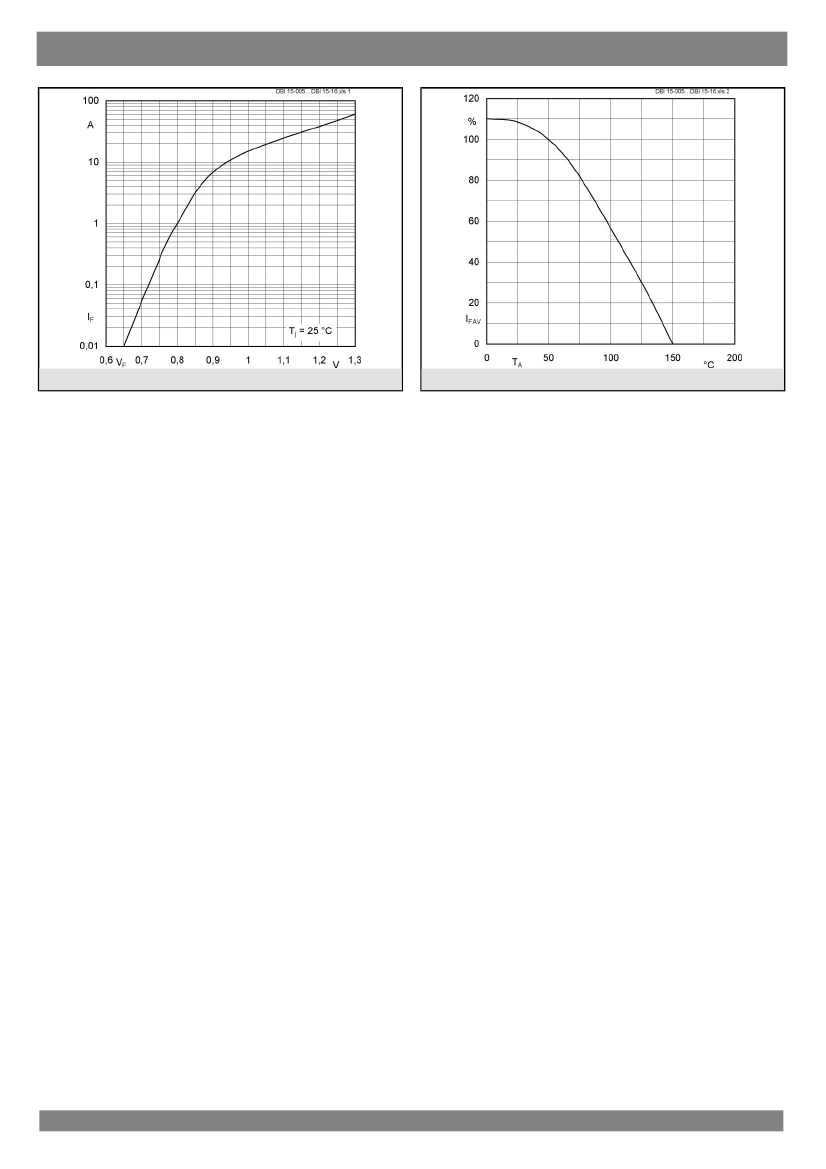

1

15-10-2004 SCT

DBI25-12 Related Products

	DBI25-12	DBI15-02	DBI25-02	DBI15-12
Description	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers	Three-Phase Si-Bridge Rectifiers
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-MSFM-W5	METAL PACKAGE-5	R-MSFM-W5	R-MSIP-W5
Contacts	5	5	5	5
Reach Compliance Code	compli	compli	compli	compli
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.7 V	1.05 V	1.7 V
JESD-30 code	R-MSFM-W5	R-MSIP-W5	R-MSFM-W5	R-MSIP-W5
JESD-609 code	e3/e4	e3/e4	e3/e4	e3/e4
Maximum non-repetitive peak forward current	310 A	210 A	310 A	210 A
Number of components	6	6	6	6
Phase	3	3	3	3
Number of terminals	5	5	5	5
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	17 A	15 A	17 A	15 A
Package body material	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	IN-LINE	FLANGE MOUNT	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1200 V	200 V	200 V	1200 V
surface mount	NO	NO	NO	NO
Terminal surface	TIN/SILVER	TIN/SILVER	TIN/SILVER	TIN/SILVER
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON
