54F259/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F259/BEA

54F259/BEA: DescriptionIC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch; Categorylogic logic; File Size156KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F259/BEA Overview

IC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch

54F259/BEA Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	1:8 DMUX FOLLOWED BY LATCH
series	F/FAST
JESD-30 code	R-GDIP-T16
Logic integrated circuit type	D LATCH
Number of digits	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	LOW LEVEL
width	7.62 mm
Base Number Matches	1

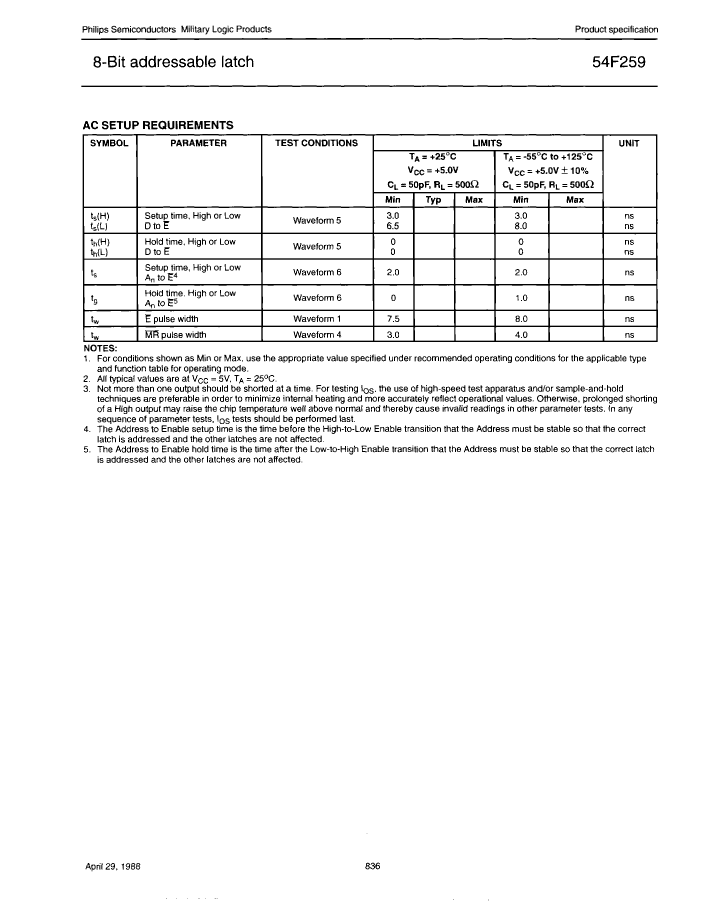

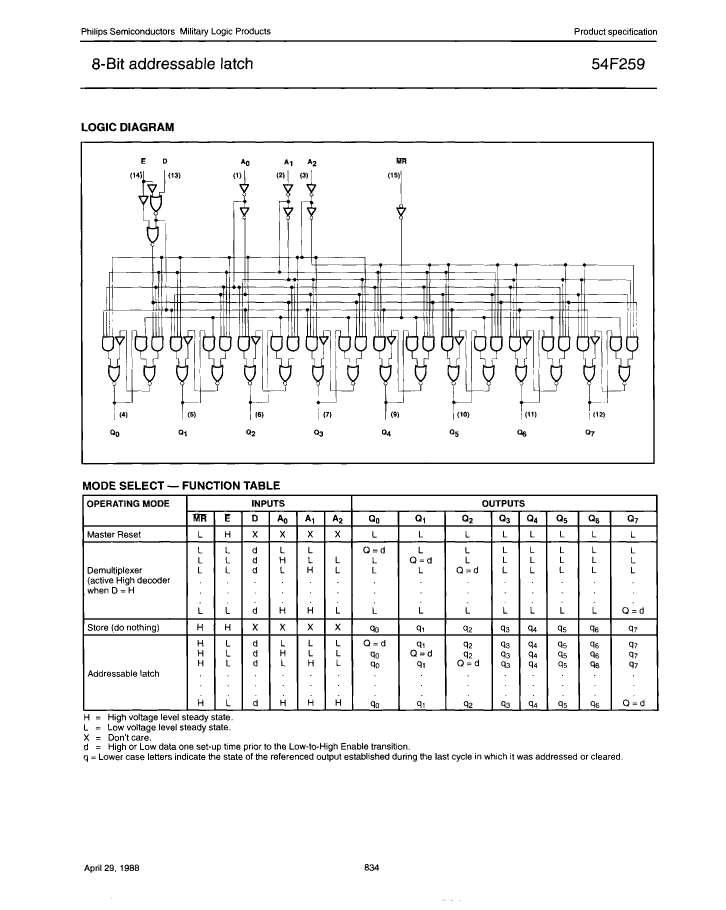

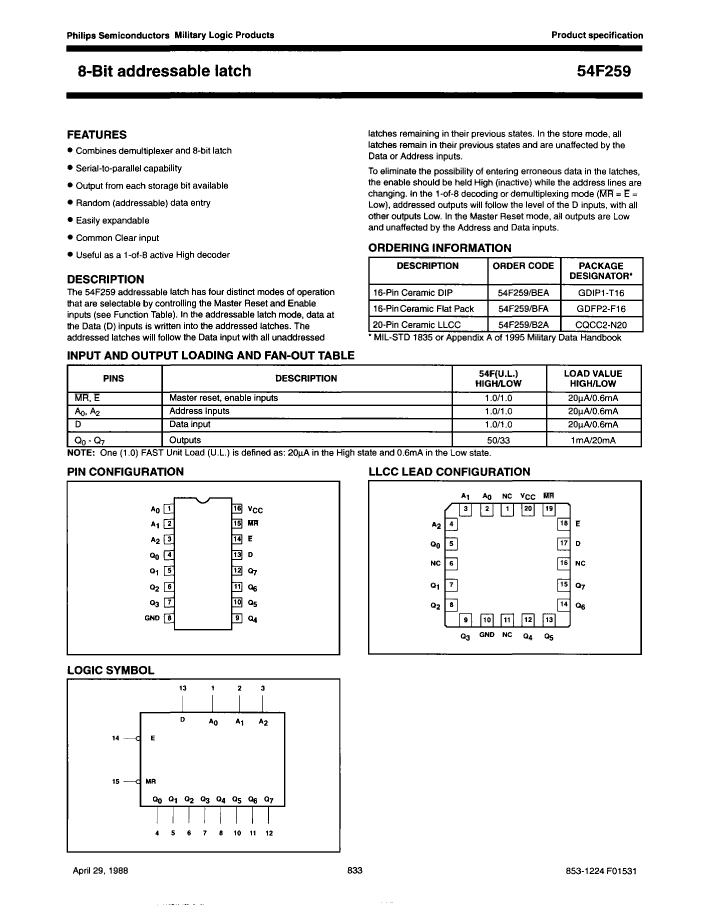

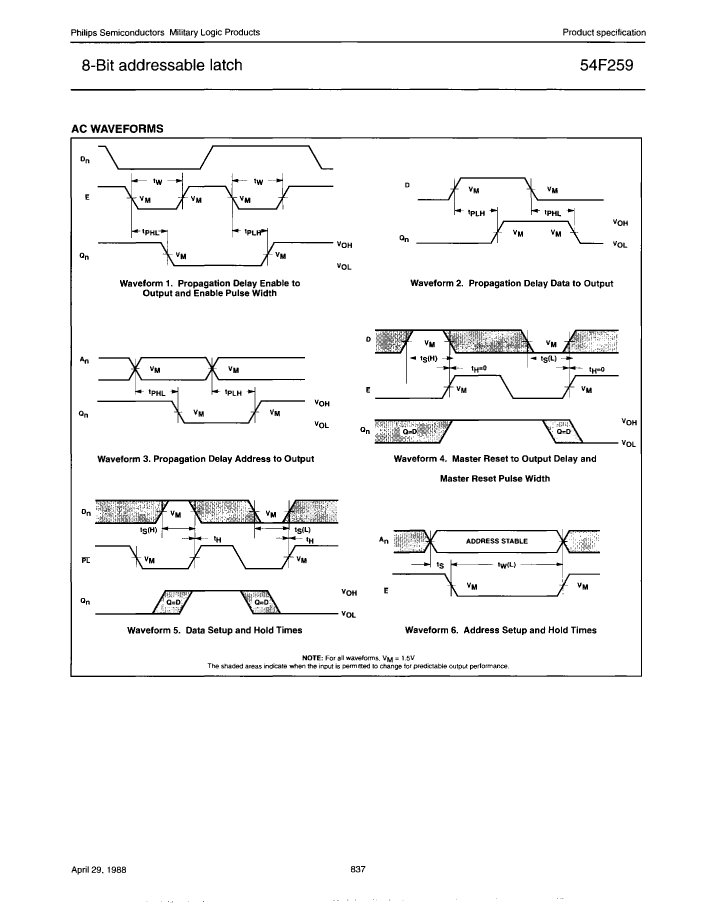

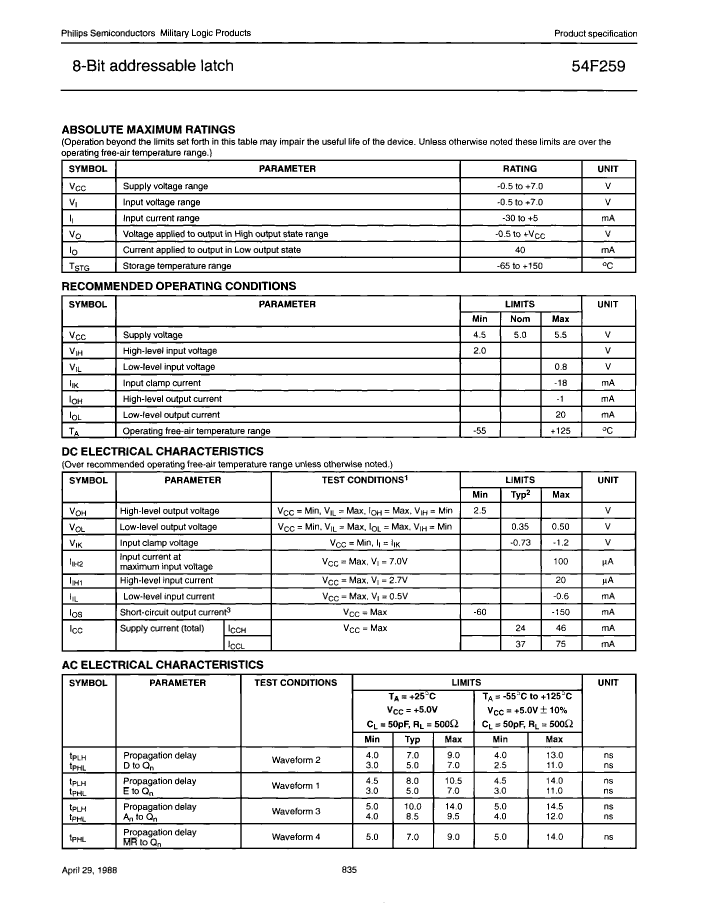

Preview

Download Datasheet

View All

54F259/BEA Related Products

	54F259/BEA	54F259/B2A	54F259/BFA	54F259/BFA-T	54F259/B2A-T
Description	IC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch	IC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CQCC20, FF/Latch	IC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDFP16, FF/Latch	IC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDFP16, FF/Latch	IC F/FAST SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CQCC20, FF/Latch
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Other features	1:8 DMUX FOLLOWED BY LATCH	1:8 DMUX FOLLOWED BY LATCH	1:8 DMUX FOLLOWED BY LATCH	1:8 DMUX FOLLOWED BY LATCH	1:8 DMUX FOLLOWED BY LATCH
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-CDFP-F16	R-CDFP-F16	S-CQCC-N20
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	1	1	1	1	1
Number of functions	1	1	1	1	1
Number of terminals	16	20	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DFP	DFP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER
propagation delay (tpd)	11 ns	11 ns	11 ns	11 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	NO LEAD
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD
Trigger type	LOW LEVEL	LOW LEVEL	LOW LEVEL	LOW LEVEL	LOW LEVEL
package instruction	DIP,	QCCN,	DFP,	-	QCCN,
Base Number Matches	1	1	1	-	-
Maker	-	NXP	NXP	NXP	NXP
