#A921CY-120M=P3 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> #A921CY-120M=P3

#A921CY-120M=P3: DescriptionGeneral Purpose Inductor, 12uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, LEAD FREE; CategoryPassive components inductor; File Size265KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

#A921CY-120M=P3 Overview

General Purpose Inductor, 12uH, 20%, 1 Element, Ferrite-Core, SMD, 2524, CHIP, 2524, LEAD FREE

#A921CY-120M=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 2524
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Samacsys Description	D63LCB Series Inductor 12μH ±20% 2424 (6060)
uppercase and lowercase codes	2524
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.063 Ω
Nominal inductance(L)	12 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3 mm
Package length	6.3 mm
Package form	SMT
Package width	6.2 mm
method of packing	TR
Maximum rated current	1.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	LOW PROFILE
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

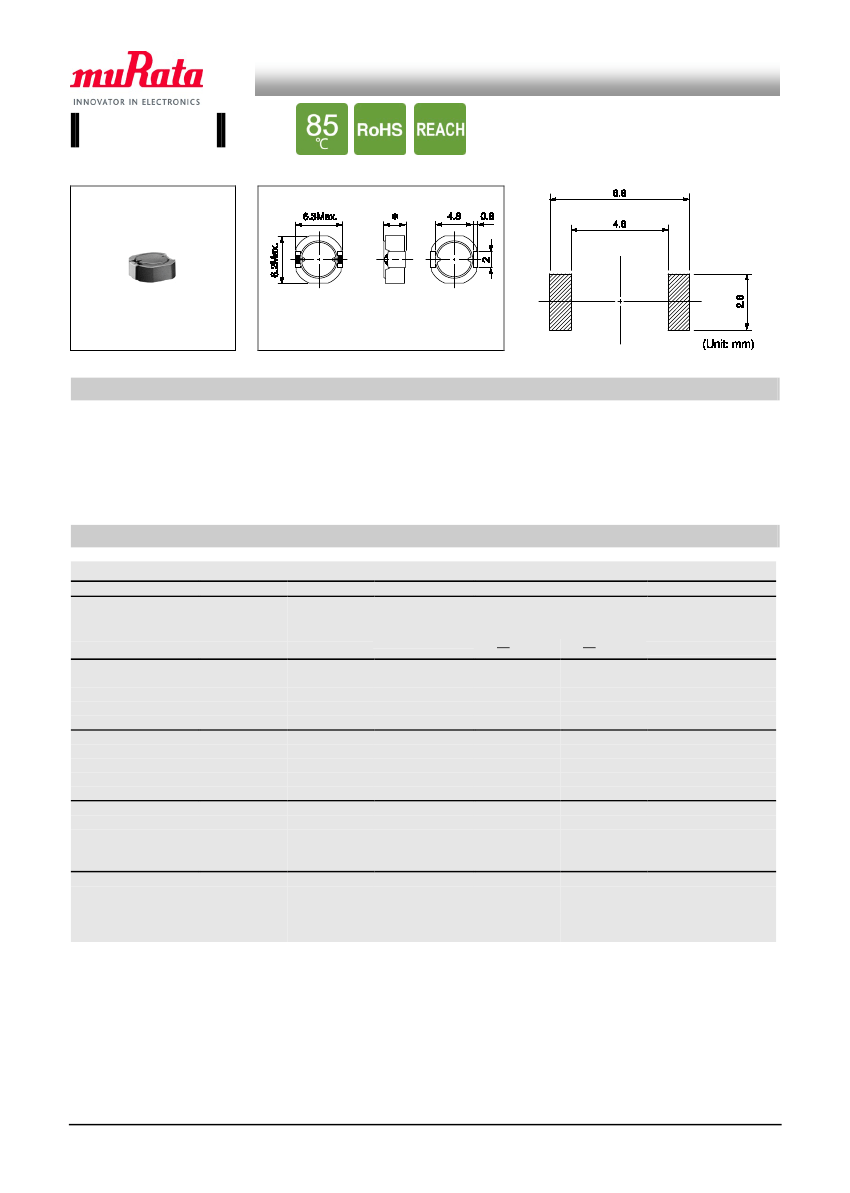

Preview

Download Datasheet

View All

Ferrite Inductors

铁氧½功率电感器

D63LCB

Inductance Range:

1.0~150µH

Recommended patterns

推荐焊盘尺寸

(Unit: mm)

Note (*) 3.0mm Max. height

FEATURES

特点

•

薄型构造（最大6.2×6.3毫米的平面，最大高度3.0毫米）

•

磁性屏½结构和½直流电阻

适合大电流

是适用于多种DC-DC½换器电感器的理想选择

½用温度范围：－40 ½ ＋85°C

•

Low profile (6.2

6.3mm Max. square, 3.0mm Max.

height).

•

Magnetically shielded construction and low DC resistance.

•

Suitable for large currents.

•

Ideal for a variety of DC-DC converter inductor applications

•

Operating temperature (− 40½+85°C)

STANDARD PART NUMBERS

标准零件号码

TYPE D63LCB (Quantity/reel; 1,500 PCS)

零件号码

Part

Number

#A921CY-1R0M=P3

#A921CY-1R5M=P3

#A921CY-2R2M=P3

#A921CY-3R6M=P3

#A921CY-4R7M=P3

#A921CY-6R2M=P3

#A921CY-100M=P3

#A921CY-120M=P3

#A921CY-150M=P3

#A921CY-180M=P3

#A921CY-220M=P3

#A921CY-270M=P3

#A921CY-330M=P3

#A921CY-390M=P3

#A921CY-470M=P3

#A921CY-560M=P3

#A921CY-680M=P3

#A921CY-820M=P3

#A921CY-101M=P3

#A921CY-151M=P3

电感值

(1)

Inductance

(µH)

1.0

1.5

2.2

3.6

4.7

6.2

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

47.0

56.0

68.0

82.0

100.0

150.0

(1)

公差

Tolerance

(%)

最大直流电阻

(2)

Resistance

(2)

(mΩ) Max. (Typ.)

14 (11)

16 (13)

20 (16)

26 (21)

33 (27)

39 (32)

59 (49)

63 (52)

75 (62)

89 (74)

115 (95)

144 (120)

168 (140)

180 (150)

225 (185)

264 (220)

324 (270)

396 (330)

498 (415)

738 (615)

最大电感减小电流

(3)

(典型)

Inductance

Decrease Current

(3)

(A) Max. (Typ.)

∆L

=10%

=30%

2.95 (4.06)

2.41 (3.35)

1.99 (2.72)

1.55 (2.00)

1.36 (1.70)

1.18 (1.58)

0.93 (1.22)

0.85 (1.10)

0.76 (1.02)

0.69 (0.93)

0.62 (0.80)

0.56 (0.74)

0.51 (0.70)

0.47 (0.66)

0.43 (0.56)

0.39 (0.52)

0.35 (0.45)

0.32 (0.44)

0.29 (0.40)

0.25 (0.33)

3.59 (4.79)

2.93 (3.92)

2.42 (3.24)

1.89 (2.53)

1.66 (2.22)

1.45 (1.93)

1.14 (1.52)

1.04 (1.39)

0.93 (1.25)

0.85 (1.14)

0.77 (1.03)

0.70 (0.93)

0.63 (0.84)

0.58 (0.77)

0.53 (0.71)

0.48 (0.65)

0.44 (0.59)

0.40 (0.54)

0.36 (0.49)

0.31 (0.41)

最大温度上升电流

(3)

(典型)

Temperature

Rise Current

(3)

∆T=40°C

(A) Max. (Typ.)

4.52 (5.32)

3.78 (4.45)

3.51 (4.13)

3.01 (3.54)

2.58 (3.03)

2.28 (2.69)

1.91 (2.25)

1.80 (2.12)

1.73 (2.04)

1.58 (1.86)

1.34 (1.58)

1.14 (1.35)

1.01 (1.19)

0.98 (1.16)

0.89 (1.05)

0.82 (0.97)

0.73 (0.87)

0.64 (0.76)

0.58 (0.69)

0.44 (0.52)

(1)Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 30%

inductance reduction from the initial value, or coil temperature to

rise by 40°C, whichever is smaller. (Reference ambient

temperature 20°C)

(1) LCR仪表4284A (Agilent技术)或者功½相同的仪器在100kHz下测

试电感值。

(2)

通过数码万用表34420A（Agilent技术）或者3541(HIOKI)测试直

流电阻。（环境温度为25°C）

(3)

允许最大直流电的范围是以下两者中比较小的一个：引起电感值

从最初值降½30%，或者线圈温度升高40°C。

（参考周围环境温度20°C）。
