10117770-G52B14ALF datasheet, PDF

10117770-G52B14ALF: DescriptionRectangular Power Connector, 14 Contact(s), Male, Surface Mount Terminal; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10117770-G52B14ALF Overview

Rectangular Power Connector, 14 Contact(s), Male, Surface Mount Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Objectid	1246602062
body width	0.24 inch
subject depth	0.244 inch
body length	0.63 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Connector type	RECTANGULAR POWER CONNECTOR
insulator material	POLYETHYLENE
Total number of contacts	14
Contact point gender	MALE
Terminal pitch	2.0066 mm
PCB contact pattern	RECTANGULAR
Termination type	SURFACE MOUNT
Contact completed and terminated	TIN OVER NICKEL
contact mode	RECTANGULAR
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
PCB contact row spacing	5.588 mm
Plating thickness	30u inch
Contact style	SQ PIN-SKT
Insulator color	BLACK
Match contact row spacing	0.079 inch
Number of connectors	ONE
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
Guideline	UL
Is it Rohs certified?	Yes

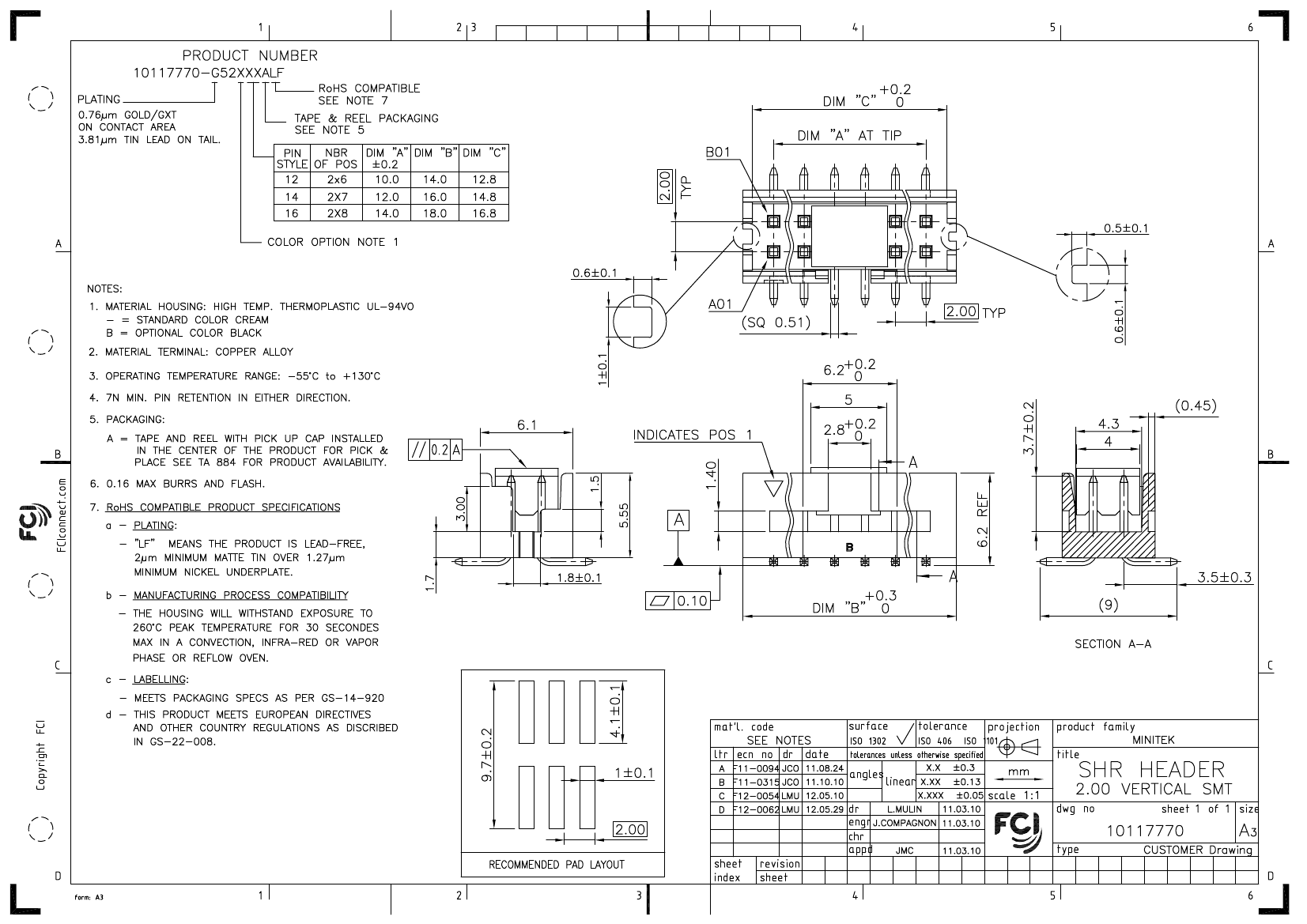

PDS: Rev :D

STATUS:Released

Printed: Oct 02, 2013
