TECHNICAL DATA SHEET
DIN 41626
Coax Insert

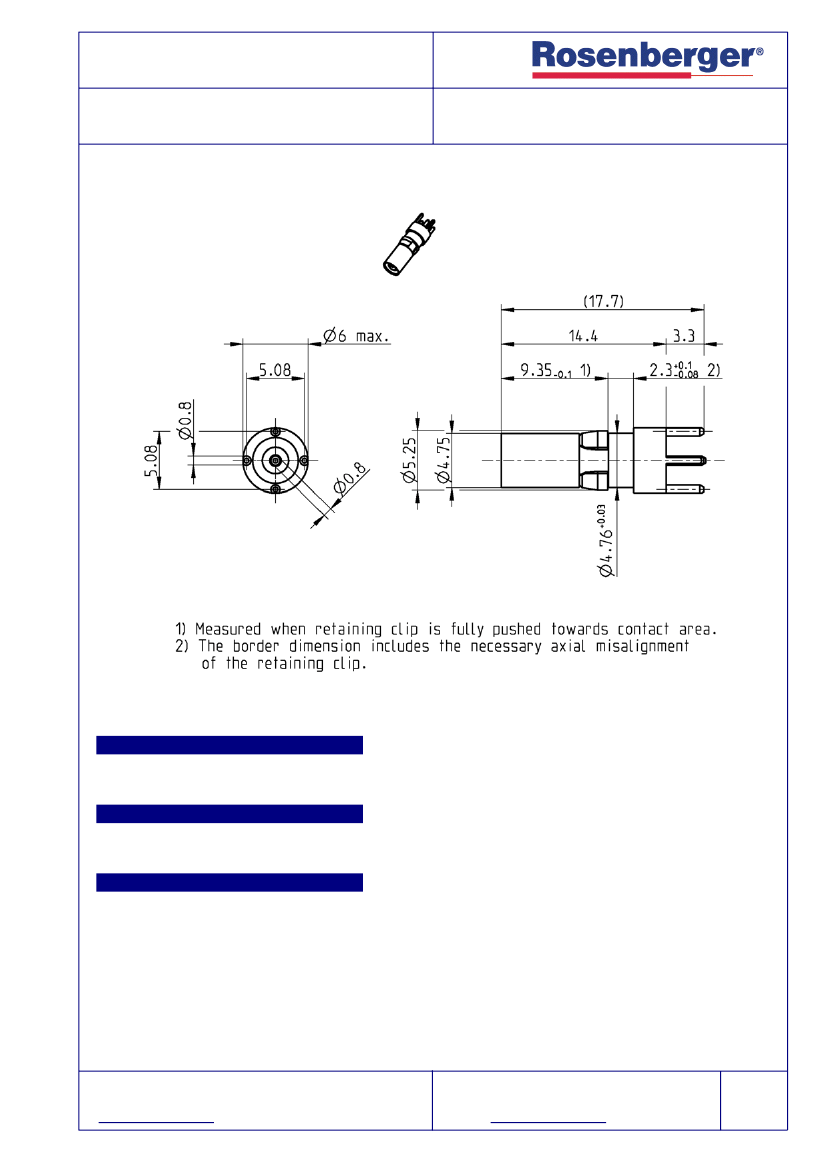

STRAIGHT PLUG PCB
45S101-400L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
DIN 41626/2, BS 9525 F0011
Documents
PCB layout
B 39
Material and plating
Connector parts
Center contact
Outer contact
Body
Clip
Dielectric
Material
CuBe
CuBe
Brass
CuBe
PTFE
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Gold, 0.15 µm
Nickel, 2.5-5 µm
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
DIN 41626
Coax Insert
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
- VSWR in application depends decisive on PCB layout -
STRAIGHT PLUG PCB
45S101-400L5
50
Ω
DC to 2 GHz
≥
20 dB
≤
0.05 x
f(GHz)
dB
≥
200 MΩ
≤
10 mΩ
≤
3 mΩ
750 V rms
250 V rms
≥
80 dB up to 0.5 GHz
≥
65 dB up to 1.5 GHz
Mechanical data
Mating cycles
Center contact captivation
Connector captivation in plastic
Engaging and disengaging force
≥
≥
≥
≤
500
10 N
52 N
10 N
Environmental data
Temperature range
Climatic class
Max. soldering temperature
2002/95/EC (RoHS)
-55°C to +125°C
IEC 60068-2-1 55/125/21
IEC 60068-2-2
IEC 60068-2-3
IEC 61760-1, +260°C for 10 sec.
compliant
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
100 pcs in blister
1.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Inge Mühlauer
Date
13/09/04
Approved
Rong Fang
Date
09.04.08
Rev.
a00
Engineering change number
07-0154
Name
S_Kra.
Date
09.04.08
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
