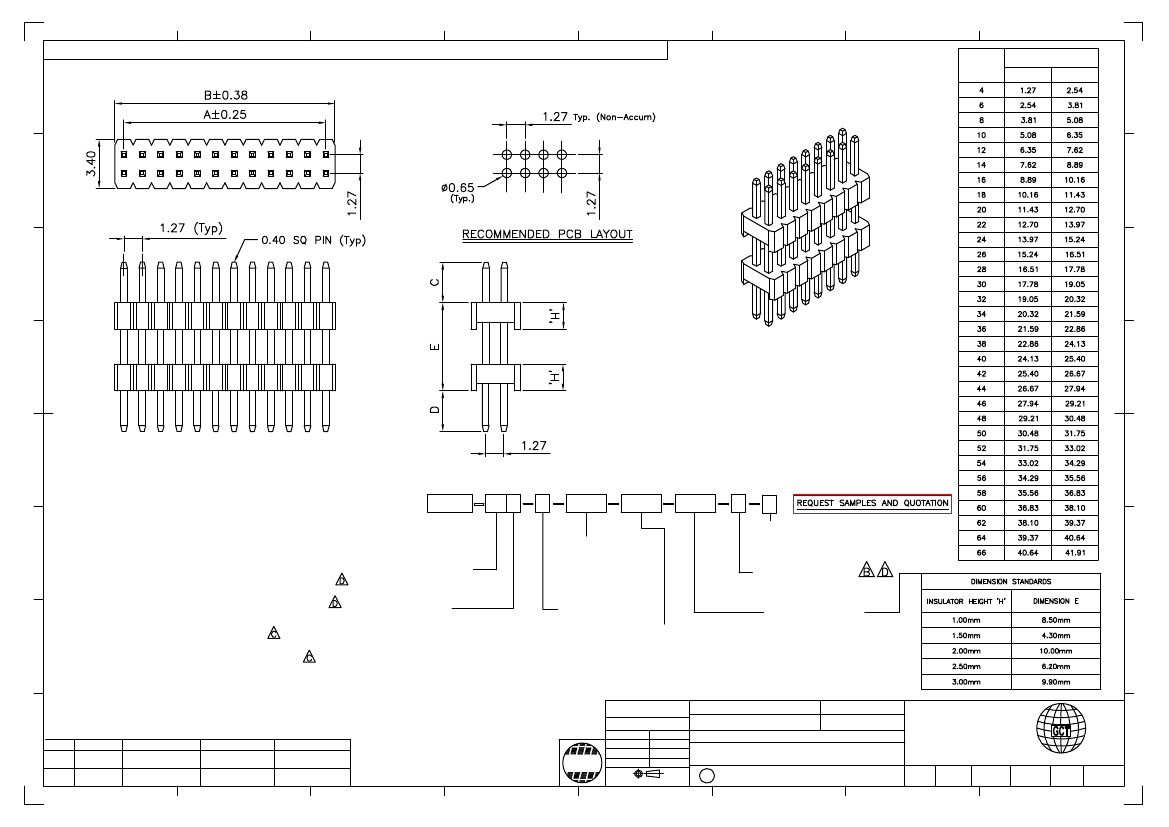

Global Connector Technology Ltd. - BD025: 1.27mm PITCH ELEVATED PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL
A
6
7
CONTACTS
A
8
DIMENSIONS
B
A
B
B
C
C
D
D
E
SPECIFICATIONS
规格:
CURRENT RATING
电流额定值：
1 AMP
INSULATOR RESISTANCE
绝缘电阻值：
1000 MEGOHMS MIN.
DIELECTRIC WITHSTANDING
耐电压：
AC 300 V
CONTACT RESISTANCE
接触电阻值：
20m
Ω
Max.
OPERATING TEMPERATURE
工½温度：
-40°C TO +105°C
CONTACT MATERIAL
端子物料：
COPPER ALLOY
F
INSULATOR MATERIAL
绝缘½物料
:
OPTIONS
可选物料
: POLYESTER
聚酯
,
LCP, UL 94-V0 (INSULATOR HEIGHT/
塑胶高度
H = A, B, L, F)
OPTIONS
可选物料
: POLYAMIDE
聚醯胺
,
NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/
塑胶高度
H = K)
SOLDERING PROCESS
可焊性
:
LCP (OPTION
可选物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
G
WAVE
波峰焊
: 250°C for 5-10 sec
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
NYLON 6T (OPTION
可选物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BD050
BD055
BD060
BD064
BD065
BD067
E
Ordering Grid
BD025
XX X
X
XXXX
XXXX
XXXX
X
X
Packing Options
G = Plastic Box (Standard)
D = Tube
E = Tube with Cap
Insulator Material
L = LCP (Insulator H = A, B, L, F)
N = Nylon 6T (Insulator H = K)
No. of Contacts
04 to 66
Contact Plating
A = Gold Flash All Over
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Standard = Gold Flash All Over
Dimension C (1/100mm)
(Post Height)
Standard - 2.80mm = 0280
or specify Dimension C
e.g. 0250 = 2.50mm
Tol +/- 0.2mm
Insulator
Height 'H'
K = 1.00mm
A = 1.50mm
B = 2.00mm
L = 2.50mm
F = 3.00mm
Standard = 2.50mm
F
Dimension E (1/100mm)
(Stack Height)
Dimension D (1/100mm)
Minimum = 2 x 'H'
(Tail Length)
or specify Dimension E
Standard - 3.00mm = 0300
(See table opposite for Standards)
or specify Dimension D
e.g. 0250 = 2.50mm
e.g. 0250 = 2.50mm
Tol +/- 0.2mm
Tol +/- 0.2mm
Part Number:-
Date:-
G
Tolerances
(Except as noted)
Dimensions in mm
X. ± 0.30
X.X ± 0.20
X.XX ± 0.15
X.XXX ± 0.10
X.°±5°
.X°±2°
.XX°±1°
.XXX°±0.5°
BD025
Description:-
28 DEC 07
H
By
DETAIL
REV
DATE
LYH
DRAWING
RELEASE
A
28/12/07
PN
AE
AE
INSULATOR MATERIAL
UPDATED FOR SPECIFIC
INSULATOR HEIGHTS
STANDARD INSULATOR
SOLDER TEMP & MATES
WITH INFO. UPDATED
MATERIAL CHANGED
B
27/04/09
C
27/07/09
D
07/08/09
RoHS
3
4
1.27mm PITCH ELEVATED PIN HEADER , DUAL ROW,
THROUGH HOLE, VERTICAL
Global
Connector
Technology
www.globalconnectortechnology.com
Scale
NTS
H
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
D
Material
See Note
Drawn by
LYH
E & OE
Sheet No.
1/1
