M85049/39-23N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/39-23N

M85049/39-23N: Descriptioncircular mil spec backshells strn rlf nonself LK SH SZ 23 NI; CategoryThe connector Connector bracket; File Size50KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

M85049/39-23N Overview

circular mil spec backshells strn rlf nonself LK SH SZ 23 NI

M85049/39-23N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Related military specifications	MIL-DTL-38999
Connector bracket type	CIRCULAR CONN ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Material	ALUMINUM ALLOY
Military connector accessories name	STRAIN RELIEF
Housing size	23

Preview

Download Datasheet

View All

Self-Locking or Non-Self-Locking

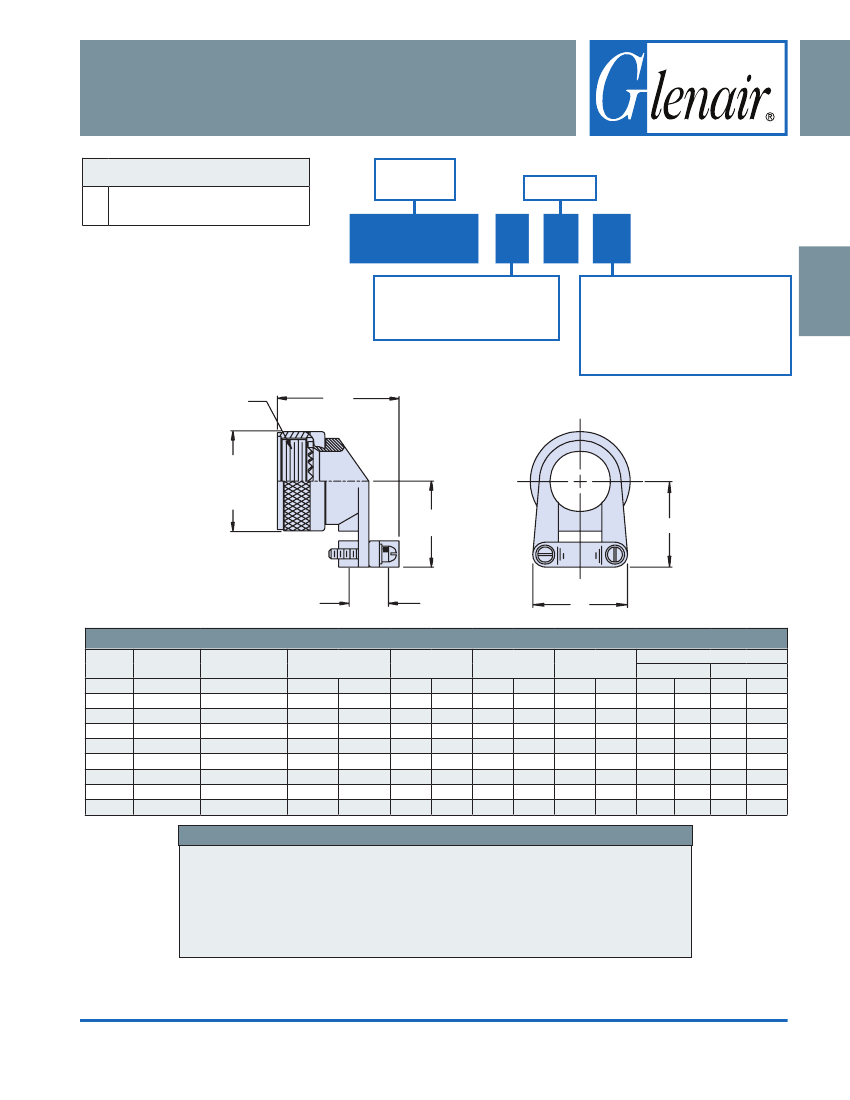

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series III & IV

EN3645

Basic

Part Number

Shell Size

FOR NEW DESIGN

USE AS85049/126

M85049/39

Material and Finish Designator

= Aluminum, Black Anodize

= Aluminum, Electroless Nickel

= 300 Series Steel, Passivated

= Aluminum, 500 Hour Cadmium

Olive Drab over Electroless Nickel

= Self-Locking

Use Dash for Non-Self-Locking

= Non-Detented

A Thread

Self Locking

Only

Cable

Entry

TABLE I: Shell Size, Cable Entry and Backshell Dimensions

Shell

Size

Shell Size

Ref.

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

Ø E Max

Self-Locking Only

.858

(21.8)

.984

(25.0)

1.157

(29.4)

1.279

(32.5)

1.406

(35.7)

1.516

(38.5)

1.642

(41.7)

1.768

(44.9)

1.889

(48.0)

Max

1.01 (25.7)

1.21 (30.7)

1.26 (32.0)

1.41 (35.8)

1.51 (38.4)

1.26 (32.0)

1.76 (44.7)

2.91 (73.9)

Max

1.00 (25.4)

1.10 (27.9)

1.25 (31.8)

1.30 (33.0)

1.35 (34.3)

1.60 (40.6)

1.75 (44.5)

1.85 (47.0)

Max

.85

(21.6)

.90

(22.9)

1.10 (27.9)

1.15 (29.2)

1.30 (33.0)

1.50 (38.1)

1.60 (40.6)

1.70 (43.2)

1.80 (45.7)

Cable Entry

Min

Max

.098 (2.5) .234 (5.9)

.153 (3.9) .234 (5.9)

.190 (4.8) .328 (8.3)

.260 (6.6) .457 (11.6)

.283 (7.2) .614 (15.6)

.325 (8.3) .634 (16.1)

.343 (8.7) .698 (17.7)

.381 (9.7) .823 (20.9)

.418 (10.6) .853 (21.7)

APPLICATION NOTES

Assembly to be identified with manufacturer’s name and part number, space permitting.

Cable Entry is defined as the accommodation entry for the wire bundle or cable.

Dimensions are not intended for inspection criteria.

For complete dimensions, see the applicable Military Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-63

E-Mail: sales@glenair.com

AS85049

AS85049/39

90° Strain Relief

M85049/39-23N Related Products

	M85049/39-23N	M85049/39-9S	M85049/39-21N	M85049/39-11S	M85049/39-21A	M85049/39S15N	M85049/39-25N	M85049/39S23S	M85049/39-19S	M85049/39-13N
Description	circular mil spec backshells strn rlf nonself LK SH SZ 23 NI	circular mil spec backshells strn rlf nonself LK SH SZ 09 steel	circular mil spec backshells strn rlf nonself LK SH SZ 21 NI	circular mil spec backshells strn rlf nonself LK SH SZ 11 steel	circular mil spec backshells strn rlf nonself LK SH SZ 21 blk anodize	circular mil spec backshells strain rlf self LK SH SZ 15 NI	circular mil spec backshells strn rlf nonself LK SH SZ 25 NI	circular mil spec backshells strain rlf self LK SH SZ 23 steel	circular mil spec backshells strn rlf nonself LK SH SZ 19 steel	circular mil spec backshells strn rlf nonself LK SH SZ 13 NI
Maker	Glenair	-	Glenair	-	Glenair	-	Glenair	Glenair	-	Glenair
Reach Compliance Code	compliant	compli	compliant	-	compliant	compliant	compliant	compliant	-	compliant
Factory Lead Time	8 weeks	-	8 weeks	-	8 weeks	-	8 weeks	10 weeks	-	8 weeks
Related military specifications	MIL-DTL-38999	MIL-DTL-38999	MIL-DTL-38999	-	MIL-DTL-38999	MIL-DTL-38999	MIL-DTL-38999	MIL-DTL-38999	-	MIL-DTL-38999
Connector bracket type	CIRCULAR CONN ACCESSORY	CIRCULAR CONN ACCESSORY	CIRCULAR CONN ACCESSORY	-	CIRCULAR CONN ACCESSORY	CIRCULAR CONN ACCESSORY	CIRCULAR CONN ACCESSORY	CIRCULAR CONN ACCESSORY	-	CIRCULAR CONN ACCESSORY
DIN compliance	NO	NO	NO	-	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO	NO	-	NO
MIL compliance	YES	YES	YES	-	YES	YES	YES	YES	-	YES
Material	ALUMINUM ALLOY	STEEL	ALUMINUM ALLOY	-	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	STEEL	-	ALUMINUM ALLOY
Military connector accessories name	STRAIN RELIEF	STRAIN RELIEF	STRAIN RELIEF	-	STRAIN RELIEF	STRAIN RELIEF	STRAIN RELIEF	STRAIN RELIEF	-	STRAIN RELIEF
Housing size	23	9	21	-	21	15	25	23	-	13
