M85049/126S15A

Description
circular mil spec backshells strain reliefs 90deg self locking
CategoryThe connector
File Size170KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Environmental Compliance
Download Datasheet View All

M85049/126S15A Overview

circular mil spec backshells strain reliefs 90deg self locking

Self-Locking or Non-Self-Locking
CONNECTOR DESIGNATOR:
Dash No.
Table I
Page 62-34
Finish
Table II
Page 62-34
H
MIL-DTL-38999 Series III and IV
Product Series and
Basic Part Number

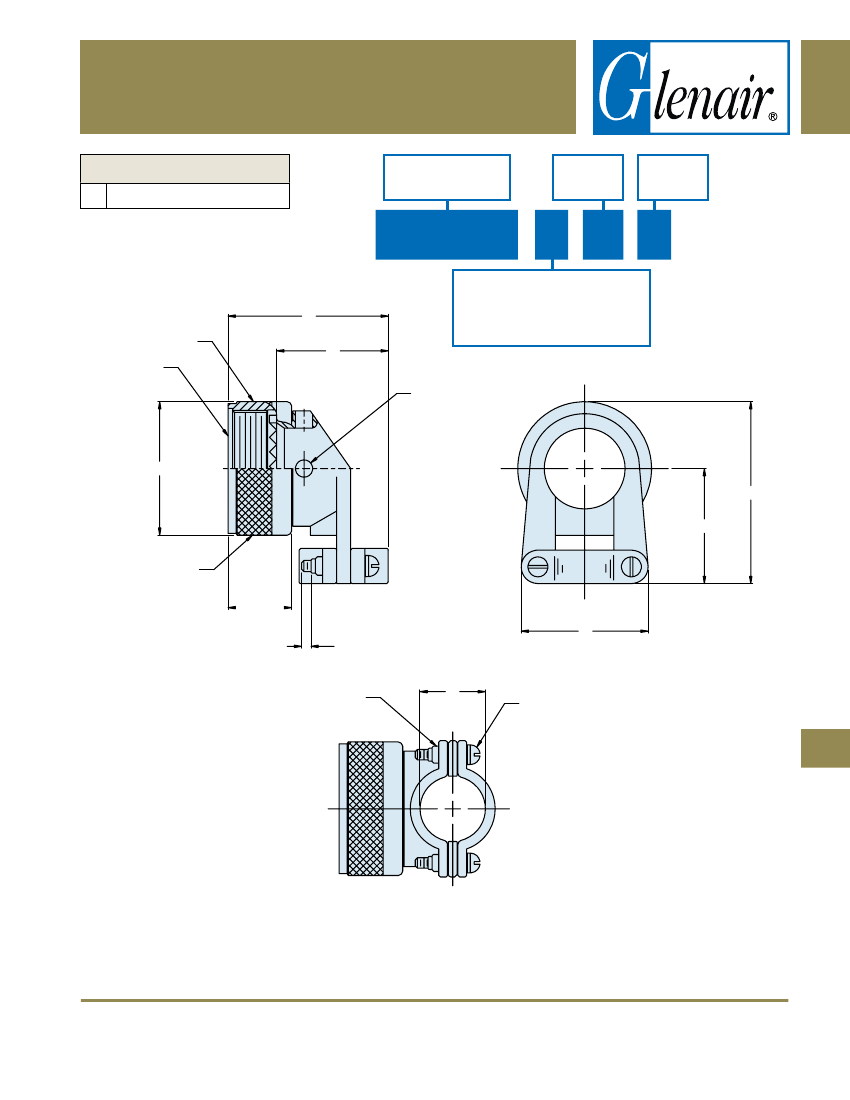

M85049/126
E
Coupling Nut
A Thread
Ø.125 (3.2) Drain Holes
3 Min, Equally Spaced
D
S
09
W
S
=
Detented Self-Locking
N
= Non-Detented Self-Locking
Use Dash (–) for Non-Self-Locking
(See Note 5)
B
G
F
Knurl Style
Optional
.660
(16.8)
Max
.060/.380
(1.52/9.65)
Screw
Extension
Captive
Self-locking Nut
-typ-
C
See Note 4
Screw
H
62
© 2012 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
62-33
Strain Reliefs
AS85049/126
