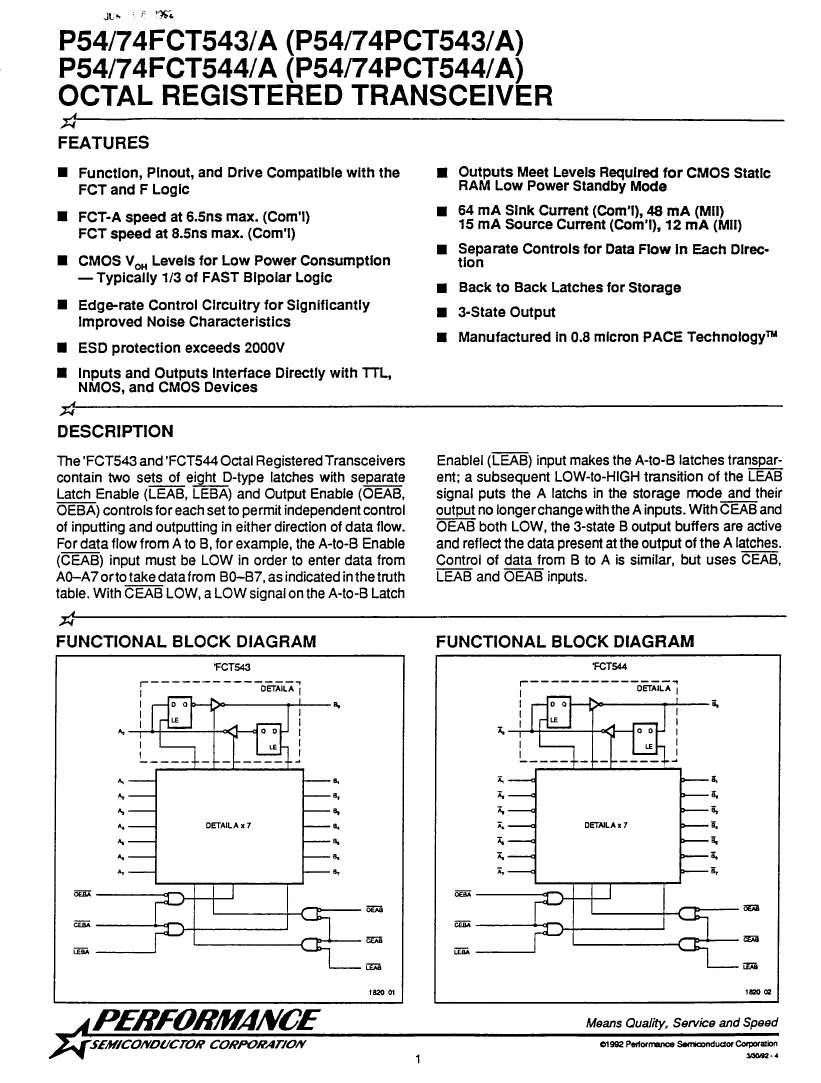

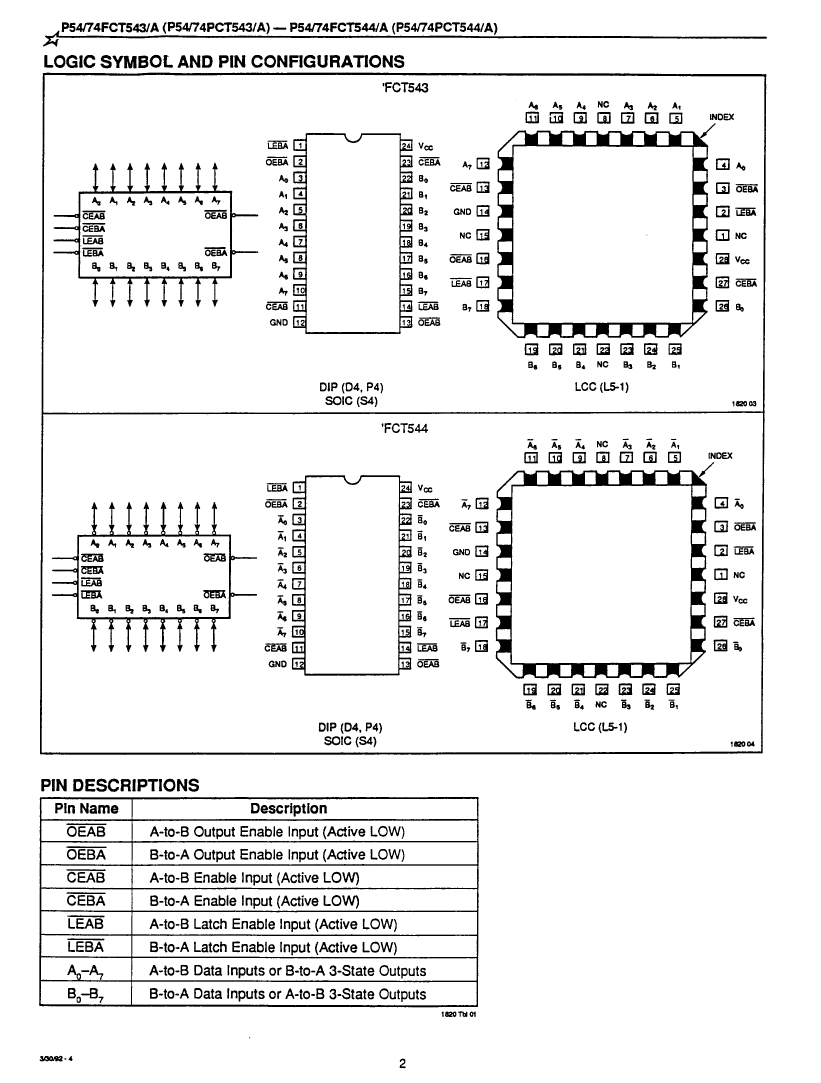

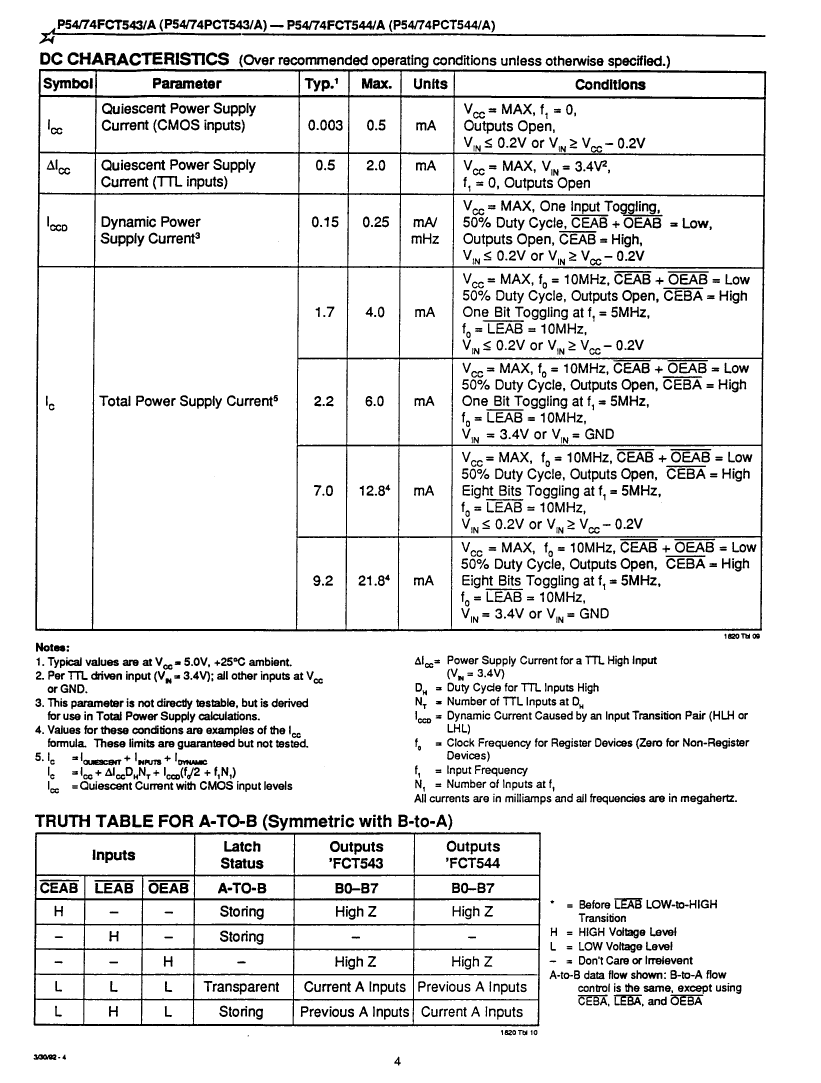

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24

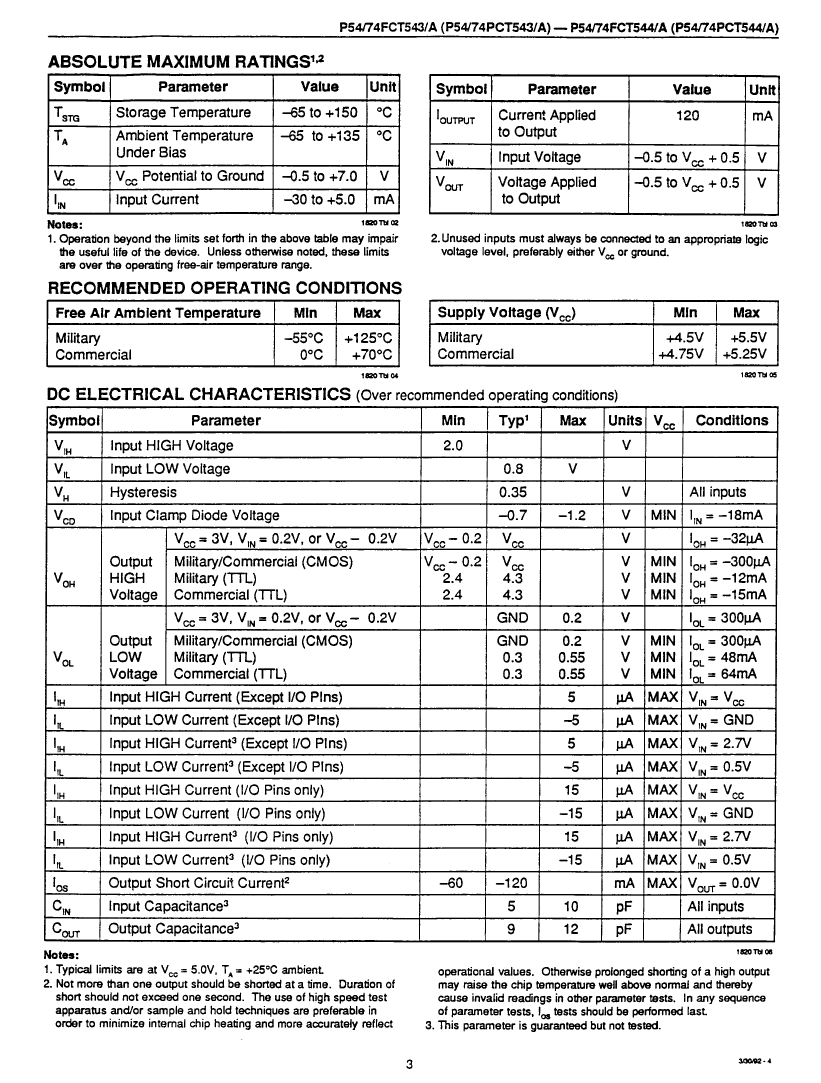

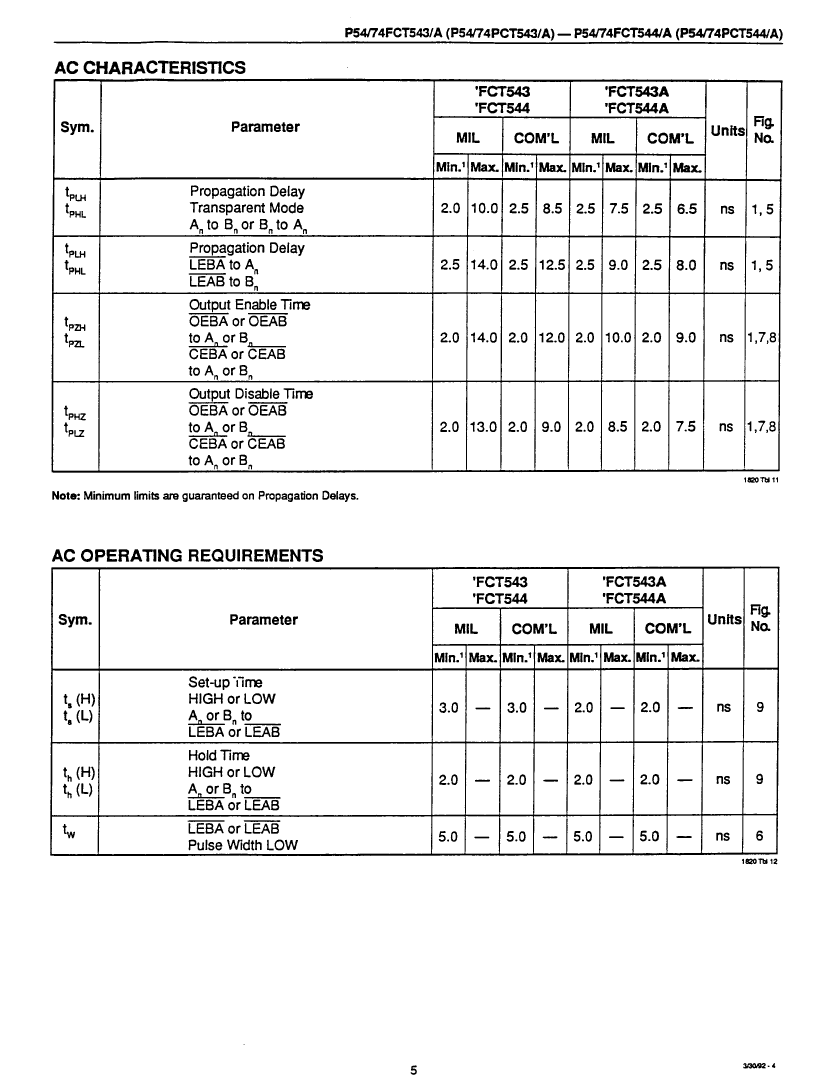

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP24,.3 |
| Reach Compliance Code | unknown |
| Control type | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL |
| JESD-30 code | R-XDIP-T24 |
| JESD-609 code | e0 |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER |
| MaximumI(ol) | 0.048 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 10 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| P54FCT543DMB | P54FCT544DMB | P54FCT543LMB | P54FCT544LMB | P54FCT544ALMB | P54FCT543ADMB | P54FCT543CTLB | P54FCT544TLB | |
|---|---|---|---|---|---|---|---|---|
| Description | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24 | Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP24 | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28 | Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC28 | Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC28 | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24 | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28 | Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Control type | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| JESD-30 code | R-XDIP-T24 | R-XDIP-T24 | S-XQCC-N28 | S-XQCC-N28 | S-XQCC-N28 | R-XDIP-T24 | S-XQCC-N28 | S-XQCC-N28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER |
| MaximumI(ol) | 0.048 A | 0.048 A | 0.048 A | 0.048 A | 0.048 A | 0.048 A | 0.048 A | 0.048 A |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 24 | 28 | 28 | 28 | 24 | 28 | 28 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | INVERTED | TRUE | INVERTED | INVERTED | TRUE | TRUE | INVERTED |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC |
| encapsulated code | DIP | DIP | QCCN | QCCN | QCCN | DIP | QCCN | QCCN |
| Encapsulate equivalent code | DIP24,.3 | DIP24,.3 | LCC28,.45SQ | LCC28,.45SQ | LCC28,.45SQ | DIP24,.3 | LCC28,.45SQ | LCC28,.45SQ |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | SQUARE | RECTANGULAR | SQUARE | SQUARE |
| Package form | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | IN-LINE | CHIP CARRIER | CHIP CARRIER |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Prop。Delay @ Nom-Sup | 10 ns | 10 ns | 10 ns | 10 ns | 7.5 ns | 7.5 ns | 6.1 ns | 10 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES | YES | NO | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD | THROUGH-HOLE | NO LEAD | NO LEAD |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | QUAD | QUAD | QUAD | DUAL | QUAD | QUAD |
| package instruction | DIP, DIP24,.3 | DIP, DIP24,.3 | QCCN, LCC28,.45SQ | QCCN, LCC28,.45SQ | QCCN, LCC28,.45SQ | - | QCCN, LCC28,.45SQ | QCCN, LCC28,.45SQ |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
