IDT70T3599S166BF8

Description
Dual-Port SRAM, 128KX36, 12ns, CMOS, PBGA208, 15 X 15 MM, 1.40 MM HEIGHT, 0.80 MM PITCH, FPBGA-208
Categorystorage    storage
File Size427KB,28 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric View All

IDT70T3599S166BF8 Overview

Dual-Port SRAM, 128KX36, 12ns, CMOS, PBGA208, 15 X 15 MM, 1.40 MM HEIGHT, 0.80 MM PITCH, FPBGA-208

IDT70T3599S166BF8 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerIDT (Integrated Device Technology)
Parts packaging codeBGA
package instructionTFBGA, BGA208,17X17,32
Contacts208
Reach Compliance Codenot_compliant
ECCN code3A991.B.2.A
Maximum access time12 ns
Other featuresFLOW-THROUGH OR PIPELINED ARCHITECTURE
Maximum clock frequency (fCLK)166 MHz
I/O typeCOMMON
JESD-30 codeS-PBGA-B208
JESD-609 codee0
length15 mm
memory density4718592 bit
Memory IC TypeDUAL-PORT SRAM
memory width36
Humidity sensitivity level3
Number of functions1
Number of ports2
Number of terminals208
word count131072 words
character code128000
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize128KX36
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeTFBGA
Encapsulate equivalent codeBGA208,17X17,32
Package shapeSQUARE
Package formGRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)225
power supply2.5,2.5/3.3 V
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum standby current0.015 A
Minimum standby current2.4 V
Maximum slew rate0.45 mA
Maximum supply voltage (Vsup)2.6 V
Minimum supply voltage (Vsup)2.4 V
Nominal supply voltage (Vsup)2.5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn63Pb37)
Terminal formBALL
Terminal pitch0.8 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperature20
width15 mm
Base Number Matches1
Features:
HIGH-SPEED 2.5V
256/128/64K x 36
IDT70T3519/99/89S
SYNCHRONOUS
DUAL-PORT STATIC RAM
WITH 3.3V OR 2.5V INTERFACE
– Data input, address, byte enable and control registers
– Self-timed write allows fast cycle time
Separate byte controls for multiplexed bus and bus
matching compatibility
Dual Cycle Deselect (DCD) for Pipelined Output Mode
2.5V (±100mV) power supply for core
LVTTL compatible, selectable 3.3V (±150mV) or 2.5V
(±100mV) power supply for I/Os and control signals on
each port
Industrial temperature range (-40°C to +85°C) is
available at 166MHz and 133MHz
Available in a 256-pin Ball Grid Array (BGA), a 208-pin
Plastic Quad Flatpack (PQFP) and 208-pin fine pitch Ball
Grid Array (fpBGA)
Supports JTAG features compliant with IEEE 1149.1
Due to limited pin count JTAG is not supported on the 208-
pin PQFP package
BE
3R
True Dual-Port memory cells which allow simultaneous
access of the same memory location
High-speed data access
– Commercial: 3.4 (200MHz)/3.6ns (166MHz)/
4.2ns (133MHz)(max.)
– Industrial: 3.6ns (166MHz)/4.2ns (133MHz) (max.)
Selectable Pipelined or Flow-Through output mode
Counter enable and repeat features
Dual chip enables allow for depth expansion without
additional logic
Interrupt and Collision Detection Flags
Full synchronous operation on both ports
– 5ns cycle time, 200MHz operation (14Gbps bandwidth)
– Fast 3.4ns clock to data out
– 1.5ns setup to clock and 0.5ns hold on all control, data, and
address inputs @ 200MHz
BE
3L

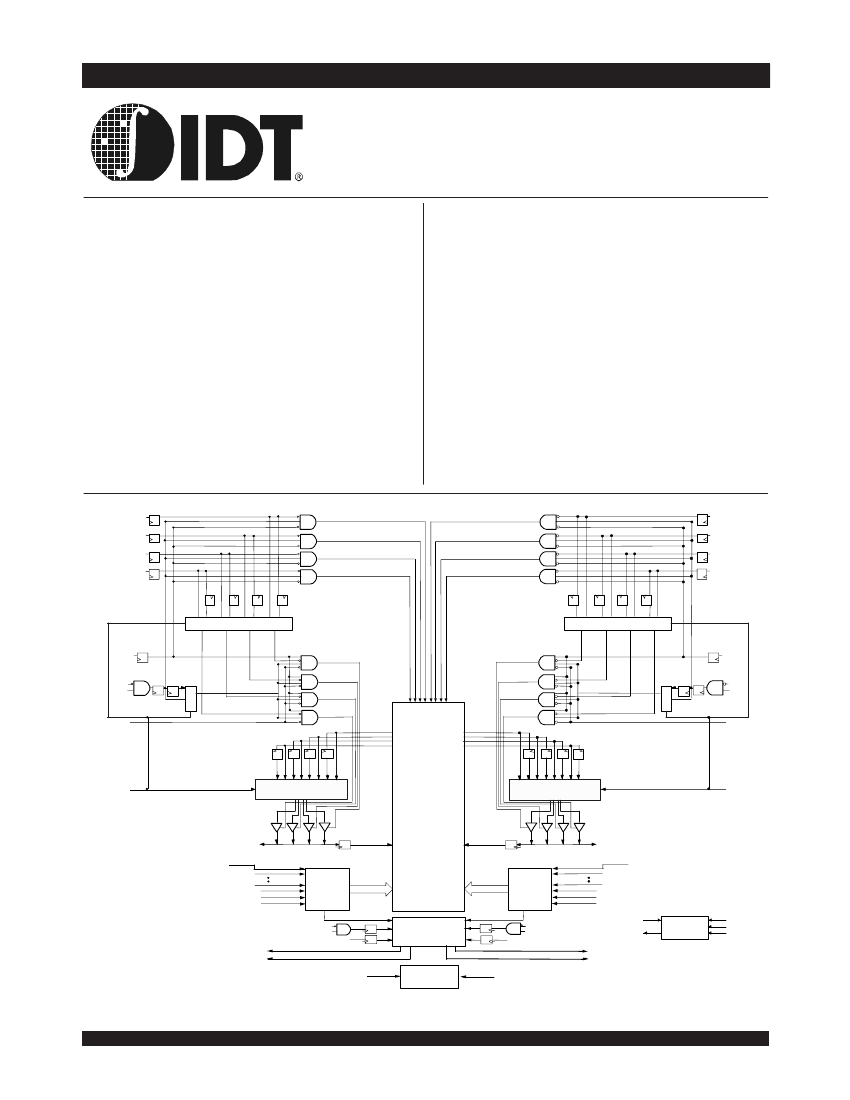

Functional Block Diagram
BE
2L
BE
1L
BE
0L
BE
2R
BE
1R
BE
0R
FT/PIPE
L
1/0
0a 1a
a
0b 1b
b
0c 1c
c
0d 1d
d
1d 0d
d
1c 0c
c
1b 0b
b
1a 0a
a
1/0
FT/PIPE
R
R/W
L
R/W
R
CE
0L
CE
1L
1
0
1/0
B B
WW
0 1
L L
B B B B
WWW W
2 3 3 2
L L R R
B B
WW
1 0
R R
1
0
1/0
CE
0R
CE
1R
OE
L
OE
R
Dout0-8_L
Dout9-17_L
Dout18-26_L
Dout27-35_L
Dout0-8_R
Dout9-17_R
D out18-26_R
D out27-35_R
1d 0d 1c 0c 1b 0b 1a 0a
0a 1a 0b 1b 0c 1c 0d 1d
0/1
,
FT/PIPE
R
FT/PIPE
L
0/1
a bc d
dcb a
256/128/64K x 36
MEMORY
ARRAY
I/O
0L
- I/O
35L
Din_L
Din_R
I/O
0R
- I/O
35R
CLK
L
A
17L
(1)
A
0L
REPEAT
L
ADS
L
CNTEN
L
A
17R(1)
CLK
R
,
Counter/
Address
Reg.
ADDR_L
ADDR_R
Counter/
Address
Reg.
A
0R
REPEAT
R
ADS
R
CNTEN
R
TDI
TCK
TMS
TRST
CE
0 L
CE1 L
R /
W
L
INTERRUPT
COLLISION
DETECTION
LOGIC
CE
0 R
CE1 R
R/
W
R
JTAG
TDO
COL
R
INT
R
COL
L
INT
L
ZZ
L
(2)
NOTES:
1. Address A
17
is a NC for the IDT70T3599. Also, Addresses A
17
and A
16
are NC's for the IDT70T3589.
2. The sleep mode pin shuts off all dynamic inputs, except JTAG inputs, when asserted. All static inputs, i.e., PL/FTx and OPTx
and the sleep mode pins themselves (ZZx) are not affected during sleep mode.
ZZ
CONTROL
LOGIC
ZZ
R
(2)
5666 drw 01
APRIL 2004
DSC 5666/6
1
©2004 Integrated Device Technology, Inc.
