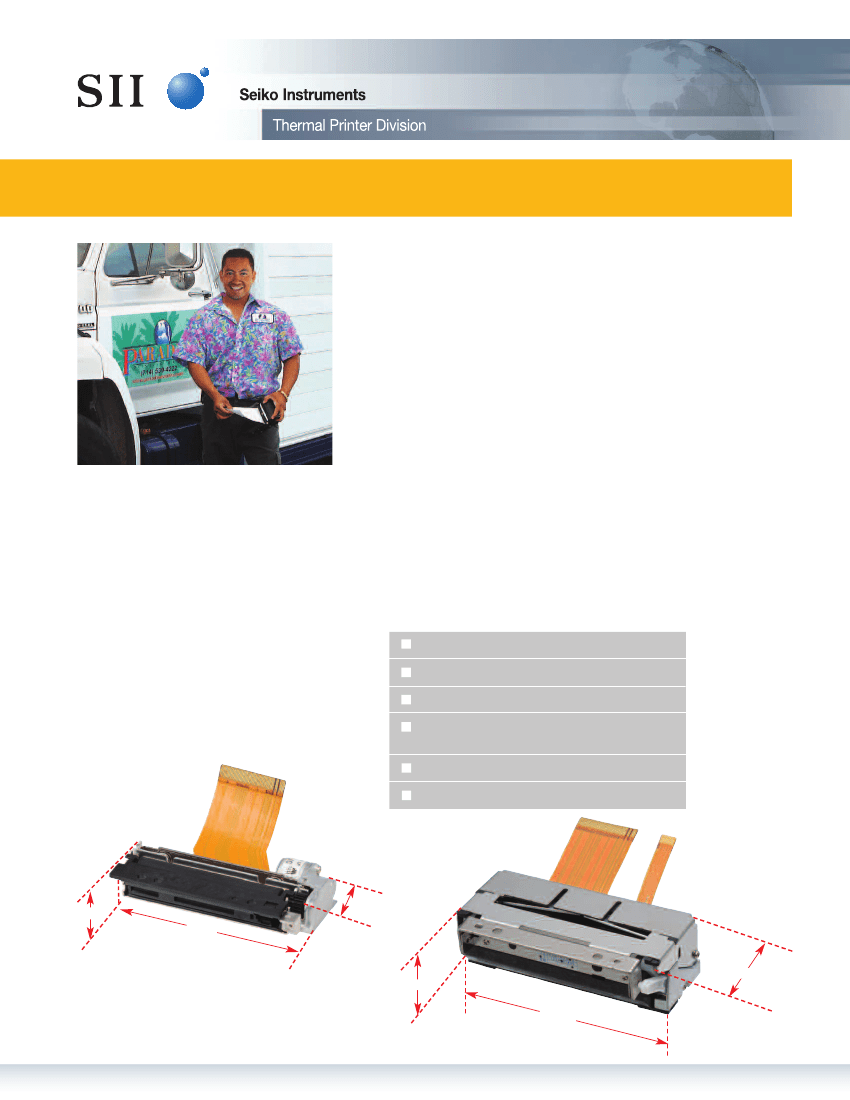

LTPD/CAPD Series
Low Voltage
Printer
Mechanisms
Small
LTPD/CAPD series mechanisms free up critical design real estate.
The new mechanisms provide a smaller overall form factor,
innovative angled paper guide requiring less depth, and a smaller
pitch flexible print circuit (FPC) cable.
Fast
LTPD/CAPD series mechanisms are fast, rated for up to 100
mm/second print speeds. This gives mobile devices a much
needed performance boost.
Reliable
LTPD/CAPD series mechanisms offer a minimum of 50 km of total
printing and 100 million pulses. CAPD models offer a new built-in
auto-cutter design, improving cutter reliability. The result: reliable
media output, every time.
Flexible
LTPD/CAPD series mechanisms offer a wide array of form factor
choices to provide versatility and flexibility for smoother integration.
Options include EZ-OP clamshell-style and auto-loading models,
ASIC and interface board solutions, and both horizontal and vertical
mechanical orientation designs.
2” and 3” print width models
High speed printing (up to 100 mm/second)
Choice of horizontal and vertical orientations
Designing mobile devices is increasingly
challenging. Customers expect each new
product generation to be smaller and
faster, with long battery life. To be
competitive, device manufacturers must
reduce product size and increase speed.
Time to market is crucial and reliability is
non-negotiable.
New low voltage LTPD/CAPD series
printer mechanisms tackle these
challenges with dramatic advances in
design flexibility, reliability, and printing
performance.
EZ-OP clamshell and auto-loading paper
replacement options
Platen latch for better shock absorption
Built-in auto-cutter (CAPD models)
15 mm
69 m
m
30 mm
35.4 mm
26.9 mm
2” LTPD model and 2” CAPD model.
83.1 m
m
Product Specifications
Model
LTPD245
LTPD345
CAPD245
CAPD345
Thermal line dot printing
Method
384
384
576
576
Number of dots/line
8
Resolution(dots/mm)
58
+0-1
58
+0-1
80
+0-1
80
+0-1
Paper width (mm)
Printing
48
48
72
72
Printing width (mm)
100
100
80
80
Speed (max mm/sec)
Curved
Paper path
By thermistor
Head temperature
By mechanical switch
Platen position detection
Sensors
By photo interrupter
Out of paper detection
-
-
By photo interrupter
Cutter home position detection
Power
Operating Voltage (Vdd)
2.7 to 3.6/4.75 to 5.25
supply (V)
-
-
6.5 to 9.5
4.75 to 9.5
Operating Voltage (Vp)
3.60 (9.5V/64dots)
3.66 (9.5V/64dots)
3.60 (9.5V/64dots)
3.66 (9.5V/64dots)
Head
Peak
5.40 (9.5V/96dots)
5.49 (9.5V/96dots)
5.40 (9.5V/96dots)
5.49 (9.5V/96dots)
current (A)
0.6
Motor
0.6
0.6
0.6
-
0.7
0.7
-
Cutter motor
100 million
Service life
Pulse activation (pulses)
100 million
50 *
Abrasion resistance (km)*
50 *
Operating temperature (ºC)
-10 to 50
-10 to 50
83.1 x 35.4 x 26.9 **
Dimensions
Horizontal
91.0 x 30.0 x 15.0 **
105.1x35.4x27.2***
69.0 x 30.0 x 15.0 **
(W x D x H mm)*
Vertical
91.0 x 15.0 x 30.0 **
69.0 x 15.0 x 30.0 **
Approx. 125
Mass(g)
Approx. 58
Approx. 148
Approx. 40
Slide cutting
-
-
Method
54 to 78*
-
Paper thickness (um)
-
54 to 90*
Cutting type
Full cut and partial cut (1.5±0.5mm tab left at the center)
-
-
Auto-cutter
Operating time (sec/cycle)
-
-
Approx 1.0
Minimum paper cutting
length (mm)
-
-
10
Cutting frequency
-
(max cuts/min)
-
30
-
-
Paper cutting (cuts)
Life span
500,000 *
*Use recommended thermal paper. **Excluding convex section.
***Excluding mounting part. Specifications are subject to change without notice.
IF Board Specifications
IFD501-01UK-E
CPU
Corresponding Model
Operating Voltage (V)
Character matrix (H x W dots)
Optional font
Downloaded character
User-defined character
Extend graphics character set
Katakana character set
Codepage 1252
JIS 1&2 level kanji
Optional Cables
IFD501-01SK-E
Accessory
Power Cable
Switch Cable
Serial Cable
USB Cable
Product
DC-04100A-E
OC-D1430A-E
OC-D0730A-E
IFC-U01-1-E
Character
Type
Communication interface
Dimensions (W x D x H mm)
PTD50P01-E
LTPD245, LTPD345 Series
CAPD245, CAPD345 Series
Vp:4.75 to 9.5
16 dots character: 16 x 8, 16 x 16
24 dots character: 24 x 12, 24 x 24
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Serial
USB(2.0)
(RS-232C)
69.0 x 50.0 x 14.0
ASIC Specifications:
PTD50P01-E
Corresponding model
Package form
Operating voltage (V)
Operating frequency (MHz)
Configuration
Communication interface
Character type
LTPD245, LTPD345 series
CAPD245, CAPD345 series
120pin QFP
Vp:4.75 to 9.5,Vcc:3.0 to 3.6
12MHz±0.01%
C-MOS LSI
Parallel, Serial, USB
Extended graphics character set
Other characters available
With CGs or external memory
16 dot character: 16 x 8, 16 x 16
24 dot character: 24 x 12, 24 x 24
16.0 x 16.0 x 1.7
Character matrix
(H x W dots)
Dimensions
(W x D x H mm)
Seiko Instruments USA Inc.
Thermal Printer Division
2990 Lomita Blvd., Torrance, CA 90505
Telephone (310) 517-7778
Facsimile (310) 517-8154
Email: printerinfo@seikoinstruments.com
www.siiprinters.com
