MT323048

Description
MT323048
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size434KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

MT323048 Online Shopping

Suppliers Part Number Price MOQ In stock
MT323048 - - View Buy Now

MT323048 Overview

MT323048

MT323048 Parametric

Parameter NameAttribute value
Power relay typeIndustrial panel plug-in
Terminal limit breaking current (A)10
Coil excitation systemMonostable, DC
Coil Power Rating Class (mW)1000 – 1500
Coil Power Rating (DC) (mW)1200
Coil resistance (Ω)2000
Coil characteristicsLED, UL Coil Insulation Class B, Electrical Indicator Light
Coil Voltage Rating (VDC)48
Terminal switch load (minimum)1mA @ .02V
Terminal switching voltage (max) (VAC)400
Terminal Voltage Rating (VAC)240
Insulation leakage between terminal and coil4 mm [ .157 in ]
Initial dielectric between terminal and coil (Vrms)2500
Initial dielectric between adjacent terminals (Vrms)2500
Insulation leakage type (mm)3 – 5.5
Terminal limit continuous current (A)10
Terminal limit short-time current (A)10
Terminal limit closing current (A)20
Open terminal insulation initial dielectric (Vrms)1500
Drive SystemDC
Initial dielectric (V) for insulation between terminals and coil2500
Coil/terminal insulation initial dielectric type (V)1500 – 2500
product weight80 g [ 2.824 oz ]
Terminal arrangement3 Form C (CO)
Terminal current type (A)5 – 10, 16
Contact Current Rating (Max) (A)10
Terminal materialAgNi90/10
Number of terminal poles3
Terminal typePlug-in
Relay installation typesocket
Product height57 mm [ 2.244 in ]
Product length35.6 mm [ 1.402 in ]
Product width35.5 mm [ 1.398 in ]
Width type (mechanical) (mm)30 – 40
Insulation gap between terminal and coil2.8 mm [ .11 in ]
Insulation gap type (mm)2.5 – 4
Length type (mechanical) (mm)35 – 40
Working group temperature range (°C)-40 – 60
Environmental Protection CategoryRTI
Ambient temperature (maximum)60 °C [ 140 °F ]
Ambient temperature category (°C)50 – 70
Encapsulation methodCarton
General Purpose Relays
Industrial Relays
Multimode Relay MT
n
n
n
n
n
n

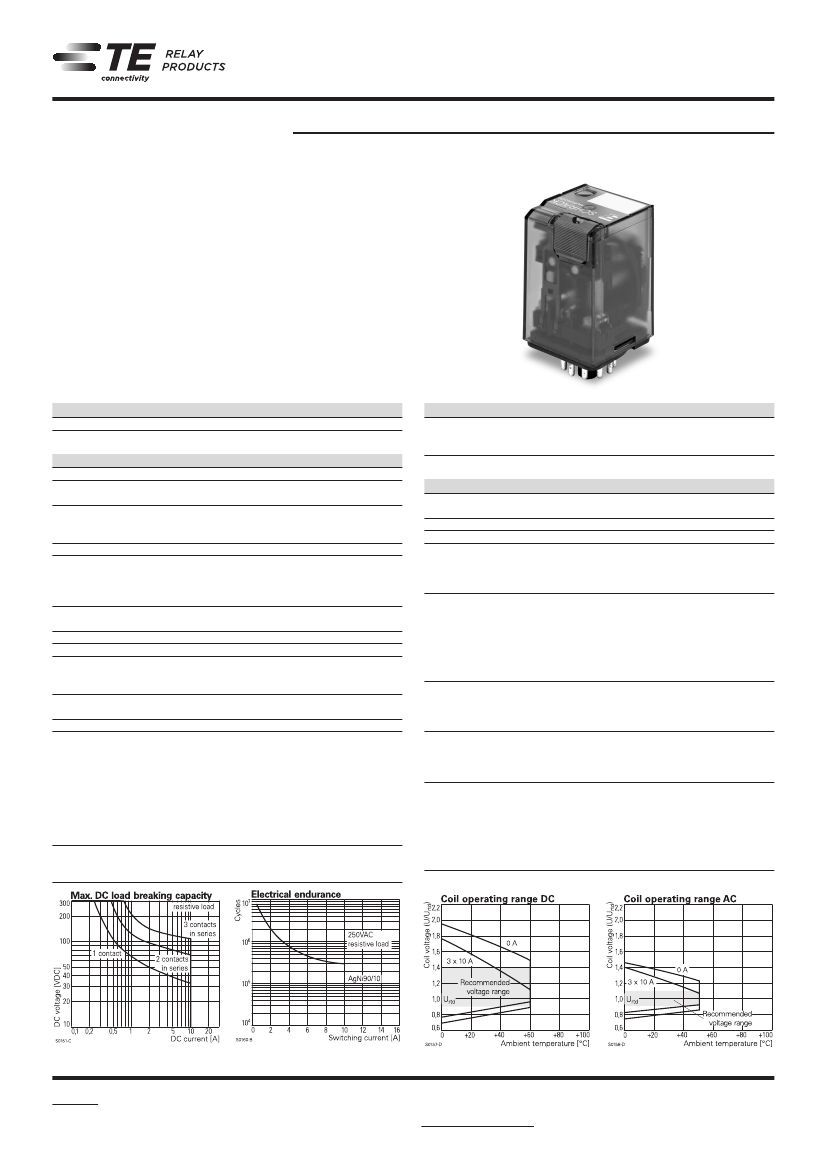

SCHRACK
2/3 pole 10A, 2 form C (CO) or 3 form C (CO) contacts
DC and AC coils
Mechanical indicator as standard
Electrical indicator
New test system with front operated finger protected
push-to-test button and integral locking test tab
White write on panel
Typical applications
Mechanical engineering, plant control
F0161-B
VZ
Contact Data
(continued)
Mechanical endurance
DC coil
AC coil
20x10
6
operations
20x10
6
operations
Approvals
VDE REG.-Nr. 6182, UL E214025
Technical data of approved types on request
Contact Data
Contact arrangement
2 form C (CO) or 3 form C (CO)
Rated voltage
240VAC
Max. switching voltage
400VAC
Rated current
10A
10A
4A
Limiting making current, max. 20ms 20A
20A
8A
Limiting breaking current
10A
10A
4A
Switching power
2500VA
2500VA
500 VA
Contact material
AgNi90/10 AgNi90/10 AgNi90/10
-
gold plated gold plated
Contact style
single
single
bifurcated
contact
contact
contact
Min. recommended contact load
12V
20mV
20mV
at 10mA
at 1mA
at 1mA
Initial voltage drop
30mV at 100mA/6VAC/1kHz
Frequency of operation, with/without load
1200/6000h
-1
Operate time max., DC coil
15ms
Release time max., DC coil
10ms
Bounce time max., DC coil, form A/form B
4/5ms
Contact ratings
Type
Contact
IEC 61810
MT22 DC coil C (CO)
MT22 AC coil C (CO)
MT32 DC coil C (CO)
MT32 AC coil C (CO)
MT2
C (CO)
MT2
A (NO)/B (NC)
MT2
C (CO)
MT3
C (CO)
UL 508
MT3
A (NO)/B (NC)
MT3
C (CO)
Load
Cycles
Coil Data
Coil voltage range
Operative range, IEC 61810
Coil insulation system according UL
Coil versions, DC coil
Coil code
Rated
Operate
STD PD
3)
voltage
voltage
VDC
VDC
006
0A6
6
4.5
012
0B2
12
9.0
024
0C4
24
18.0
048
0E8
48
36.0
060
0G0
60
45.0
110
1B0
110
82.5
220
2C0
220
165.0
6 to 220VDC
6 to 230VAC
2
class 130 (B)
Release
voltage
VDC
0.6
1.2
2.4
4.8
6.0
11.5
22.0
Coil
Rated coil
resistance
power
Ω±10%
1)2)
W
32
1.1
110
1.3
475
1.2
2000
1.2
2850
1.3
10000
1)
1.2
40000
2)
1.2
1) Coil resistance ±12%, 2) Coil resistance ±15%
3) Protection diode PD; standard polarity: 2-pole relays: +2 / -7, 3-pole relays: +2 / -10
All figures are given for coil without pre-energization, at ambient temperature +23°C
10A, 250VAC, cosφ=1, 35°C
100x10
3
10A, 250VAC, cosφ=1, 35°C
20x10
3
10A, 250VAC, cosφ=1, 35°C
100x10
3
10A, 250VAC, cosφ=1, 35°C
20x10
3
10A, 250VAC, resistive, 40°
30x10
3
B300 40°C
6.000
4A, 25VAC, resistive, bifurcated, 40°C 30x10
3
10A, 250VAC, resistive, 40°C
30x10
3
B300, 40°C
6.000
4A, 25VAC, resistive, bifurcated, 40°C 30x10
3
Coil versions, AC coil, 50/60Hz
Coil
Rated
Operate
code
voltage
voltage
50/60Hz
VAC
VAC
006
6
4.8/5.1
012
12
9.6/10.2
024
24
19.2/20.4
048
48
38.4/40.8
060
60
48.0/51.0
115
115
92.0/97.8
230
230
184.0/195.5
Release
voltage
50/60Hz
VAC
1.8
3.6
7.2
14.4
18.0
34.5
69.0
Coil
resistance
Ω±10%
1)
5.3
24
86
345
544
2000
8300
1)
Rated coil
power
50/60Hz
VA
2.29/1.98
2.19/1.86
2.26/1.95
2.28/1.97
2.27/1.96
2.37/2.00
2.32/1.96
1) Coil resistance ±12%
All figures are given for coil without pre-energization, at ambient temperature +23°C
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
