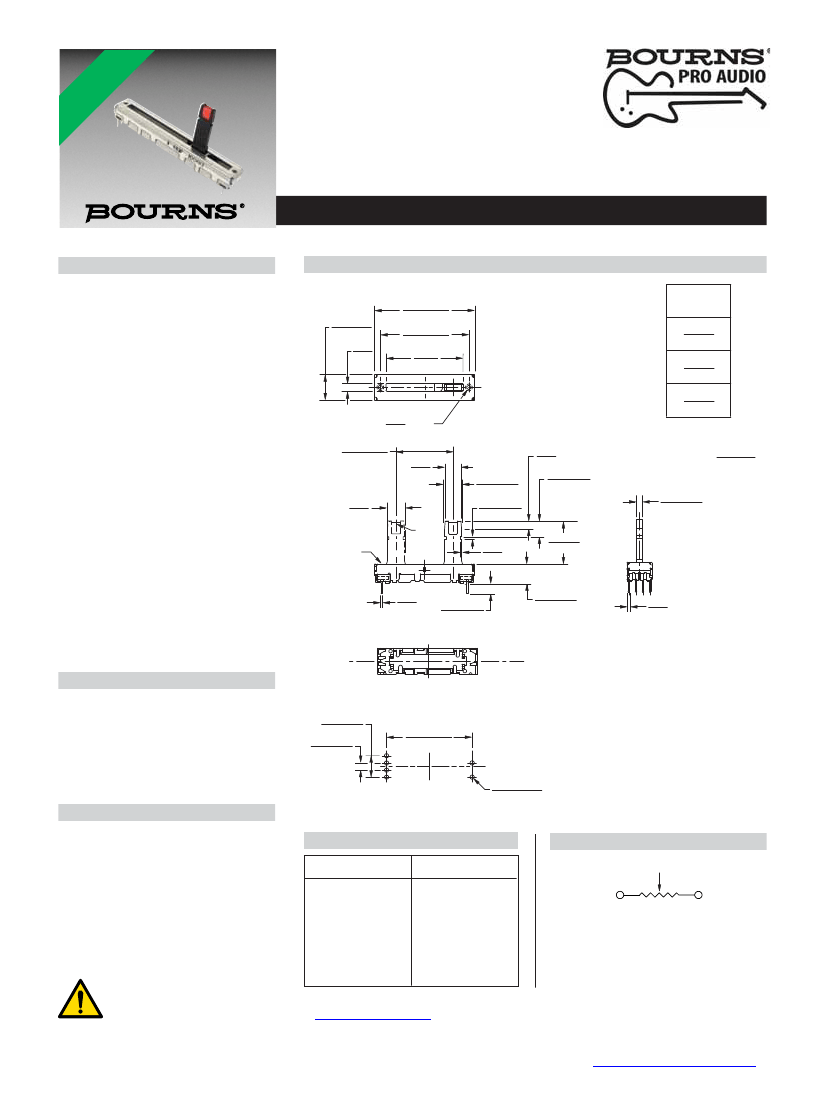

Features
■
Carbon element
■
Red, orange, green, amber and white LED colors
■
Center detent option
■
Assortment of resistance tapers
■
Various travel lengths
■
Various lever sizes
*R
oH
S
CO
M
T
PTL Series Slide Potentiometer w/LED
Electrical Characteristics
Standard Resistance Range
........................1K ohms to 1 megohm
Standard Resistance Tolerance....±20 %
End Resistance
20 mm Travel ............... 10 ohms max.
30 mm Travel ............... 20 ohms max.
45 mm Travel ............... 20 ohms max.
60 mm Travel ............... 30 ohms max.
100 mm Travel ............. 30 ohms max.
Insulation Resistance @ 250 VDC
............................. 100 megohms min.
Dielectric Withstanding Voltage
..............................................300 VAC
Standard Taper .................. Linear, Audio
Power Rating - Linear
20 mm Travel ....................... 0.05 watt
30 mm Travel ......................... 0.1 watt
45 mm Travel ..................... 0.125 watt
60 mm Travel ......................... 0.2 watt
100 mm Travel ....................... 0.2 watt
Power Rating - Audio
20 mm Travel ..................... 0.025 watt
30 mm Travel ....................... 0.05 watt
45 mm Travel ....................... 0.06 watt
60 mm Travel ......................... 0.1 watt
100 mm Travel ....................... 0.1 watt
Slider Noise .......................200 mV max.
Environmental Characteristics
Operational Life ................15,000 cycles
TR Shift .....................................±15 %
Operating Temperature Range
..................................-10 °C to +55 °C
Resistance to Solder Heat..............±5 %
Moisture Sensitivity Level ..................... 1
ESD Classification (HBM)................. N/A
Mechanical Characteristics
Mechanical Travel......... Length ±0.5 mm
Operating Force...............30 gf to 250 gf
Center Detent Force ........20 gf to 200 gf
Stop Strength.......................... 5 kgf min.
Shaft Axial Force .................... 5 kgf min.
Shaft Wobble ...2(2 x L/20) mm p-p max.
Soldering Condition
Manual ........... 300 °C ±5 °C for 3 sec.
Wave .............. 260 °C ±5 °C for 5 sec.
Wash ..................... Not recommended
Standard Resistance Table
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
102
202
502
103
203
503
104
204
504
105

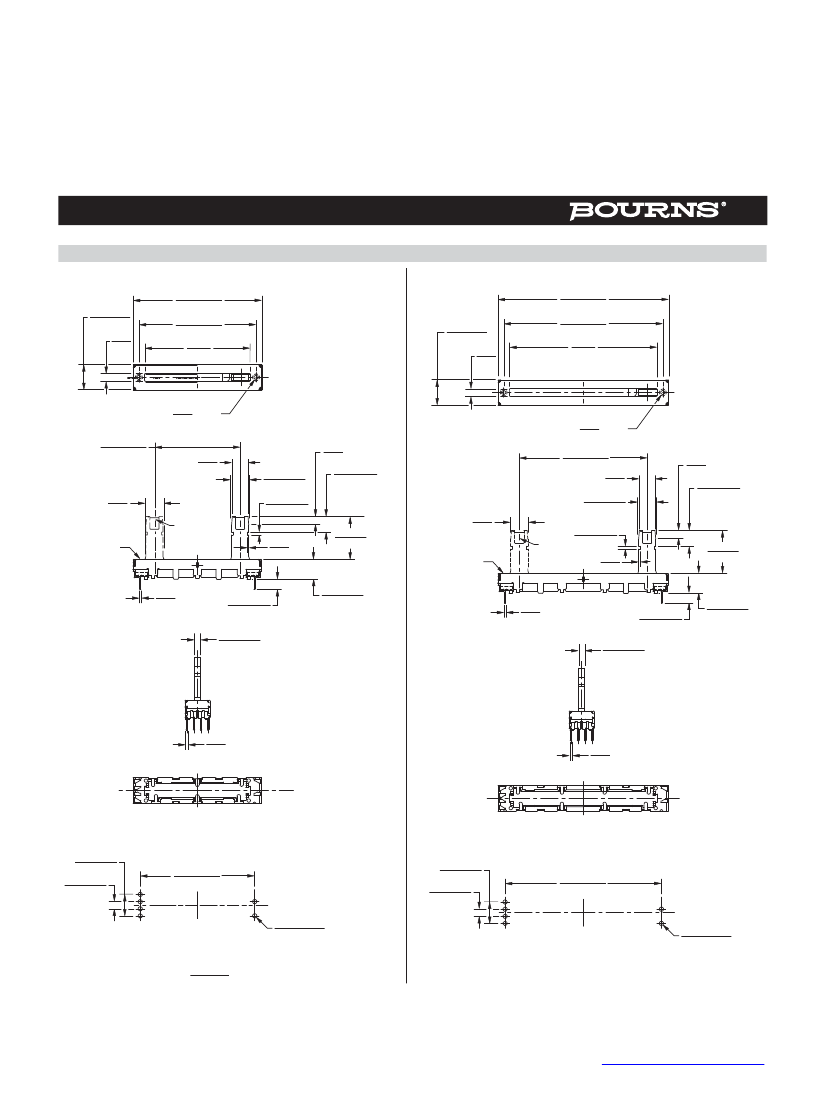

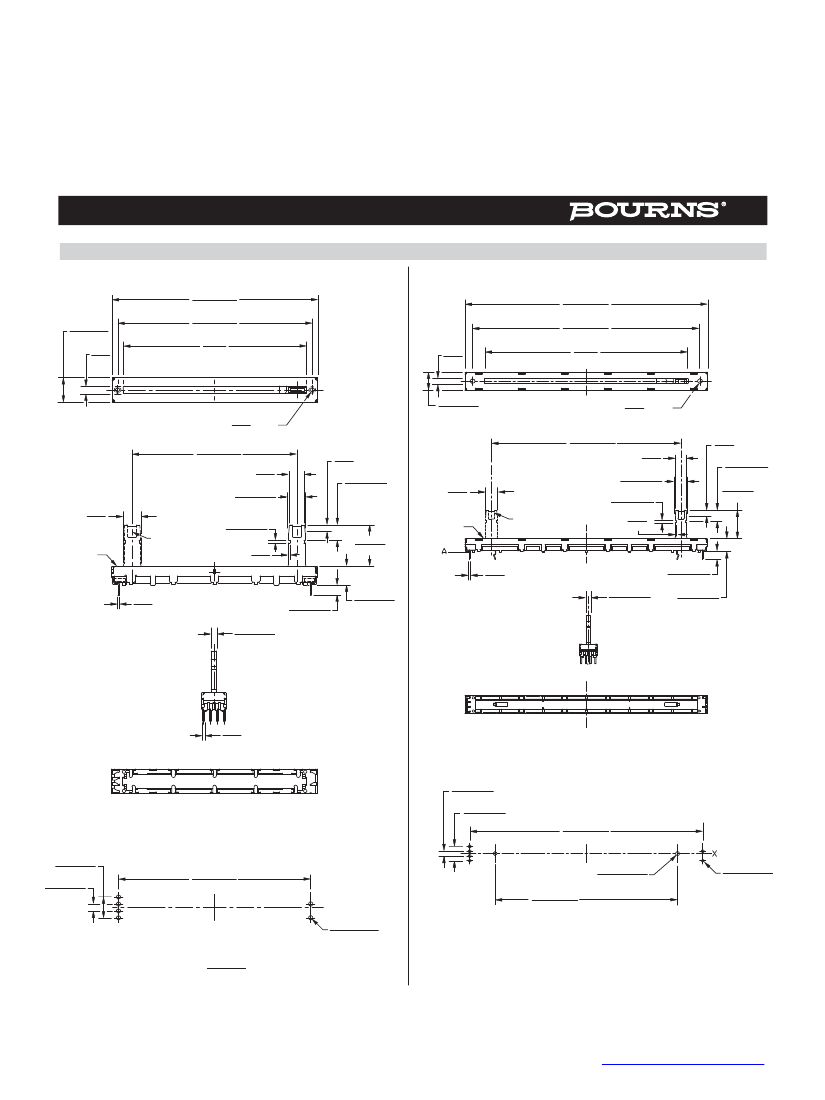

Product Dimensions
20 mm Length of Travel
9.0
±
0.5
(.354
±
.020)
2.8
(.110)
1
35.0
±
0.5
(1.378
±
.020)
31.0
±
0.2
(1.220
±
.008)
27.0
(1.063)
Lever
Length
10.0
(.394)
15.0
(.591)
19.0
(.748)
M2 X
0.4
2 PLCS.
(.016)
3.0
(.118)
5.5
±
0.1
(.217
±
.004)
20.0
±
0.5
(0.787
±
.020)
5.5
(.217)
DIMENSIONS:
MM
(INCHES)
6.0
±
0.1
(.236
±
.004)
1.0
±
0.1
(.039
±
.004)
6.6
(.260)
LED
MOUNTING
SURFACE
2.05
±
0.1
(.081
±
.004)
L
±
0.5
(L
±
.020)
0.5
(.020)
0.4
(.016)
3.5
±
0.5
(.138
±
.020)
7.0
±
0.5
(.276
±
.020)
0.6
(.024)
Mounting Hole Detail
7.5
±
0.1
(.295
±
.004)
2.5
±
0.1
(.098
±
.004)
30.0
±
0.1
(1.181
±
.004)
2
1
L
E
3
B
HOLES
1.1 +0.2/-0
(.043 +.008/-0)
DIA. 6 PLCS.
Schematic
2
R1 1
3
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
PTL Series Slide Potentiometer w/LED

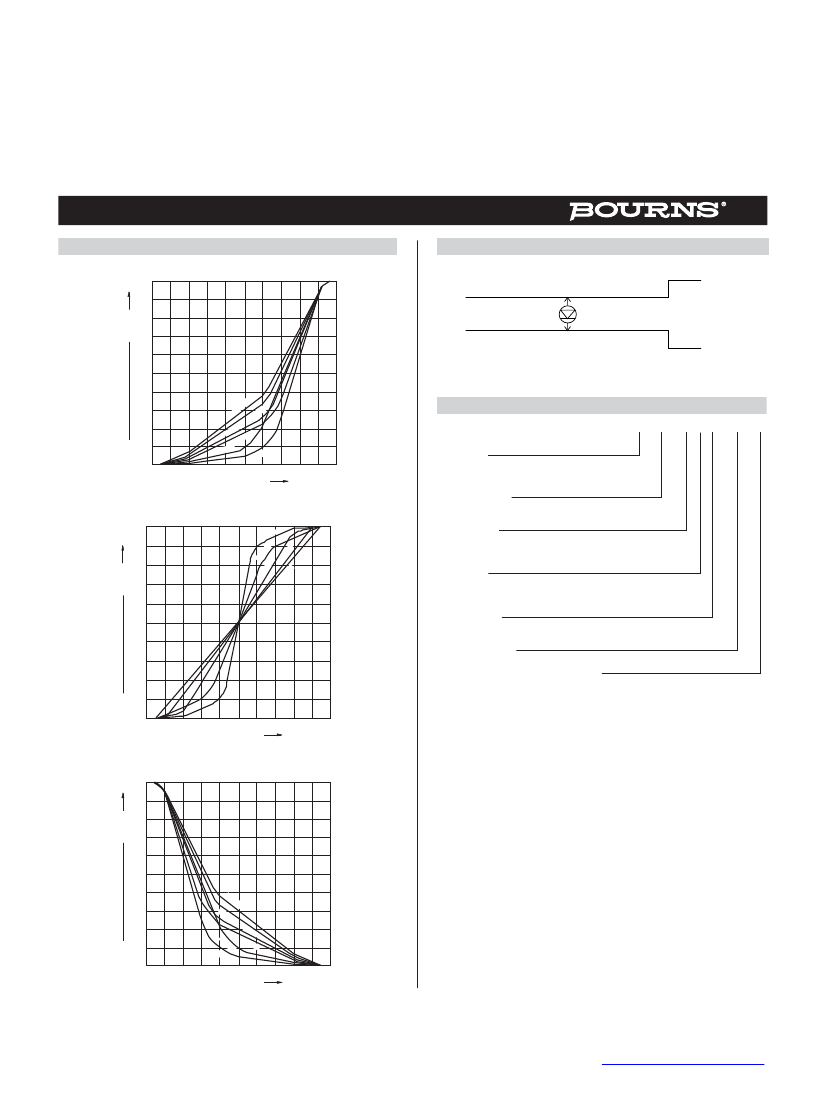

Tapers
A Series Tapers
100
90
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
80
70
60
50
40
30
20
10
0
10
20
30
6
);A
0A
A5
(3
A);
(25
Circuit
B (+)
L = DUMMY TERMINAL
E (-)
How To Order
A4
A);
3
(20
A);A
(15
(10A);
A2
PTL 30 - 10 R 0 - 103 B2
Model Number
Designator
PTL = Slide
Potentiometer
w/LED
Length of Travel
20 = 20 mm 45 = 45 mm 01 = 100 mm
30 = 30 mm 60 = 60 mm
Lever Length
10 = 10 mm
15 = 15 mm
19 = 19 mm
LED Color
R = Red
A = Amber
O = Orange W = White
G = Green
Detent Option
0 = No Detent
1 = Center Detent
Resistance Code
(See Standard Resistance Table)
Resistance Taper (See Taper Charts)
Taper Series followed by Curve Number
A)
(05
;A1
40
50
60
70
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
B Series Tapers
100
);B
(5B
5
;B4
(4B
)
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
);B
3
(3B
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
(1
B)
;B
1
80
(2
B)
;B
2
90
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
C Series Tapers
100
90
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
80
70
60
50
40
30
20
(1
0C
(3
0
(25
C)
;C6
C)
;C5
(20
C
2
C);C
1
);C
10
0
10
20
30
(15
C
);C
4
);C
3
(05
40
50
60
70
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
