SP8802
3.3GHz
÷
2 fixed Modulus Divider
Advance Information
DS2111
Issue 7.2
June 1999
Features
q
q
q
q
q
q
q
q
Very High Speed Operation 3.3GHz
Silicon Technology for low Phase Noise
(Typically better than -140dBc/Hz at 10kHz)
Specified Over the Full Military Temperature
Range
Low Power Dissipation 420mW (typ)
5V Single Supply Operation
High Input Sensitivity
Very Wide Operating Frequency Range
Available as DESC SMD 5962-9066101MPA
Ordering Information
SP8802/A/DG Military temperature range
DES9066101/AC/DGAZ (SMD)
Thermal Characteristics
θja
= 150°C/W
θjc
= 50°C/W
Description
The SP8802 is one of a range of very high speed low
power prescalers for professional and military
applications. The device features a complementary
output stage with on chip current source for the emitter
follower outputs
Absolute Maximum Ratings
Supply voltage V
CC
Clock Input voltage
Storage temperature range
Junction temperature
6.5V
2.5V p-p
-65°C to +150°C
+175°C
SUPPLY
1
VCC
V
REF
(2V)
400
400
7
÷2
6
INPUT
INPUT
2
3
10mA
6.75mA
2mA
OUTPUT
OUTPUT
500
500
5
GND
Figure 1 SP8802 Block diagram
SP8802
Advance Information
INPUT
INPUT
NC
SP8802
VCC
1
2
3
4
8
7
6
5
NC
OUTPUT
OUTPUT
GND

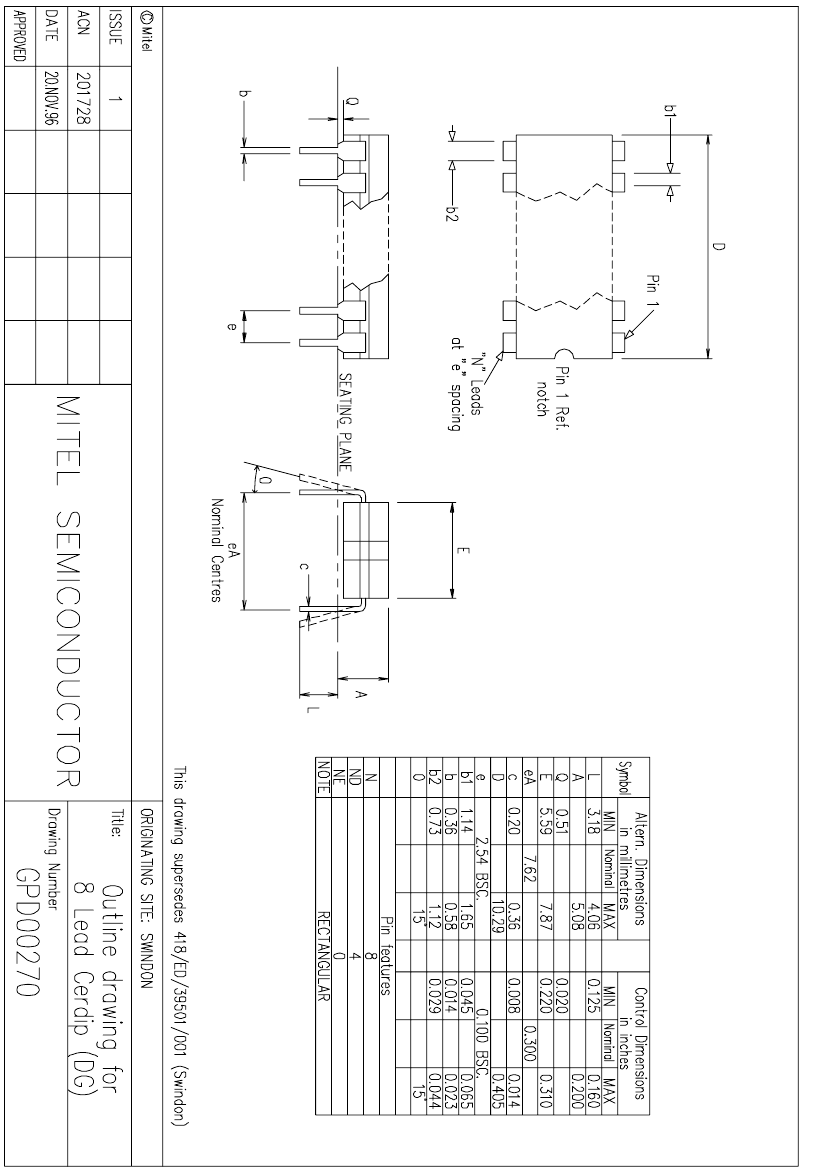

DG8
Figure 2 Pin connections
Electrical Characteristics
Guaranteed over the temperature range T
amb
-55°C to +125°C (see note) and supply voltage range 4.75V
to 5.25V. Tested at T
amb
= -55°C and +100°C, V
CC
= 4.75V and 5.25V.
Characteristic
Supply current
Input sensitivity 0.65GHz to 2.8GHz
3.3GHz
Input impedance
(series equivalent)
Output Voltage with f
in
= 1000MHz
Output Voltage with f
in
= 3GHz
NOTE: Devices must be used with a suitable heatsink to maintain chip temperature below 175°C when
operating at T
amb
>100°C.
500
400
VIN (mV RMS
INTO 50 OHMS)
300
200
100
2
,,
1
2, 3
2, 3
6, 7
6, 7
0.8
50
2
1
0.35
mA
mV
mV
Ω
pF
Vp-p
Vp-p
V
CC
= 5V
RMS sinewave
measured in 50 ohm system.
See Figs. 3 & 4
V
CC
= 5V
V
CC
= 5V load as Fig. 4
Pin
Min
Value
Typ
84
Max
100
175
400
Units
Conditions
*
GUARANTEED*
OPERATING
WINDOW
Tested as
specified in Table
of electrical
characteristics
1
2
3
4
FREQUENCY (GHz)

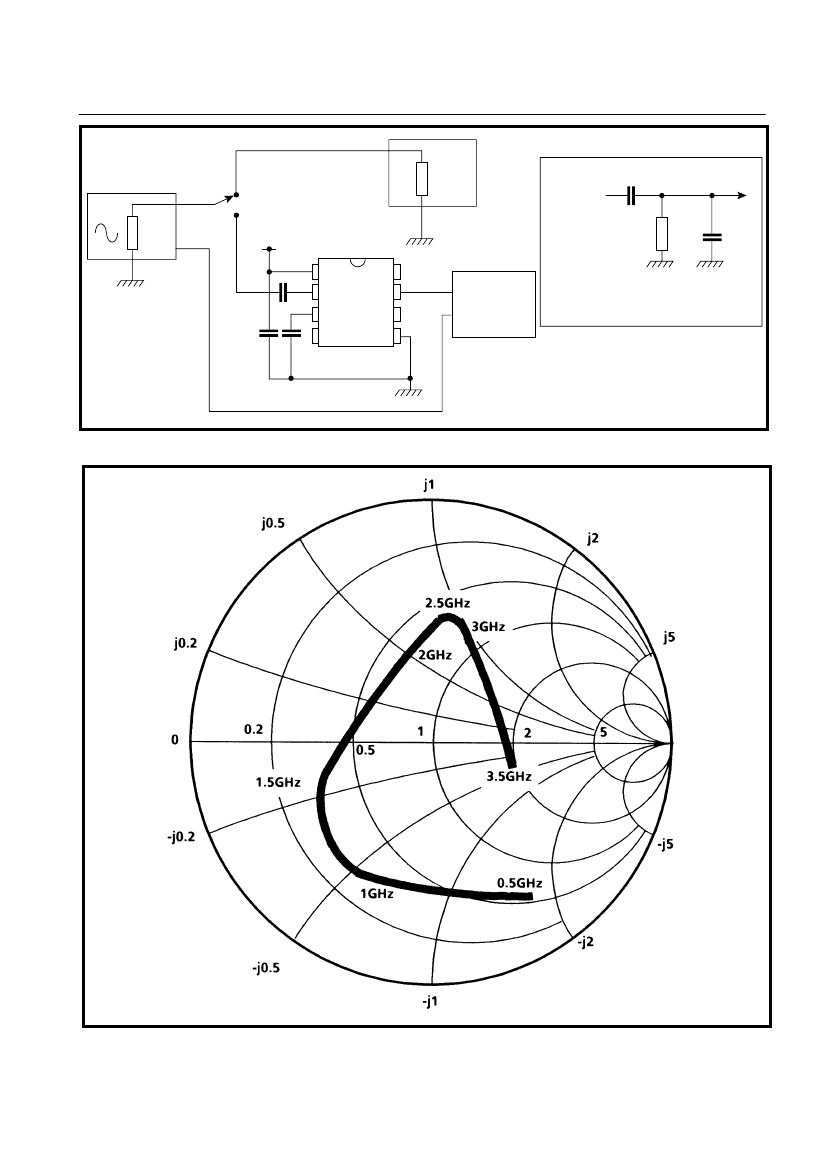

Figure 3 Typical input sensitivity
http://www.mitelsemi.com
World Headquarters - Canada
Tel: +1 (613) 592 2122
Fax: +1 (613) 592 6909
North America
Tel: +1 (770) 486 0194
Fax: +1 (770) 631 8213
Asia/Pacific
Tel: +65 333 6193
Fax: +65 333 6192
Europe, Middle East,
and Africa (EMEA)
Tel: +44 (0) 1793 518528
Fax: +44 (0) 1793 518581
Information relating to products and services furnished herein by Mitel Corporation or its subsidiaries (collectively “Mitel”) is believed to be reliable. However, Mitel assumes no
liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such information, product or service or for any infringement of
patents or other intellectual property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase of product or
service conveys any license, either express or implied, under patents or other intellectual property rights owned by Mitel or licensed from third parties by Mitel, whatsoever.
Purchasers of products are also hereby notified that the use of product in certain ways or in combination with Mitel, or non-Mitel furnished goods or services may infringe patents or
other intellectual property rights owned by Mitel.
This publication is issued to provide information only and (unless agreed by Mitel in writing) may not be used, applied or reproduced for any purpose nor form part of any order or
contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other information appearing in this
publication are subject to change by Mitel without notice. No warranty or guarantee express or implied is made regarding the capability, performance or suitability of any product or
service. Information concerning possible methods of use is provided as a guide only and does not constitute any guarantee that such methods of use will be satisfactory in a specific
piece of equipment. It is the user’s responsibility to fully determine the performance and suitability of any equipment using such information and to ensure that any publication or
data used is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These products are not suitable for use in
any medical products whose failure to perform may result in significant injury or death to the user. All products and materials are sold and services provided subject to Mitel’s
conditions of sale which are available on request.
M Mitel (design) and ST-BUS are registered trademarks of MITEL Corporation
Mitel Semiconductor is an ISO 9001 Registered Company
Copyright 1999 MITEL Corporation
All Rights Reserved
Printed in CANADA
TECHNICAL DOCUMENTATION - NOT FOR RESALE
