DC60SA3-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DC60SA3-B

DC60SA3-B: Descriptionsolid state relays - industrial mount PM ip00 ssr 60vdc 3A, 90-280vac,NC; CategoryLED optoelectronic/LED photoelectric; File Size610KB，5 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

DC60SA3-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DC60SA3-B	-	-	View	Buy Now

DC60SA3-B Overview

solid state relays - industrial mount PM ip00 ssr 60vdc 3A, 90-280vac,NC

DC60SA3-B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
control current	0.004 A
control voltage	90 V
input type	AC
Maximum insulation voltage	4000 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	3 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Output circuit type	BJT
total height	23 mm
total length	58.4 mm
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

DC60 Series

• Bi-polar transistor output

• Ratings from 3A to 7A @ 60 VDC

• AC or DC control

• UL and cUL Recognized (E116950)

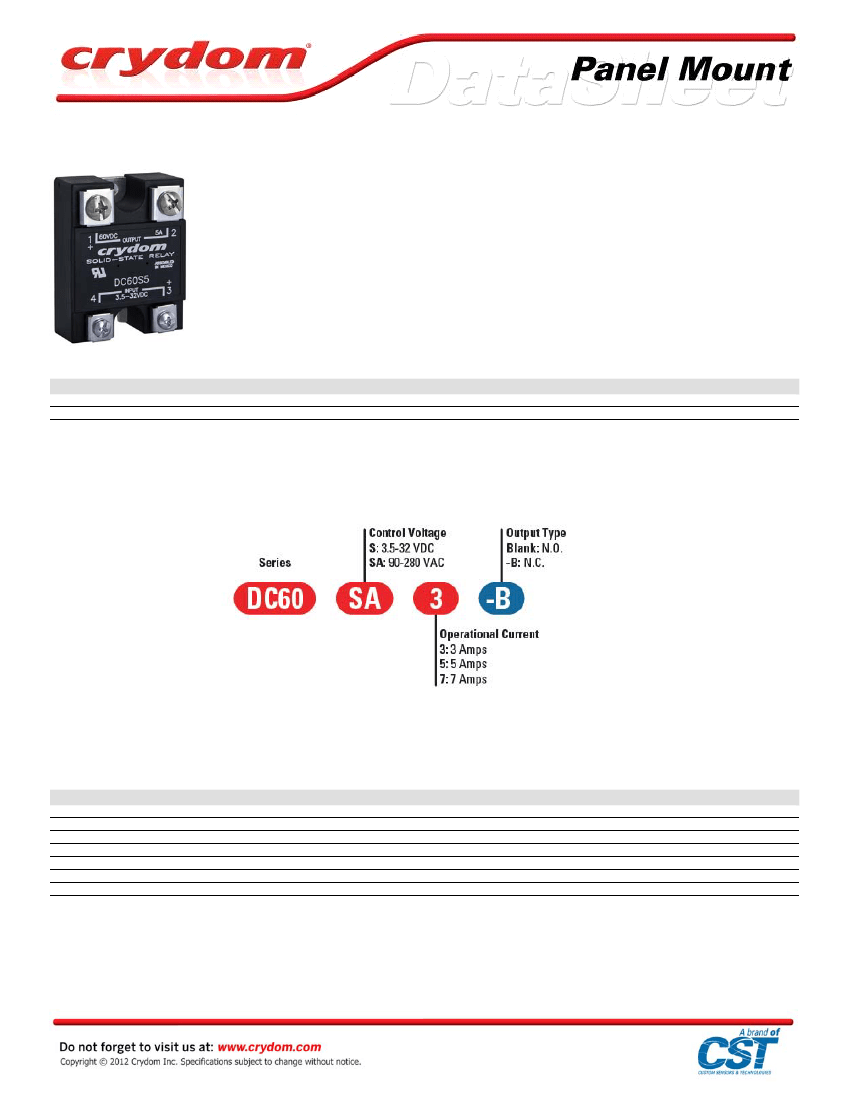

PRODUCT SELECTION

Control Voltage

3.5-32 VDC

90-280 Vrms/VDC

DC60S3

DC60SA3

DC60S5

DC60SA5

DC60S7

DC60SA7

AVAILABLE OPTIONS

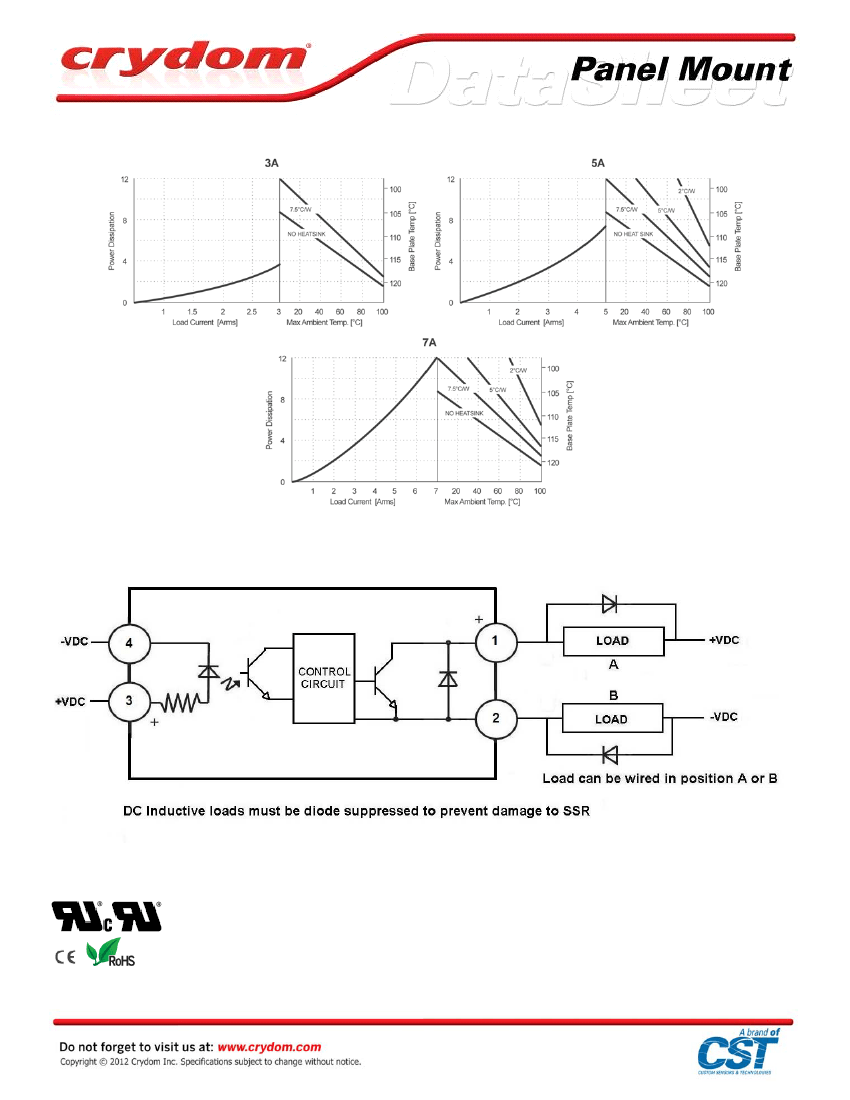

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage [VDC]

Maximum Off-State Leakage Current @ Rated Voltage [mA]

Maximum Load Current [ADC] (2)

Minimum Load Current [mA]

Maximum Surge Current [Adc] (10ms)

Maximum On-State Voltage Drop @ Rated Current [Vdc]

Thermal Resistance Junction to Case (Rjc) [°C/W]

3-60

0.1

1.3

2.2

3-60

0.1

1.5

2.2

3-60

0.1

1.7

2.2

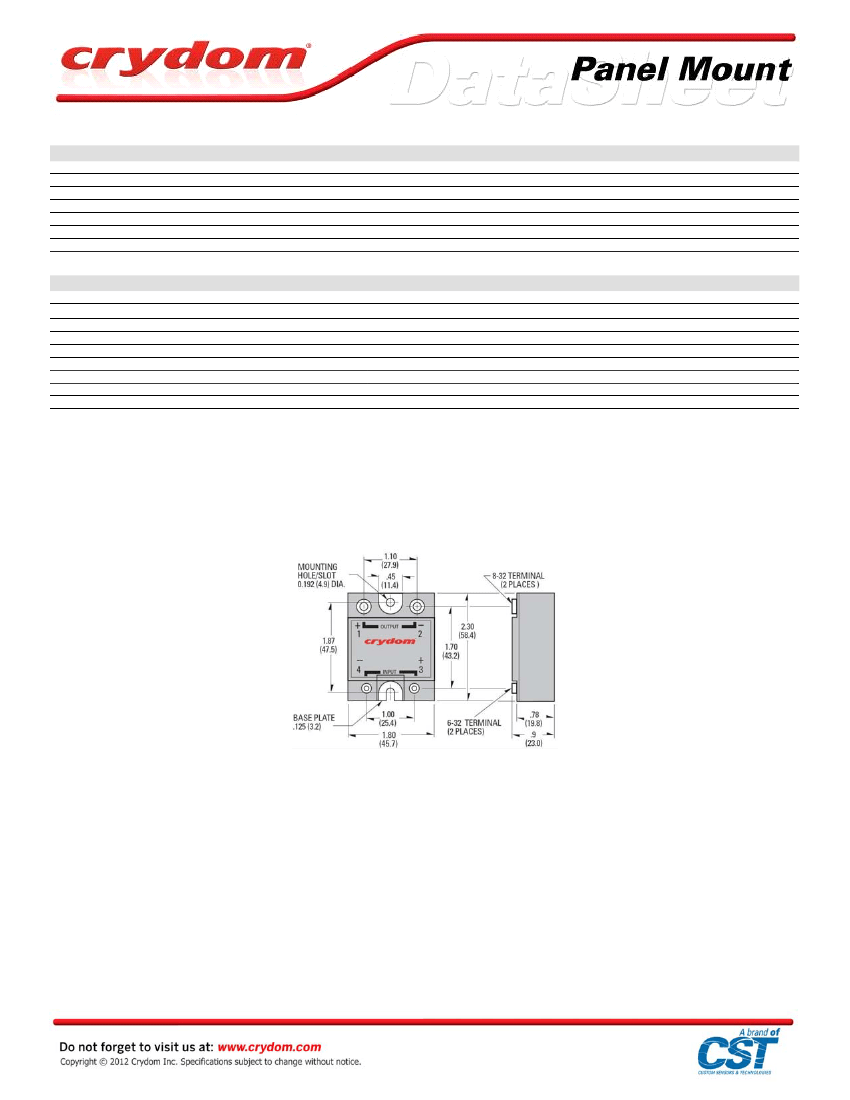

DC60SA3-B Related Products

	DC60SA3-B	DC60SA3	DC60S5-B
Description	solid state relays - industrial mount PM ip00 ssr 60vdc 3A, 90-280vac,NC	solid state relays - industrial mount 60vdc 3 amp AC input	solid state relays - industrial mount PM ip00 ssr 60vdc 5A, 3.5-32vdc,NC
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Crydom	Crydom	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
control current	0.004 A	0.004 A	0.0022 A
control voltage	90 V	90 V	3.5 V
input type	AC	AC	DC
Maximum insulation voltage	4000 V	4000 V	4000 V
Number of components	1	1	1
Maximum on-state current	3 A	3 A	5 A
Maximum operating temperature	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Output circuit type	BJT	BJT	BJT
total height	23 mm	22 mm	23 mm
total length	58.4 mm	57 mm	58.4 mm
Base Number Matches	1	1	1
JESD-609 code	e3	-	e3
Terminal surface	Tin (Sn)	-	Tin (Sn)
