1008-011-2003-P100 datasheet, PDF

1008-011-2003-P100: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Red Insulator, Plug; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1008-011-2003-P100 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Red Insulator, Plug

Parameter Name	Attribute value
Guideline	UL, CSA
UL Flammability Code	94V-0
Is Samacsys	N
YTEOL	0
Objectid	1153145184
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHOUT HOOKS, W/ BLACK STRIPE
Contact point gender	FEMALE
Total number of contacts	11
Contact to complete cooperation	AU ON NI
insulator material	POLYAMIDE
Installation method	RIGHT ANGLE
Terminal pitch	2.54 mm
Rated current (signal)	3.5 A
Connector type	BOARD CONNECTOR
Contact resistance	10 mΩ
PCB row number	1
Number of rows loaded	1
Body/casing type	PLUG
Installation type	BOARD
body length	1.1 inch
Terminal length	0.12 inch
body width	0.315 inch
subject depth	0.31 inch
Contact completed and terminated	TIN OVER NICKEL
Insulator color	RED
Mixed contacts	NO
Installation option 1	LOCKING
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
Contact style	SQ PIN-SKT
Termination type	SOLDER
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Plug information	MULTIPLE MATING PARTS ARE AVAILABLE
Options	GENERAL PURPOSE
Plug contact pitch	0.1 inch
Number of connectors	ONE
Dielectric withstand voltage	1500VAC V
Filter function	NO
maximum insertion force	2.224 N
Insulation resistance	500000000000 Ω
Evacuation force-minimum value	.556 N
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

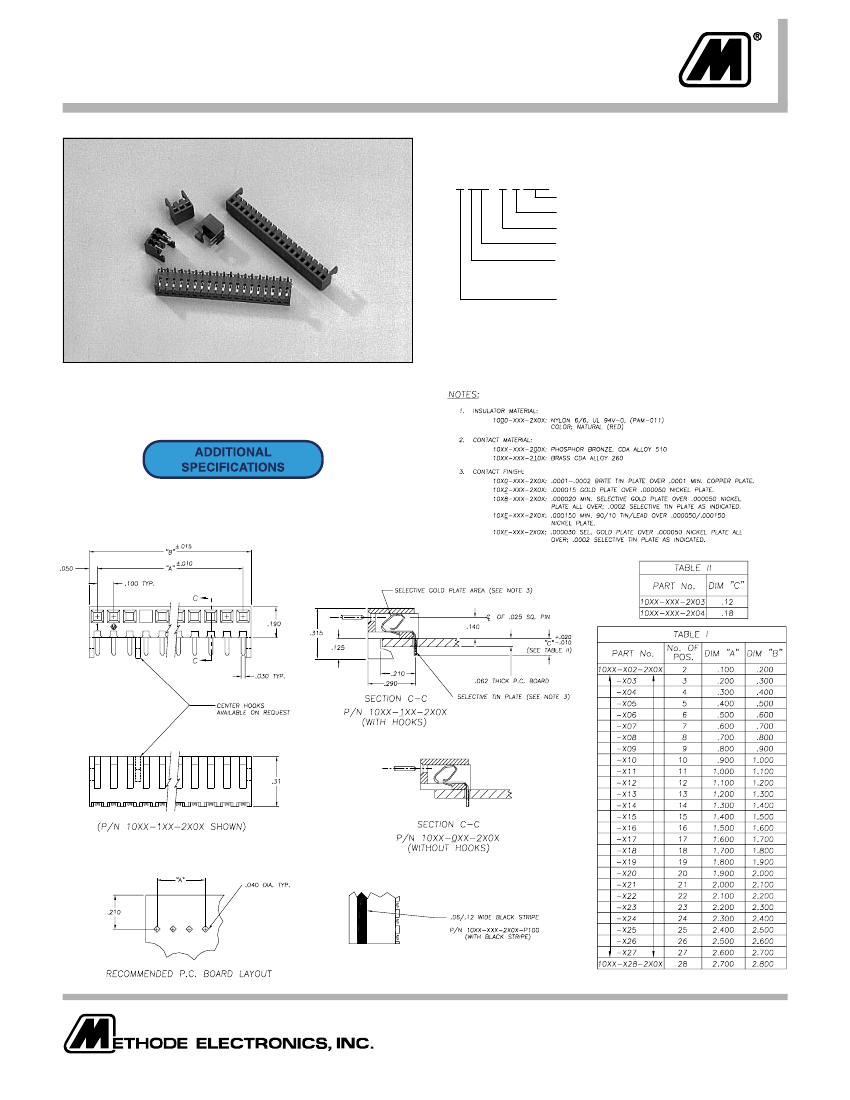

.100” (2.54mm)

Through Hole Right Angle Connector

1000 SERIES “TERMACON”

PART NUMBER LEGEND

100X-XXX-2X0X-P100

BLACK STRIPE OPTIONAL

CONTACT TAIL LENGTH. (SEE TABLE II)

CONTACT MATERIAL (SEE NOTE 2)

NO. OF POSITONS (SEE TABLE 1)

INSULATOR STYLE:

0 - WITHOUT HOOKS

1 - WITH HOOKS

CONTACT PLATING (SEE NOTE 3)

MATING HEADERS: 1100 SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
