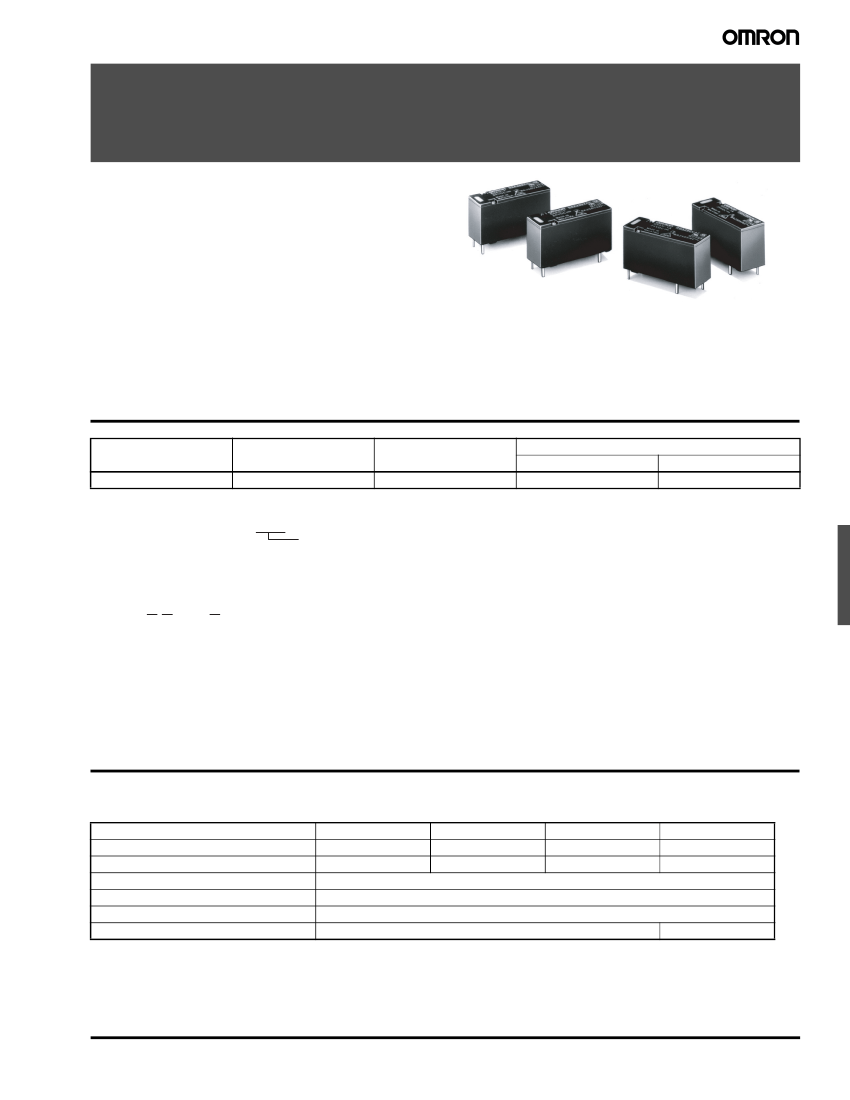

Power Relay
G6RN
Heavy-duty Miniature Relay
• Incorporates environmentally-friendly,
cadmium-free contacts.
• Variety of contact forms: SPDT or SPST-NO (continuous
current rating: 8 A).
• Low profile (0.39 W x 1.12 L x 0.59 H inches)
• High dielectric strength of 4 kV with 8 mm creepage/
clearance.
• Sealed plastic construction.
• Ideal for switching contactors, solenoids and motors.
• RoHS Compliant.
R
C
X
VDE
Ordering Information
Classification
Standard
.
Structure
Plastic-sealed
Contact material
SPST-NO
Ag-Alloy + gold plating
G6RN-1A
Contact form
SPDT
G6RN-1
Note:
When
ordering, add the rated coil
voltage
to the model number.
Example: G6RN-1A DC24
Rated coil
voltage
■
Model Number Legend
G6RN-@@- DC@
1
2
3
1. Number of Poles
1:
1 pole
2. Contact Form
None: SPDT
A:
SPST-NO
3. Rated Coil Voltage
5, 12, 24, 48
Specifications
■
Coil Ratings
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
5 VDC
43.9 mA
114
Ω
12 VDC
18.3 mA
655
Ω
24 VDC
9.2 mA
2,620
Ω
48 VDC
5.2 mA
9,210
Ω
70% max. of rated voltage
10% min. of rated voltage
110% of rated voltage
Approx. 220 mW
Approx. 250 mW
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
Power Relay
G6RN
159
■
Contact Ratings
Contact material
Rated switching current
(resistive)
Rated carry current
Max. switching voltage
Max. switching capacity
Min. permissible load
Note:
P level:
λ
60
= 0.1
×
10
−6
operation
Ag-Alloy + gold plating (standard)
8 A at 250 VAC
5 A at 30 VDC
8A
250 VAC, 30 VDC
2,000 VA, 150 W
10 mA, 5 VDC
■
Characteristics
Contact resistance
Operate time
Release time
Max. operating
frequency
Insulation resistance
Dielectric strength
Creepage/clearance
Vibration resistance
Shock resistance
Malfunction
Destruction
Malfunction
Life expectancy
Mechanical
Electrical
Ambient temperature Operating
Storage
Ambient humidity
Weight
Protection class
Insulation class
Operating
Mechanical
Electrical
100 mΩ max.
Approx. 6 ms
Approx. 3 ms
36,000 operations/hr
360 operations/hr (under rated load)
1,000 MΩ min.
4,000 VAC:
between
coil and contacts
1,000 VAC:
between
contacts
8 mm min.
between
coil and contacts
NO: 10 to 55 Hz, 1.5 mm double amplitude
NC: 10 to 55 Hz, 0.8 mm double amplitude
1,000 m/s
2
(approx. 100 G)
NO: 100 m/s
2
(approx. 10 G)
NC: 50 m/s
2
(approx. 5 G)
10,000,000 operations min.
50,000 operations (Typ. 100,000 operations - see note)
-40°C to 85°C
-40°C to 85°C
5% to 85%
Approx. 9 g
II according to VDE0106 Part 1
C/250, B/380 according to VDE0110
Note:
Resistive load test at 250 VAC, 8 A, room temperature with diode.
Continuous monitoring must
be
performed to detect contact sticking and short circuit.
Dielectric strength measured at 500 V for 1 minute with the same polarity.
■
Approved Standards
VDE (EN61810-1)
Contact form
SPDT
SPST-NO
Coil ratings
5, 12, 24, 48 VDC
Contact ratings
8 A at 250 VAC (cosφ =1)
UL Recognized (File No. E41515) /CSA Certified (File No. LR31928-543) - - Ambient Temp. = 40°C
Coil ratings
5, 12, 24, 48 VDC
250 VAC, 10 A resistive
250 VAC, 8 A resistive, 85°C
30 VDC, 5 A resistive
Contact ratings
160
Power Relay
G6RN
