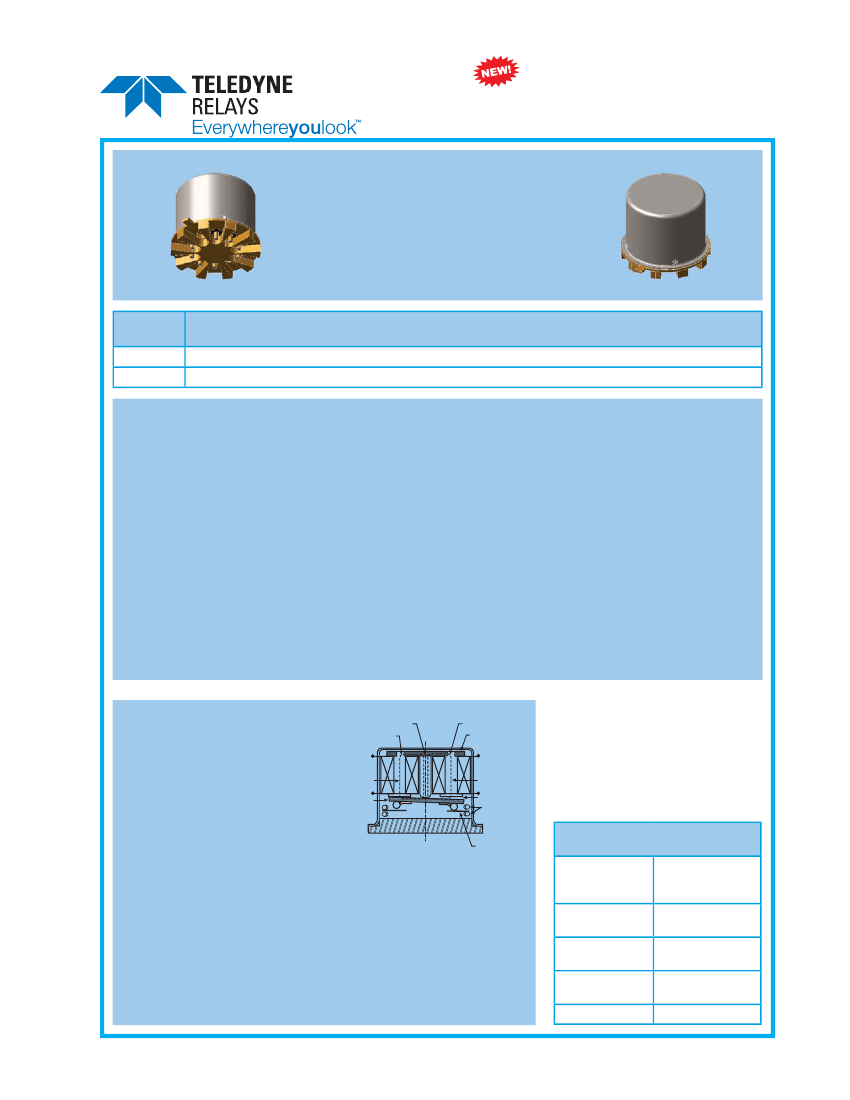

Series GRF424
Magnetic-Latching Electromechanical Relay
Signal Integrity up to 10Gbps,
MAGNETIC-LATCHING
DC-8 GHz
TO-5 RELAYS
4PST
SERIES
RELAY TYPE
GRF424
GRF424D
4PST RF Relay
4PST RF Relay with internal diodes for coil transient suppression
• Minimum mass components and welded construction
provide maximum resistance to shock and vibration.
• Advanced cleaning techniques provide maximum
assurance of internal cleanliness.
• Gold-plated precious metal contacts ensure reliable,
lowlevel switching.
The RF424 relay is ideally suited for applications where
power dissipation must be minimized. The relays can be
operated with a short duration pulse. After the contacts
have transferred, no external holding power is required.
The magnetic latching
feature of the RF424 series provides a nonvolatile
“memory” capability since the relays will not reset upon
removal of coil power.
The 424D series utilizes discrete diodes for coil
suppression.
DESCRIPTION
The GRF424 series relay is an ultraminiature, hermetically
sealed, magnetic-latching relay featuring low intercontact
capacitance for exceptional RF performance from DC-8
GHz. It’s low profile and small size make it ideal for
applications where extreme packaging density and/or
close PC board spacing are required. Due to its minimal
mass, many relays may be used to configure
replacements for bulkier switching solutions at a
substantial savings in weight.These design features make
these unique relays the perfect choice for use in RF
attenuators, RF switching matrices and other RF
applications requiring low insertion loss and low VSWR.
The basic operating mechanism is similar to the TO-5 422
series relay.
The following unique construction features and
manufacturing techniques provide overall high reliability
and excellent resistance to environmental extremes:
PRINCIPAL OF OPERATION
PERMANENT MAGNET
MAGNETIC CIRCUIT B
MAGNETIC CIRCUIT A
SOFT IRON FRAME
Energizing Coil B produces a
+
+
magnetic
fi
eld opposing the hold-
COIL A
COIL B
ing
fl
ux of the permanent magnet
SOFT IRON
SOFT IRON
COIL A
COIL B
in Circuit B. As this net holding
-
-
AIR GAP
SOFT IRON
force decreases, the attractive
ARMATURE
STATIONARY
CONTACT
force in the air gap of Circuit A, which
also results from the
fl
ux of the
MOVING
permanent magnet, becomes great
CONTACT
enough to break the armature free of
Core B, and snap it into a closed
position against Core A. The armature then remains in this position upon
removal of power from Coil B, but will snap back into position B upon
energizing Coil A. Since operation depends upon cancellation of a magnetic
fi
eld, it is necessary to apply the correct polarity to the relay coils as indicated
on the relay schematic. When latching relays are installed in equipment, the
latch and reset coils should not be pulsed simultaneously. Coils should not be
pulsed with less than rated coil voltage and the pulse width should be a
minimum of three times the specified operate time of the relay. If these
conditions are not followed, it is possible for the relay to be in the magnetic
neutral position.
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
ENVIRONMENTAL AND
PHYSICAL SPECIFICATIONS
Temperature
Storage
Operating
–65°C to +125°C
–55°C to +85°C
Vibration
10 g’s to 500 Hz
(General Note 1)
Shock
30 g’s, for 6 msec
(General Note 1) half sine
Enclosure
Weight
Hermetically
Sealed
0.1 oz. (2.9g) max.
GRF424 Page 1
GRF424\062013\Q2
Series GRF424
Magnetic-Latching Electromechanical Relay
Signal Integrity up to 10Gbps,
SERIES GRF424/GRF424D

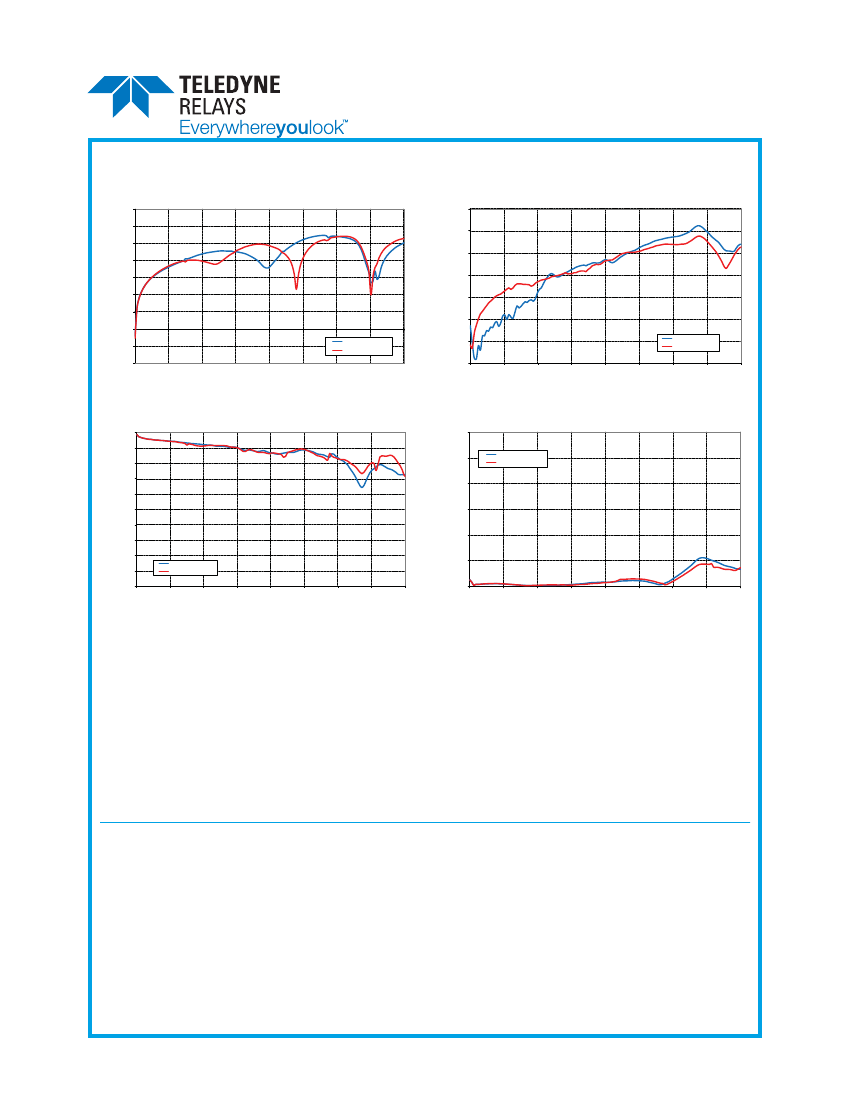

TYPICAL RF CHARACTERISTICS (See RF Notes)
Isolation Across Contacts (RF Note 4)
0
-10
-20
-20
Isolation Pole to Pole (RF Note 5)
-30
Isolation ( dB )
-40
Isolation ( dB )
-30
-40
-50
-60
-70
-80
-90
0
1
2
3
4
5
6
7
8
Path: 1-2 or 8-9
Path: 3-4 or 6-7
-50
-60
-70
-80
Path: 1-2 or 8-9
Path: 3-4 or 6-7
-90
0
1
2
3
4
5
6
7
8
Frequency, GHz
Frequency, GHz
Insertion Loss (RF Note 6)
0
-0.2
3.5
-0.4
Path: 1-2 or 8-9
Path: 3-4 or 6-7
4
VSWR (RF Note 6)
Insertion Loss ( dB )
-0.6
-0.8
-1
-1.2
3
VSWR
Path: 1-2 or 8-9
Path: 3-4 or 6-7
0
1
2
3
4
5
6
7
8
2.5
2
-1.4
-1.6
1.5
-1.8
-2
1
0
1
2
3
4
5
6
7
8
Frequency, GHz
Frequency, GHz
RF NOTES
1. Test conditions:
2.
3.
4.
5.
6.
a.
Fixture: .031" copper clad, reinforced PTFE, RT/duroid
®
6002 with SMA connectors.
(RT/duroid
®
is a registered trademark of Rogers Corporation.)
b.
Relay header is soldered to ground plane.
c.
Room ambient temperature.
d.
All terminals not tested were terminated with 50-ohm load.
e.
Contact signal level: –10 dBm.
f.
No. of test samples: 2.
Data presented herein represents typical characteristics and is not intended for use as specification limits.
Data is per pole, except for pole-to-pole data.
Data is the average from readings taken on poles after Coil A is energized then Coil B is energized.
Data is the average from readings taken on all closed contacts.
Test fixture effect de-embedded from frequency and time response data.
GRF424 Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2013 TELEDYNE RELAYS
GRF424\062013\Q2
Series GRF424
Magnetic-Latching Electromechanical Relay
Signal Integrity up to 10Gbps,
SERIES GRF424A/GRF424D
GENERAL ELECTRICAL SPECIFICATIONS (@25°C unless otherwise noted) (Note 2)
Contact Arrangement
Rated Duty
Contact Resistance
Contact Load Rating
Contact Life Ratings
Coil Operating Power
Operate Time
Contact Bounce
Intercontact Capacitance
Insulation Resistance
Dielectric Strength
Negative Coil Transient (Vdc)
Diode P.I.V. (Vdc)
Bi-Stable (4PST)
Continuous
0.15
Ω
max. initial (measured 1/8" from the header)
Resistive: 1Amp/28Vdc
Low level: 10 to 50
μA
@ 10 to 50 mV
10,000,000 cycles (typical) at low level
100,000 cycles min. at all other loads specified above
RF424-5: 410 mW typical @ nominal rated voltage
RF424-12: 288 mW typical @ nominal rated voltage
RF424-26: 351 mW typical @ nominal rated voltage
1.5 mS max. @ nominal rated voltage
3.0 mS max.
0.4 pf typical
10,000 MΩ min. between mutually isolated terminals
350 Vrms (60 Hz) @ atmospheric pressure
125 Vrms (60 Hz) @ 70,000 ft
RF424D: 1.0 max.
RF424D: 100 min.
DETAILED ELECTRICAL SPECIFICATIONS (@25°C)
BASE PART NUMBERS
Coil Voltage, Nominal (Vdc)
Nom.
Max.
GRF424-5
GRF424D-5
GRF424-12
GRF424D-12
GRF424-26
GRF424D-26
5.0
6.5
61
4.0
12.0
16.0
500
9.6
26.5
32.0
2000
19.0
Coil Resistance (Ohms ±20% @ 25°C) (Note 4)
Set & Reset Voltage (Vdc, Max.) Pulse Operated
Teledyne Part Numbering System for GRF424
GRF424D
Relay Series
D= Internal diode for
transient suppression
Nominal Coil Voltage
-
5
/
S
Q
Q = Solder Coated Leads
1
G = Gold Plated Leads (RoHS Compliant)
R = RoHS Compliant Solder
2
S = 0.187” Leads
W = 1.5” Leads
No Suffix = 0.75” Leads
General Note:
Parts ordered without suffix may be supplied with Solder-Coated or Gold-Plated leads
1
Parts ordered with Solder-Coated leads will have (Sn60/Pb40)
2
Parts ordered with RoHS Solder-Coated leads will have (Sn99.3/Cu0.7)
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
GRF424 Page 3
GRF424\062013\Q2
Series GRF424
Magnetic-Latching Electromechanical Relay
Signal Integrity up to 10Gbps,
SERIES GRF424/RF424D

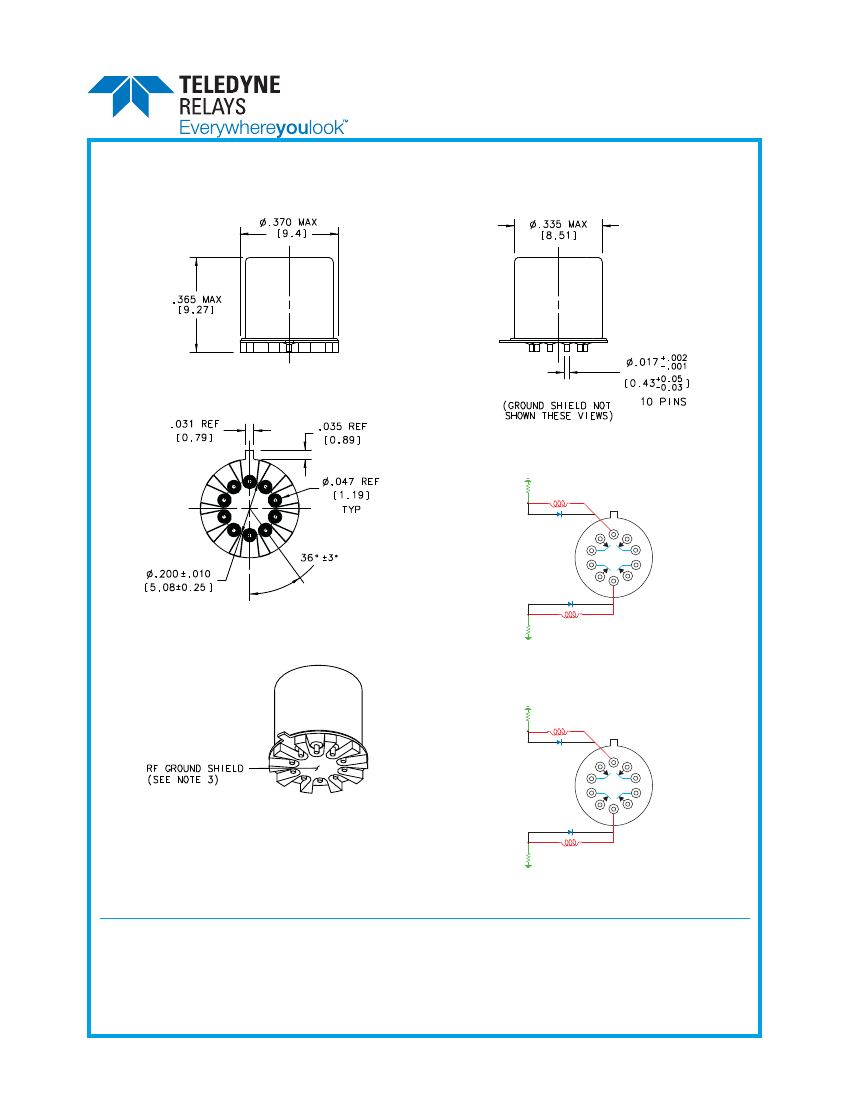

OUTLINE DIMENSIONS
-
COIL B
GRF424D
+ 10
9
8
7
6
1
2
3
+ 5
4
-
COIL A
SCHEMATIC
(Coil B Last Energized)
(Bottom View)
-
COIL B
GRF424D
+ 10
9
8
7
6
1
2
3
+ 5
4
-
COIL A
SCHEMATIC
NOTES:
1. DIMENSIONS ARE IN INCHES, METRIC EQUIVALENTS SHOWN IN [ ].
(Coil B Last Energized)
(Bottom View)
GENERAL NOTES
1.
2.
3.
4.
Relays will exhibit no contact chatter in excess of 10
μsec
or transfer in excess of 1
μsec.
Unless otherwise specified, parameters are initial values.
For extended contact life ratings, contact factory.
Contacts shown in position resulting when Coil B last energized.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2013 TELEDYNE RELAYS
GRF424\062013\Q2
GRF424 Page 4
Series GRF424
Magnetic-Latching Electromechanical Relay
Signal Integrity up to 10Gbps,
SERIES GRF424/GRF424D

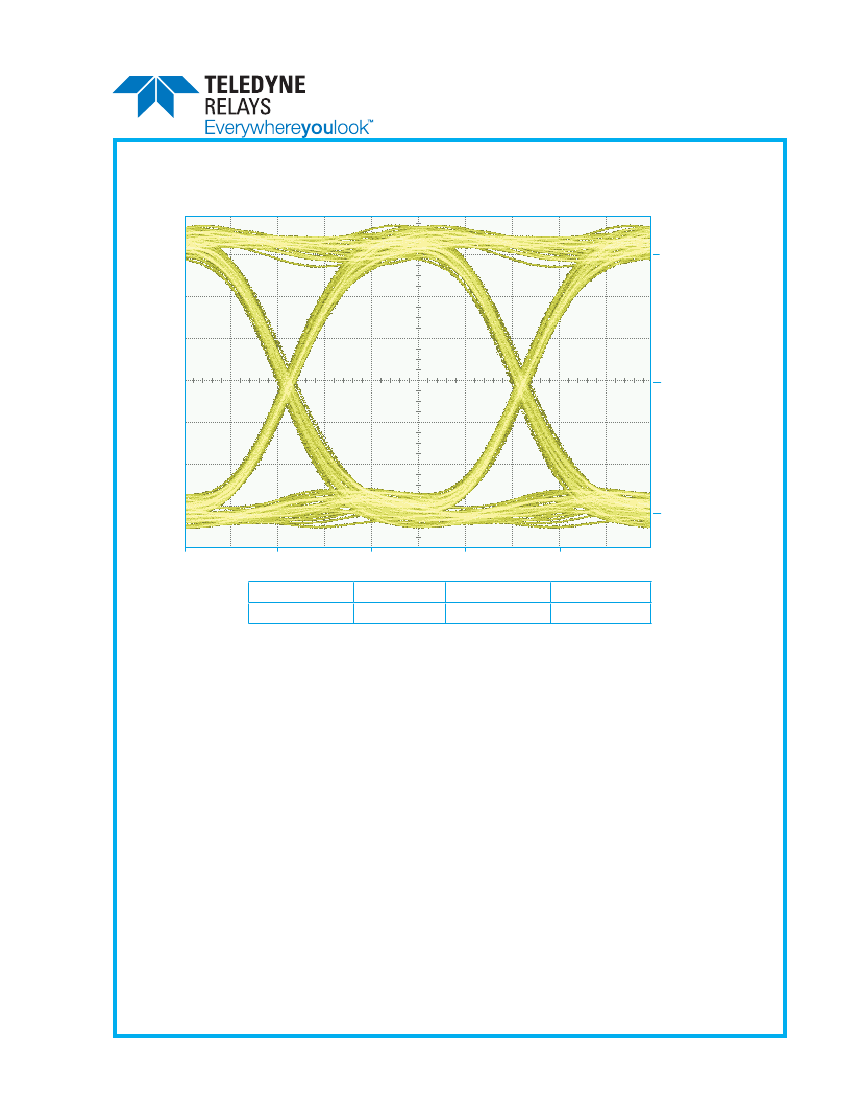

TYPICAL SIGNAL INTEGRITY CHARACTERISTICS
Typical Path
+150 mV
0V
-150 mV
0 ps
40 ps
80 ps
120 ps
160 ps
Eye Height
254.0 mV
Eye Width
90.27 ps
SNR
15.61
Jitter
P-P
8.89 ps
•
•
•
•
•
PATTERN GENERATOR SETTINGS
10 Gbps Random Pulse Pattern Generator
2
31
- 1 PRBS signal
PRBS output of 300 mV
P-P
(nominal)
RF PCB effect (negligible) not removed from measurement
Data shown is typical of both poles
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
GRF424 Page 5
GRF424\062013\Q2
