1271P23F000 datasheet, PDF - EEWORLD Datasheet

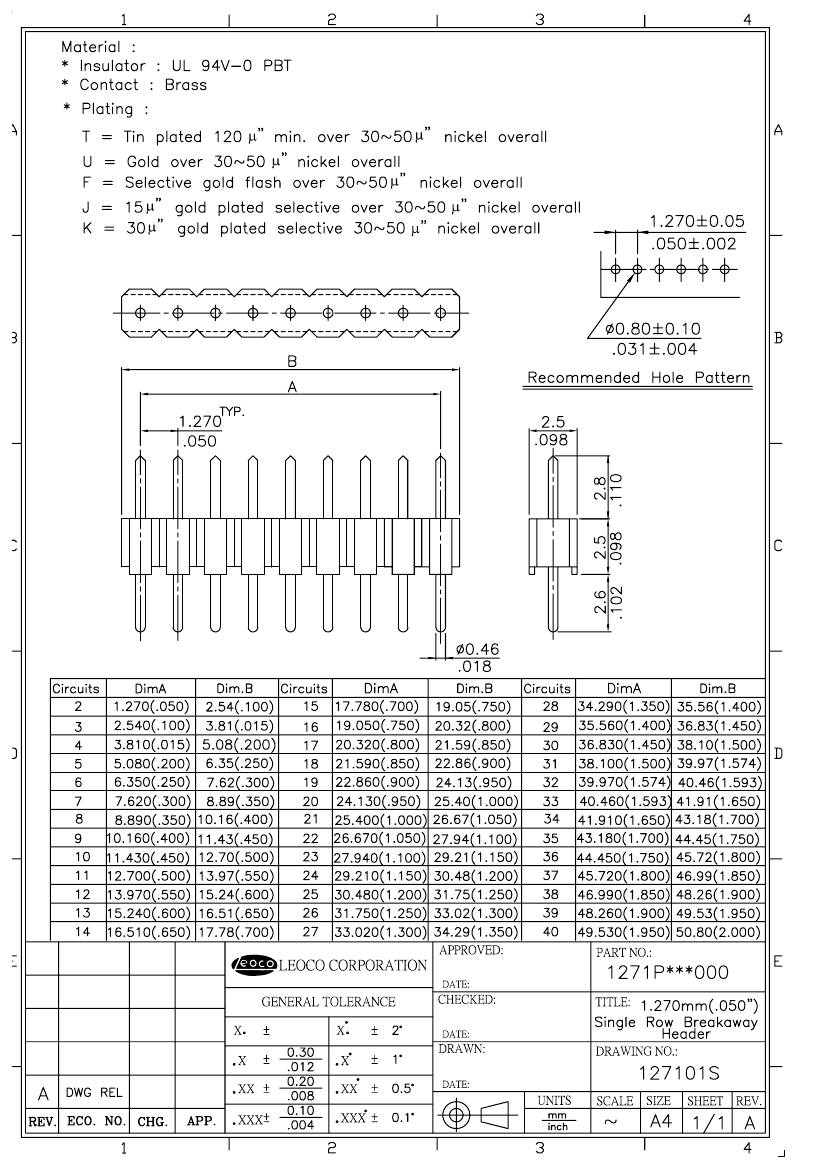

1271P23F000: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1271P23F000 Overview

Board Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Terminal pitch	1.27 mm
Total number of contacts	23
Other features	WITH STANDOFF
Body/casing type	RECEPTACLE
Contact point gender	MALE
Installation method	STRAIGHT
PCB row number	1
Contact to complete cooperation	AU ON NI
Contact resistance	40 mΩ
Number of rows loaded	1
Rated current (signal)	1 A
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation type	BOARD
Connector type	BOARD CONNECTOR
subject depth	0.098 inch
body length	1.15 inch
Terminal length	0.102 inch
body width	0.098 inch
Termination type	SOLDER
Contact material	BRASS
Insulator color	BLACK
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Plug contact pitch	0.05 inch
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	500000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Guideline	UL, CSA
Is Samacsys	N
Objectid	303539397
Reach Compliance Code	unknown
ECCN code	EAR99
