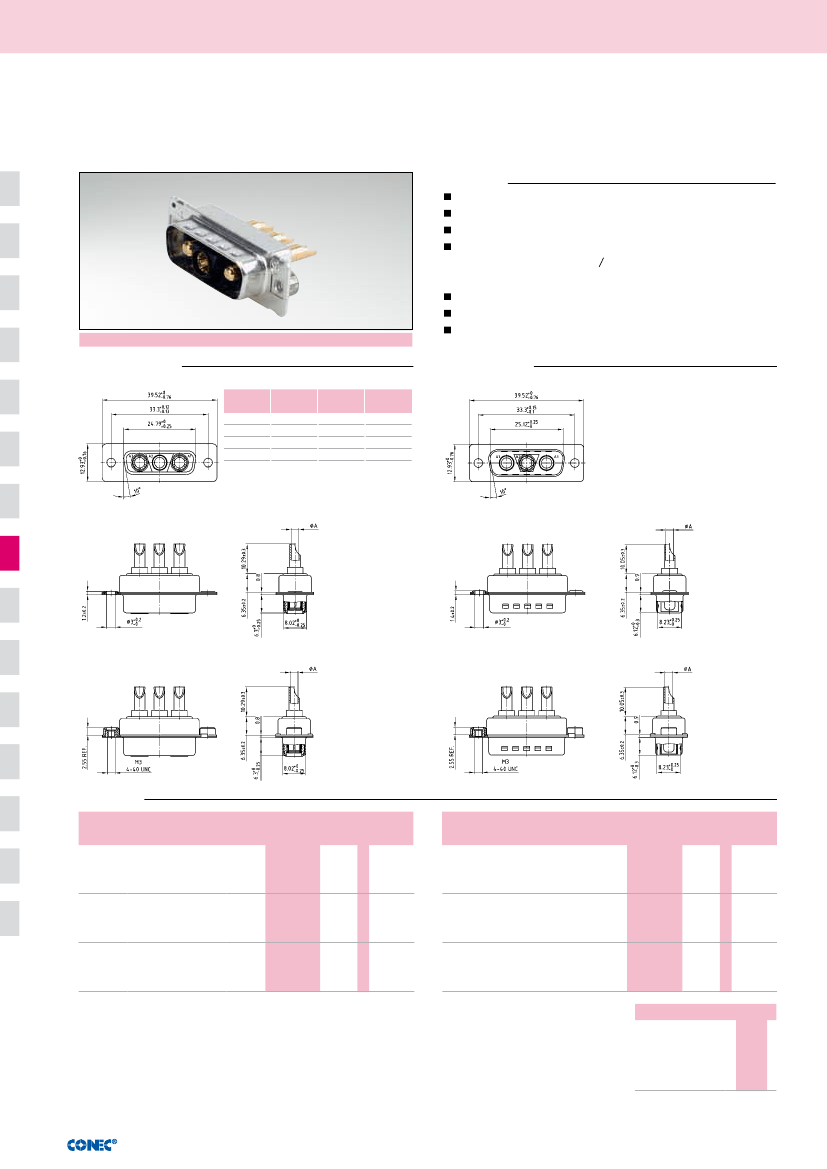

C -Fil t e r Co mb ina tion D -SUB C onn ectors

C-Filter Combination D-SUB

3W3C

Solder cup – Precision machined contacts – For wire size AWG 8…20

Description

Coded socket connector = 1 Plug and 2 Socket contacts

Coded plug connector = 2 Plugs and 1 Socket contact

707 VDC (other DWV on request)

Mounting styles:

- with through-hole, Ø .118” 3 mm

- with 4-40 UNC or M3 threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated, optionally brass tin plated

Selective gold plated contacts available on request

RoHS compliant – UL listed, File No.: E228329

Socket connector

Termination

code

Plug connector

Current

rating

10A

20A

30A

40A

Wire size

AWG 16-20

AWG 12-14

AWG 10-12

AWG 8-10

ØA

1.80

2.70

3.50

4.80

Mounting style: Through-hole

Mounting style: Threaded insert

Order data

Socket connector

Type

3W3C

Plug connector

AWG

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

Mounting style

Through-hole

4-40 UNC Threaded insert

M3 Threaded insert

Capacitance Part Number

47 nF

3F3C SA 22 S41A10 X

3F3C SA 22 S42A10 X

3F3C SA 22 S43A10 X

3F3C SA 22 S44A10 X

3F3C SA 22 S41A30 X

3F3C SA 22 S42A30 X

3F3C SA 22 S43A30 X

3F3C SA 22 S44A30 X

3F3C SA 22 S41A20 X

3F3C SA 22 S42A20 X

3F3C SA 22 S43A20 X

3F3C SA 22 S44A20 X

Type

3W3C

Mounting style

Through-hole

4-40 UNC Threaded insert

M3 Threaded insert

AWG Capacitance Part Number

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

47 nF

3F3C PA 22 S41A10 X

3F3C PA 22 S42A10 X

3F3C PA 22 S43A10 X

3F3C PA 22 S44A10 X

3F3C PA 22 S41A30 X

3F3C PA 22 S42A30 X

3F3C PA 22 S43A30 X

3F3C PA 22 S44A30 X

3F3C PA 22 S41A20 X

3F3C PA 22 S42A20 X

3F3C PA 22 S43A20 X

3F3C PA 22 S44A20 X

For other capacitance values refer to the part number creator.

Capacitance value

100 nF

47 nF

12 nF

10 nF

5 nF

1.3 nF

Code

8| 8
