BL21-45VGG-026U: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

BL21-45VGG-026U Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

BL21-45VGG-026U Parametric

Parameter Name	Attribute value
Other features	ROHS COMPLIANT
Installation type	BOARD
Number of rows loaded	2
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
insulator material	POLYETHYLENE
Installation method	STRAIGHT
PCB row number	2
Rated current (signal)	1 A
Terminal pitch	1.27 mm
Total number of contacts	26
body width	0.122 inch
subject depth	0.181 inch
body length	0.666 inch
PCB contact pattern	RECTANGULAR
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Number of connectors	ONE
PCB contact row spacing	3.9116 mm
Termination type	SURFACE MOUNT
Contact completed and terminated	Gold (Au)
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
JESD-609 code	e4
Guideline	UL
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
ECCN code	EAR99
Is Samacsys	N
YTEOL	9
Objectid	304277140
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

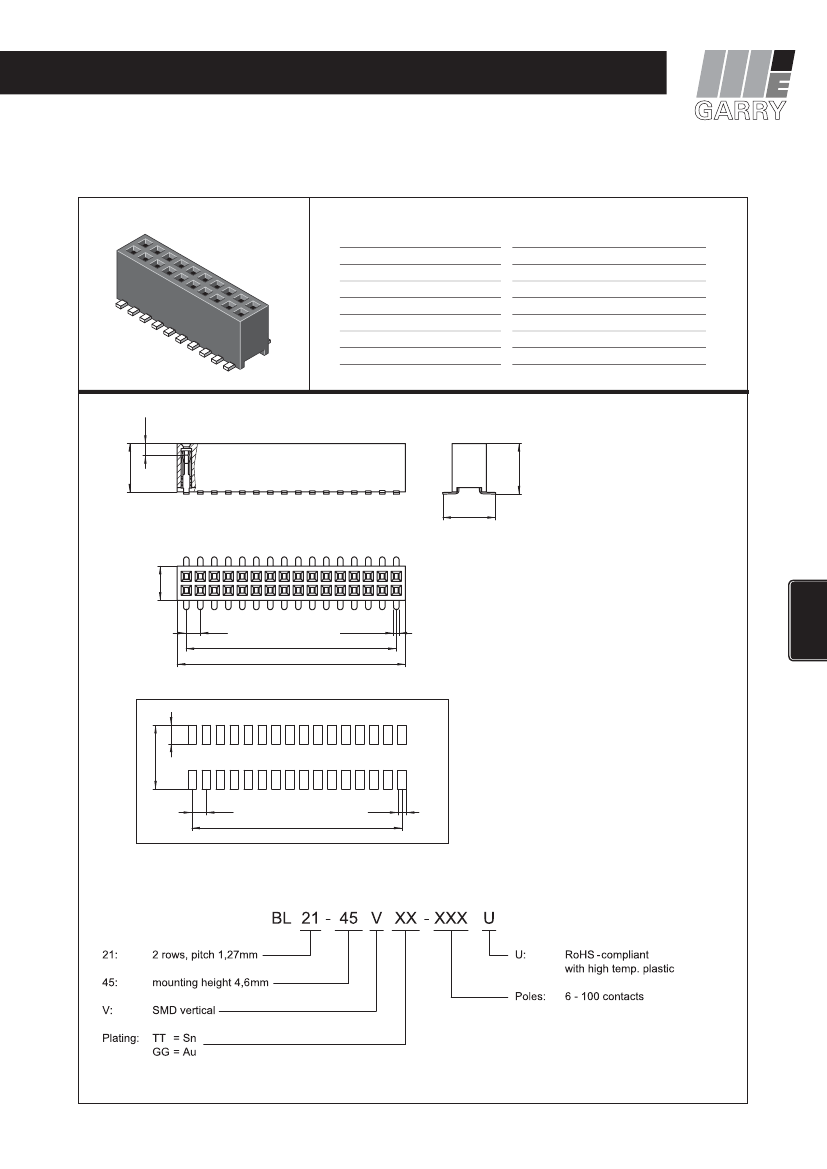

PRODUCT GROUP 8 -

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm

FEMALE HEADER „SMD“ 1,27 mm

ID: 186

BL 21-45V

Series 521

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

1,27 mm

high temp. thermoplast UL94V-0

phosphor bronze

1 Amp.

100 V

RMS

/150 V

500 V

for one minute

-40°C to +105°C

260°C for 10 seconds

4,40

1,06

4,60

3,1

4,60

1,27

0,50 x 0,15

(No of. Contacts / 2 - 1) x 1,27

0,4 + (No of. Contacts / 2) x 1,27

P.C.B. Layout

1,70

5,60

1,27

(No of. Contacts / 2 - 1) x 1,27

0,74

All dimensions in mm.

Other dimensions upon request.
