TX1193NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> TX1193NL

TX1193NL: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size345KB，2 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

TX1193NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TX1193NL	-	-	View	Buy Now

TX1193NL Overview

Telecom Transformer, ROHS COMPLIANT

TX1193NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	9 weeks
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2CT; 1CT:1CT
high	5.51 mm
JESD-609 code	e3
length	17.53 mm
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	L17.53XB12.2XH5.51 (mm)
surface mount	YES
Terminal surface	Matte Tin (Sn)
Transformer type	TELECOM TRANSFORMER
width	12.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

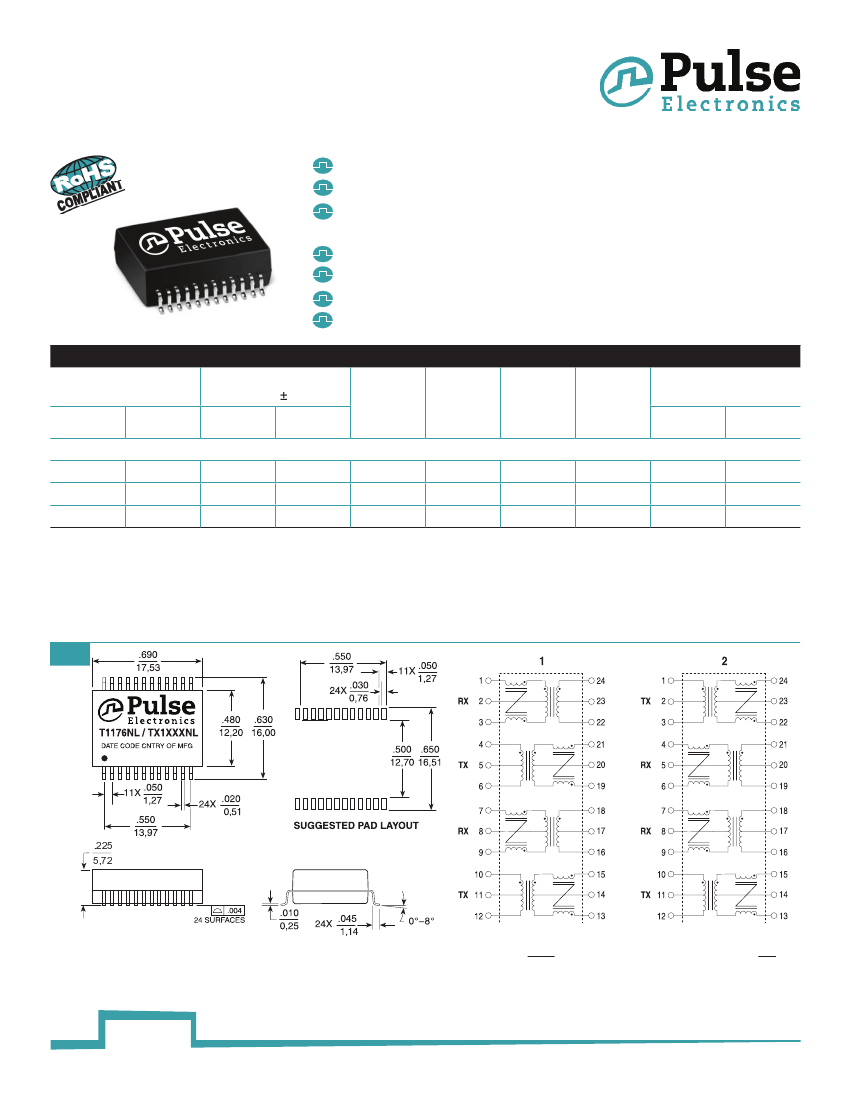

T1/E1/CEPT/ISDN-PRI

INTERFACE MODULES

Four Transformer Modules for Dual SMT

T1/E1 Ports, Extended Temperature Range

SMT Dual Port package contains transformers with optional

common mode chokes on both transmit and receive channels

Patented Interlock Base construction for high-reliability

Recognized to UL 1950

Isolation Voltage: 1500 Vrms

Electrical Speciﬁcations @ 25°C

RoHS Compliant

Part Number

w/CMC

T1176NL

TX1192NL

TX1193NL

wo/CMC

TX1323NL

Turns Ratio

(Pri: Sec 2%)

Transmit

1CT:2.4CT

1CT:2.42CT

1CT:2CT

Receive

1CT:1CT

1CT:2.42CT

1CT:1CT

Secondary

OCL @ 25 C

(mH MIN)

1.20

Primary Pins

Cw/w

(pF MAX)

DCR Pri

( MAX)

.80

Package/

Schematic

WAT/2

WAT/1

Transmit

1-3 & 10-12

4-6 & 10-12

Receive

21-19 & 18-16

1-3 & 7-9

24-22 & 18-16

EXTENDED TEMPERATURE RANGE MODELS - OPERATING TEMPERATURES

-40 C TO +85 C

Notes:

1. Extended Temperature Range Models

- For extended temperature range transformers (-40 C to +85 C operating temperature range), OCL (Open Circuit Inductance) is speciﬁed at both

-40 C and +25 C. At -40 C, OCL is 600 H minimum. All other parameters are speciﬁed at +25 C only.

2. Turns ratio

is speciﬁed primary: secondary (CT = Center Tap).

3. Standard packaging

for the surface mount package is anti-static tubes. Optional Tape & Reel can be ordered by adding a “T” su x to the part number, (i.e T1176NLT).

Mechanical

WAT

Schematics

USA 858 674 8100

Weight

......................3.8 grams

Tape & Reel

..................175/reel

Tray

..............................105/tray

Dimensions:

Inches

Unless otherwise speciﬁed, all tolerances are

.010

0,25

Germany 49 7032 7806 0

Singapore 65 6287 8998

pulseelectronics.com

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

T662.F (5/17)

TX1193NL Related Products

	TX1193NL	TX1193NLT	TX1323NL	TX1323NLT	T1176NL	T1176NLT	TX1192NL	TX1192NLT	TX1322NL	TX1322NLT
Description	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2CT; 1CT:1CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2CT; 1CT:1CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2CT; 1CT:1CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2CT; 1CT:1CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2.4CT; 1CT:1CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2.4CT; 1CT:1CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2.42CT; 1CT:2.42CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2.42CT; 1CT:2.42CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2.42CT; 1CT:2.42CT	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1CT:2.42CT; 1CT:2.42CT
high	5.51 mm	5.51 mm	5.51 mm	5.51 mm	5.51 mm	5.51 mm	5.51 mm	5.51 mm	5.51 mm	5.51 mm
length	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TUBE	TAPE & REEL	TUBE	TAPE & REEL	TUBE	TAPE & REEL	TUBE	TAPE & REEL	TUBE	TAPE & REEL
physical size	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)	L17.53XB12.2XH5.51 (mm)
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm
Maker	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
