BE Series
All Purpose
Reed Relays
MEDER electronic
DESCRIPTION
With the extensive BE Series you have the choice
between a metal and a plastic casing. The glob-
ally current pinnings assure the availability of widely
pin-compatible Reed Relays. This series` range of
applications is very wide-spread due to the variety of
possible contact combinations:
FEATURES
•
•
•
•
•
•
•
Up to 5 switches in a package (Consult factory)
Normally closed option
Insulation resistance up to 10
14
Ω
available
Metal and Plastic casings available
Latching version available
4.5 kVDC (3.0 kVRMS) contact to coil option
High contact to coil voltage
APPLICATIONS
•
Telecommunications
•
Medical equipment
•
Test and Measurement
•
General applications
All dimensions in mm [inch]

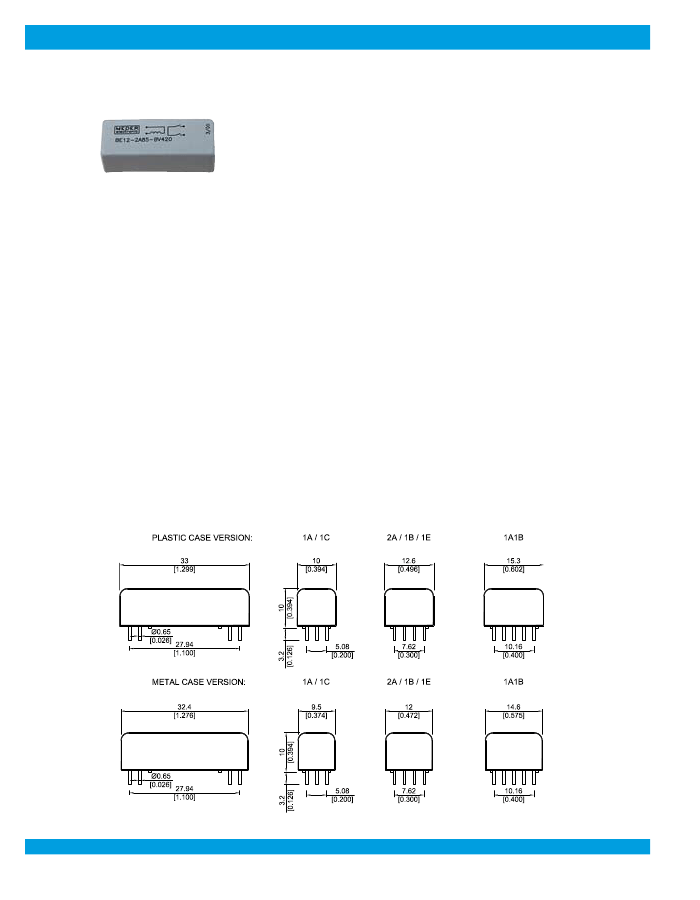

DIMENSIONS
www.meder.com
126
MEDER electronic
BE Serie
All Purpose
Reed Relays
ORDER INFORMATION
Part Number Example
BE05 - 1A85 - P
05
is the nominal voltage
1A
is the contact form
85
is the switch model
P
is the casing
Series
BE
Nominal
Voltage
XX -
05, 12, 24
Contact
Form
XX
1A
Switch
Model
XX -
31, 66, 79, 85
66
66
66
90
66
66, 79, 85
66
Pin Out
XX
10
11
10
11
15
14
20
23
Casing
option
(p, m, v) *
X
P, M
V
M
V
P, M
M
P, M
M
HI
High **
Insulation
resistance
XX
05, 12, 24
Options
05, 12, 24
05, 12
05, 12, 24
05, 12, 24
1B
1C
1E
2A
1A1B
* P = plastic, M = metal, V = High isolation voltage
Please note: Selecting option V offers 4,5 kV breakdown voltage contact to coil, but only for pin out 11.
** Selects the 10
14
Ω option between contact to coil and plastic case.

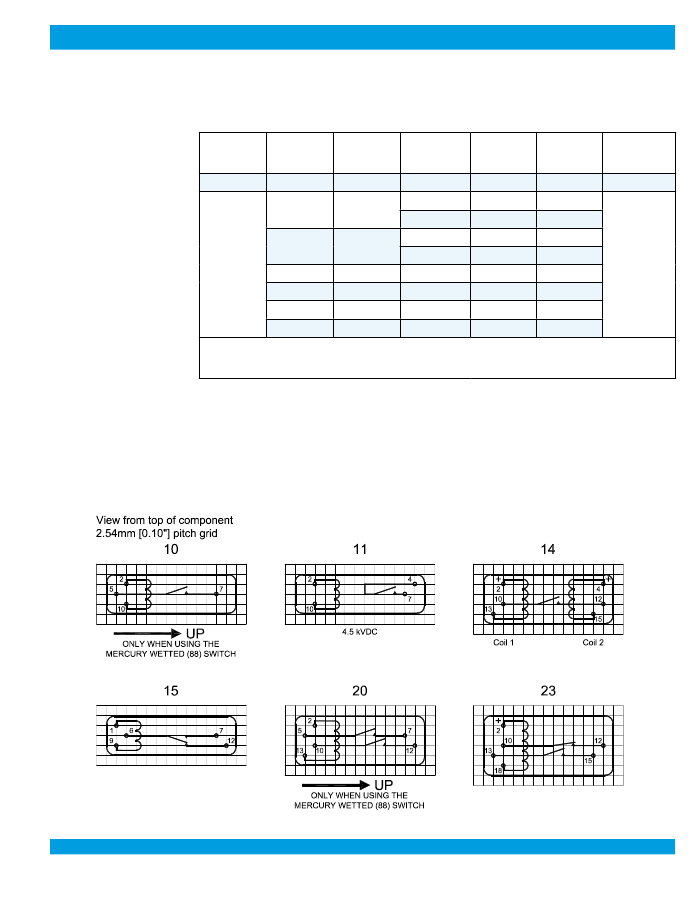

PIN OUT
www.meder.com
127
BE Series
All Purpose
Reed Relays
MEDER electronic
RELAY DATA
All Date at 20° C
Contact Ratings
Switching Power
Switching Voltage
Switching Current
Carry Current
Static Contact Resistance
Dynamic Contact Resis-
tance
Insulation Resistance
(100 Volts applied)
Breakdown Voltage
Operate Time incl. Bounce
Reset Time
Capacitance
Life Expectancies
Switching 5V & 10 mA
DC only & <10 pF stray cap.
100
1000
1000
10
6
Cy-
cles
Switch Model
→
Contact Form
→
Conditions
Any DC combination of V & A not to
exceed their individual max.‘s
Switch 31
Form A
Switch 66
Form A / B
Switch 79
Form A
Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units
50
500
2
2
80
10
200
0.5
1.25
150
200
10
10
10
11
1500
4500
1.2
1
0.2
5.0
0.2
5.0
10
10
10
12
225
2.0 *
0.5
0.1
0.2
5.0
10
12
10
12
4000
2.0
25
1000
1.0
2
150
200
10
14
10
14
2000
4500
0.8
0.4
0.4
/
W
V
A
A
mΩ
mΩ
Ω
VDC
kVDC
DC or peak AC
DC or peak AC
DC or peak AC
w/ 0.5 V & 10 mA
Measured w/ 0.5 V & 50 mA , 1.5
ms after closure
Across contacts Contact to coil
Across contacts Contact to coil
Measured w/ 100 % overdrive
Measured w/ no coil suppression
ms
ms
pF
Across contacts Contact to coil
For other load requirements, see the life test section on P. 120.
Environmental Data
Shock Resistance
Vibration Resistance
Ambient Temperature
Storage Temperature
Soldering Temperature
1/2 Sine wave duration 11ms
10 - 2000 Hz
10°C/minute max. allowable
10°C/minute max. allowable
5 sec. dwell
-20
-35
50
20
70
85
260
-20
-40
50
20
70
105
260
-20
-40
50
20
70
105
260
g
g
°C
°C
°C
* 4.5 kVDC / 3.0 kVRMS when the V option is selected.
www.meder.com
128
MEDER electronic
BE Series
All Purpose
Reed Relays
RELAY DATA
All Date at 20° C
Contact Ratings
Switching Power
Switching Voltage
Switching Current
Carry Current
Static Contact Resistance
Dynamic Contact Resis-
tance
Insulation Resistance
(100 Volts applied)
Breakdown Voltage
Operate Time incl. Bounce
Reset Time
Capacitance
Life Expectancies
Switching 5V & 10 mA
DC only & <10 pF stray cap.
500
100
10
6
Cycles
Switch Model
→
Contact Form
→
Conditions
Any DC combination of V & A not to
exceed their individual max.‘s
Switch 85
Form A
Switch 90
Form C
Min. Typ. Max. Min. Typ. Max. Units
100
1000
1.0
2.5
150
200
10
12
10
12
4000
2.0
1.0
0.1
0.2
5.0
1.0
5.0
10
9
10
12
200
2000
0.7
1.5
10
175
0.25
1.2
150
250
W
V
A
A
mΩ
mΩ
Ω
VDC
DC or peak AC
DC or peak AC
DC or peak AC
w/ 0.5 V & 50 mA
Measured w/ 0.5 V & 50 mA ,
1.5 ms after closure
Across contacts Contact to coil
Across contacts Contact to coil
Measured w/ 100 % overdrive
Measured w/ no coil suppression
ms
ms
pF
Across contacts Contact to coil
For other load requirements, see the life test section on P. 120.
Environmental Data
Shock Resistance
Vibration Resistance
Ambient Temperature
Storage Temperature
Soldering Temperature
1/2 Sine wave duration 11ms
10 - 2000 Hz
10°C/minute max. allowable
10°C/minute max. allowable
5 sec. dwell
-20
-40
50
20
70
105
260
-20
-40
50
20
70
105
260
g
g
°C
°C
°C
www.meder.com
129
BE Series
All Purpose
Reed Relays
MEDER electronic
COIL DATA
Contact
Form
Switch
Model
Coil
Voltage
VDC
Nom.
5
12
5
Max.
7.5
16
7.5
16
30
7.5
16
7.5
16
30
7.5
16
30
7.5
16
30
7.5
16
7.5
16
30
7.5
16
30
7.5
16
30
Coil
Resistance
Pull-In
Voltage
VDC
Max.
3.5
8.4
3.5
8.4
16.8
3.5
8.4
3.5
8.4
16.8
3.5
8.4
16.8
3.5
8.4
16.8
3.5
8.4
3.5
8.4
16.8
3.5
8.4
16.8
3.5
8.4
16.8
Drop-Out
Voltage
VDC
Min.
0.5
1.2
0.75
1.8
3.6
0.3
1.2
0.75
1.8
3.6
0.75
1.8
3.6
0.75
1.8
3.6
0.75
1.8
0.75
1.8
3.6
0.75
1.8
3.6
0.75
1.8
3.6
Nominal
Coil Power
mW
Typ.****
238
232
179 (72)
168 (67)
175 (73)
238
232
238 (179)
232 (144)
411 (250)
139
131
136
72
67
73
29
28
357 (139)
324 (131)
339 (136)
357 (227)
343 (240)
533 (360)
455
424
427
All Data
at 20 °C *
31
Ω
Typ. ****
Tolerence ± 10%
105
620
140 (345)
855 (2145)
3285 (7845)
105
620
105 (140)
620 (1000)
1400 (2300)
(180)
(1100)
(4240)
345
2145
7845
2 x 850
2x 5060
70 (180)
445 (1100)
1700 (4240)
70 (110)
420 (600)
1080 (1600)
(55)
(370)
(1350)
66
1A
79
12
24
5
12
5
85
12
24
5
1B **
66
12
24
5
1C
90
12
24
1E ***
66
5
12
5
66
2A
85
12
24
5
12
24
5
1A1B**
66
12
24
* The pull-in / drop-out voltage and coil resistence will change at the rate of 0,4 % per degrees C.
** Reclosure of Form B may occur if the max. voltage is exceeded. Coil polarity on Form B must be observed. Pin 2 is positive.
*** Coil polarity must be observed. Applying a 2 ms pulse to Coil No. 1 with nominal voltage will latch the contacts.
Applying a 2 ms pulse to Coil No. 2 will unlatch the contacts.
**** The figures in brackets are for relays in metal casing.
www.meder.com
