0.5mm Pitch SMT Board to Board Connector
DF12 Series
Correspond to automatic mounting
The vacuum pick-up area secures the automatic mounting
machine for pick and place.
sFeatures

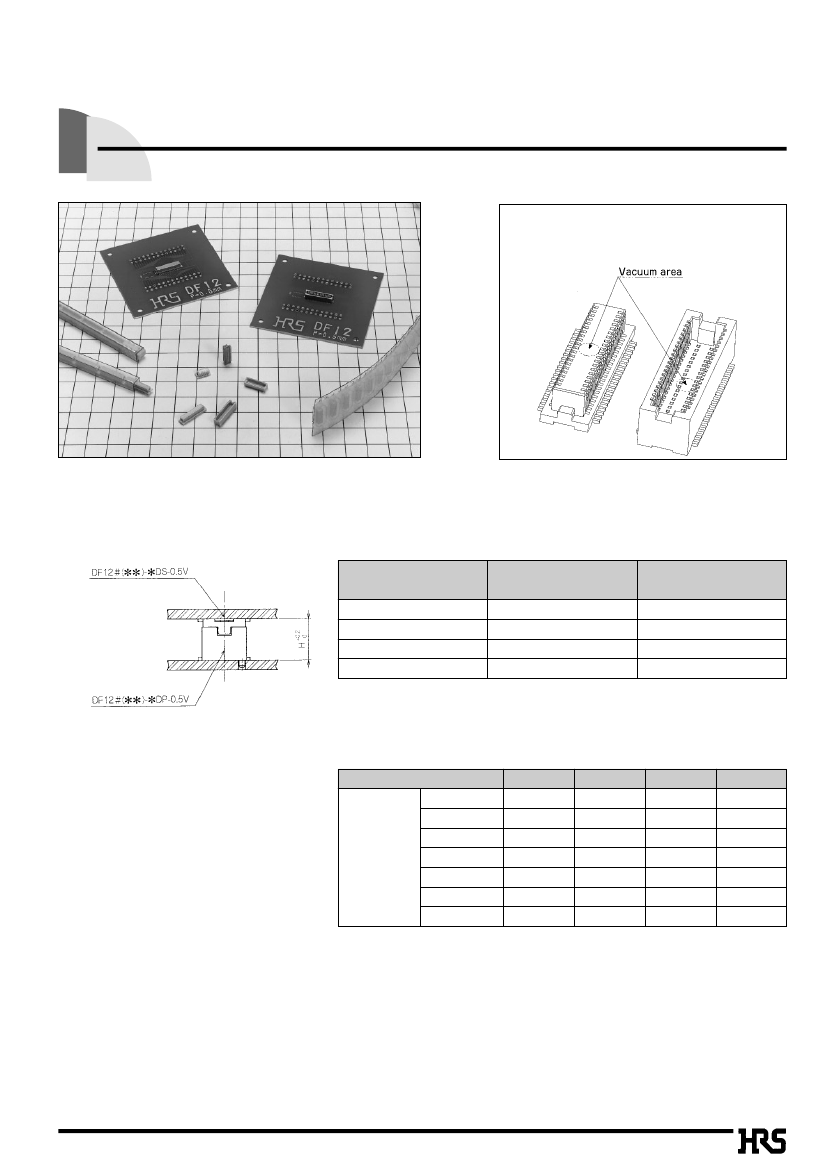

1. Broad Variations of Stacking Height
In addition to 0.5mm pitch ultra-miniature size connector, the stacking height of 3mm, 3.5mm, 4mm, and 5mm are provided.
Header/Receptacle
DF12#(3.0)-*DP-0.5V
DF12#(3.5)-VDP-0.5V
DF12#(4.0)-*DP-0.5V
DF12#(5.0)-*DP-0.5V
DF12#(3.0)-*DS-0.5V
3.0
–––––––
–––––––
–––––––
DF12#-*DS-0.5V
–––––––
3.5
4.0
5.0
Combination
stacking height
Combination
stacking height
Note 1 : (
**
) of the product name DF12# (
**
) indicates the stacking height.
Note 2 : The stacking height doesn't include the soldering paste thickness.
[Stacking Height Variation]
Stacking Height
20 contacts
30 contacts
32 contacts
Number of Contacts
38 contacts
40 contacts
50 contacts
60 contacts
3.0mm
K
K
K
K
K
K
K
3.5mm
K
K
–––––––
K
K
K
K
4.0mm
K
K
–––––––
K
K
K
K
5.0mm
K
K
–––––––
K
K
K
K
2. Corresponding to Automatic Mounting
The connector has the vacuum pick-up area to enable automatic mounting with the embossed tape packaging.
3. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is provided, considering the mounting on FPC.
sApplications
Mobile phone, LCD(Liquid Crystal Display), MO(Optical Disk), Note PC
A297
sProduct
Specifications
Rating
Current rating 0.3A
Operating Temperature Range
-45 to +125ç
(Note 1) Storage Temperature Range
-40
to
80%
Storage Humidity Range
-10 to +60ç
(Note 2)
-40
to
70%
Voltage rating 50V AC Operating Humidity Range
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
6. Temperature Cycle
500
ohms
min.
Specification
100V DC
150V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50m
ohms
max.
No electrical discontinuity of 1µs or more
Contact resistance: 50m
ohms
max. Insulation resistance:500M
ohms
min
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes 5 to 35ç: 10 minutes 85ç: 30 minutes 5 to 35ç: 10 minutes) 5 cycles
50 cycles
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance:500M
ohms
min
7. Durability (Mating/un-mating) Contact resistance: 50m
ohms
max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Receptacle/Header
Part
Insulator
Contact
Fitting
Material
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plated
Tin-lead plated
Remarks
UL94-V0
–––––––
–––––––
sOrdering
Information
Please determine the specific product. If needed, please select and order products from the product No. as listed on catalog
page A299~A305.
qReceptacle
DF12
q
: DF12
Fitting
Blank
A
B
C
K
∞
K
∞
Boss
K
K
∞
∞
#
(**)
-
*
DS - 0.5 V
(**)
w
e
r
t
y
u
i
e
Stacking height
3.0
: 3.0mm
Blank : 3.5
to
5.0mm
r
Number of Contacts : 20, 30, 32, 36, 40, 50, 60
(The 32 contacts connector includes the
stacking height 3mm only.)
t
Connector Type
DS : Double-row receptacle
y
Contact Pitch : 0.5mm
u
Contact Style
V: Straight SMT
i
Packaging Type
(81) : Embossed tape packaging
q
Series Name
w
Type
qHeader
DF12
q
Fitting
Blank
B
D
E
K
K
∞
∞
Boss
K
∞
K
∞
#
(**)
-
*
DP - 0.5 V (
**
)
w
e
r
t
y
u
i
e
Stacking height
Indication Stacking Height
3.0
3.5
4.0
5.0
3.0mm
3.5mm
4.0mm
5.0mm
w
Type
t
Connector Type
DP: Double-row pin header
A298

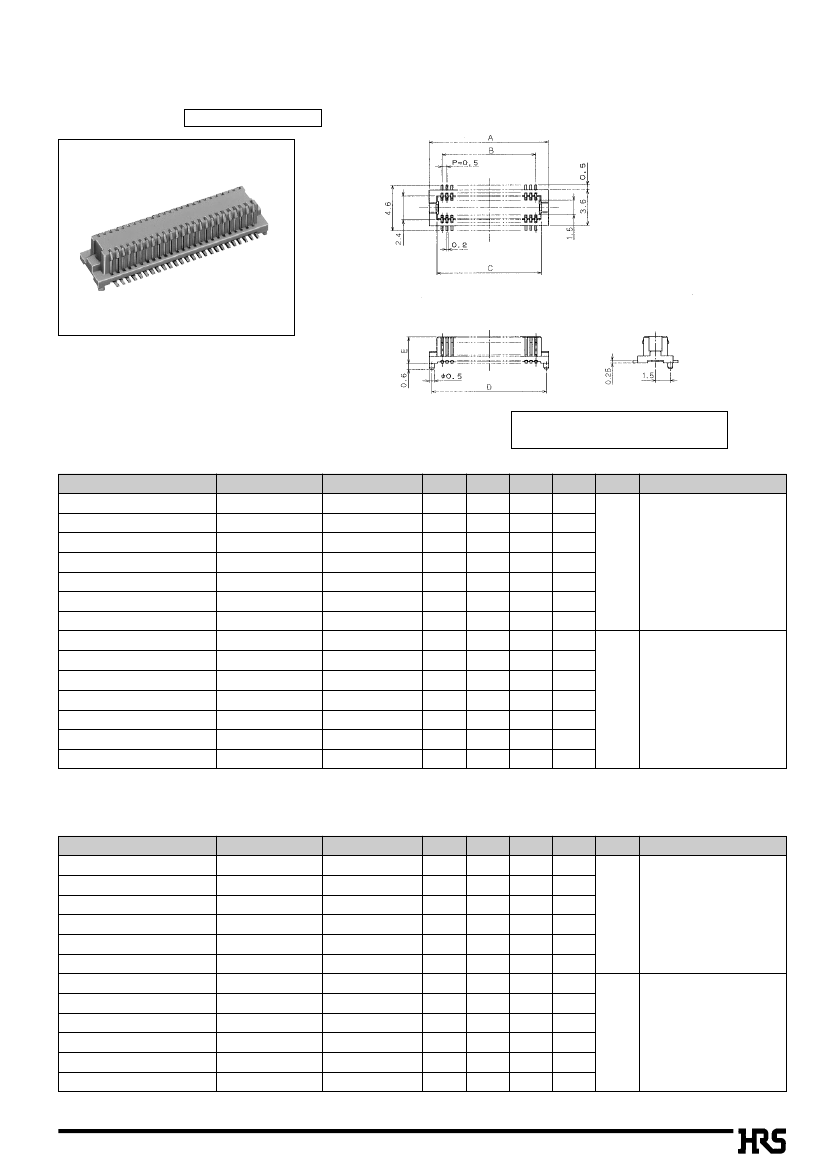

sReceptacle
Without metal fitting
[Specific No.]
– **,
(
**
)
(81):
Gold plated
embossed tape
packaging
qProduct
Height: 3mm Product
Part Number
DF12A (3.0)-20DS-0.5V (**)
DF12A (3.0)-30DS-0.5V (**)
DF12A (3.0)-32DS-0.5V (**)
DF12A (3.0)-36DS-0.5V (**)
DF12A (3.0)-40DS-0.5V (**)
DF12A (3.0)-50DS-0.5V (**)
DF12A (3.0)-60DS-0.5V (**)
DF12C (3.0)-20DS-0.5V (**)
DF12C (3.0)-30DS-0.5V (**)
DF12C (3.0)-32DS-0.5V (**)
DF12C (3.0)-36DS-0.5V (**)
DF12C (3.0)-40DS-0.5V (**)
DF12C (3.0)-50DS-0.5V (**)
DF12C (3.0)-60DS-0.5V (**)
CL No.
537-0628-4-**
537-0630-6-**
537-0637-5-**
537-0631-9-**
537-0632-1-**
537-0634-7-**
537-0636-2-**
537-0688-6-**
537-0690-8-**
537-0697-7-**
537-0691-0-**
537-0692-3-**
537-0694-9-**
537-0696-4-**
Number of Contacts
20
30
32
36
40
50
60
20
30
32
36
40
50
60
A
07.1
09.6
10.1
11.1
12.1
14.6
17.1
07.1
09.6
10.1
11.1
12.1
14.6
17.1
B
04.5
07.0
07.5
08.5
09.5
12.0
14.5
04.5
07.0
07.5
08.5
09.5
12.0
14.5
C
05.6
08.1
08.6
09.6
10.6
13.1
15.6
05.6
08.1
08.6
09.6
10.6
13.1
15.6
D
06.6
09.1
09.6
10.6
11.6
14.1
16.6
––––
––––
––––
––––
––––
––––
––––
2.2
2.2
E
Remarks
Unit: mm
Without metal fitting
With boss
Without metal fitting
Without boss
qProduct
Height: 3.5 to 5mm Product
Part Number
DF12A-20DS-0.5V (**)
DF12A-30DS-0.5V (**)
DF12A-36DS-0.5V (**)
DF12A-40DS-0.5V (**)
DF12A-50DS-0.5V (**)
DF12A-60DS-0.5V (**)
DF12C-20DS-0.5V (**)
DF12C-30DS-0.5V (**)
DF12C-36DS-0.5V (**)
DF12C-40DS-0.5V (**)
DF12C-50DS-0.5V (**)
DF12C-60DS-0.5V (**)
CL No.
537-0078-5-**
537-0080-7-**
537-0081-0-**
537-0082-2-**
537-0084-8-**
537-0086-3-**
537-0203-5-**
537-0205-0-**
537-0206-3-**
537-0207-6-**
537-0209-1-**
537-0211-3-**
Number of Contacts
20
30
36
40
50
60
20
30
36
40
50
60
A
07.1
09.6
11.1
12.1
14.6
17.1
07.1
09.6
11.1
12.1
14.6
17.1
B
04.5
07.0
08.5
09.5
12.0
14.5
04.5
07.0
08.5
09.5
12.0
14.5
C
05.6
08.1
09.6
10.6
13.1
15.6
05.6
08.1
09.6
10.6
13.1
15.6
D
06.6
09.1
10.6
11.6
14.1
16.6
––––
––––
––––
––––
––––
––––
2.7
2.7
E
Remarks
Unit: mm
Without metal fitting
With boss
Without metal fitting
Without boss
Note 1: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A299

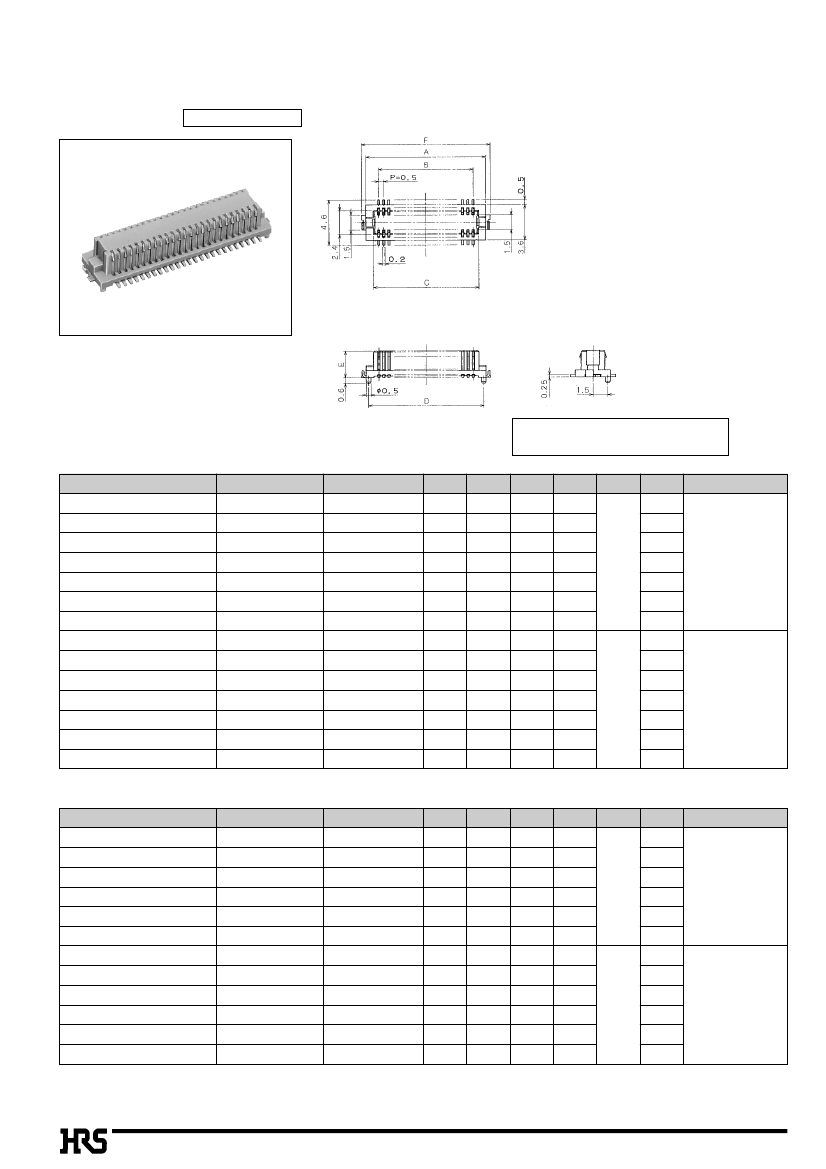

s
Receptacle
With metal fitting
[Specific No.]
– **, (**)
(81):
Gold plated
embossed tape
packaging
qProduct
Height: 3mm Product
Part Number
DF12 (3.0)-20DS-0.5V
(**)
DF12 (3.0)-30DS-0.5V
(**)
DF12 (3.0)-32DS-0.5V
(**)
DF12 (3.0)-36DS-0.5V
(**)
DF12 (3.0)-40DS-0.5V
(**)
DF12 (3.0)-50DS-0.5V
(**)
DF12 (3.0)-60DS-0.5V
(**)
DF12B (3.0)-20DS-0.5V
(**)
DF12B (3.0)-30DS-0.5V
(**)
DF12B (3.0)-32DS-0.5V
(**)
DF12B (3.0)-36DS-0.5V
(**)
DF12B (3.0)-40DS-0.5V
(**)
DF12B (3.0)-50DS-0.5V
(**)
DF12B (3.0)-60DS-0.5V
(**)
CL No.
537-0603-3-**
537-0605-9-
**
537-0612-4-
**
537-0606-1-
**
537-0607-4-
**
537-0609-0-
**
537-0611-1-
**
537-0653-1-
**
537-0655-7-
**
537-0662-2-
**
537-0656-0-
**
537-0657-2-
**
537-0659-8-
**
537-0661-0-
**
Number of Contacts
20
30
32
36
40
50
60
20
30
32
36
40
50
60
A
07.1
09.6
10.1
11.1
12.1
14.6
17.1
07.1
09.6
10.1
11.1
12.1
14.6
17.1
B
04.5
07.0
07.5
08.5
09.5
12.0
14.5
04.5
07.0
07.5
08.5
09.5
12.0
14.5
C
05.6
08.1
08.6
09.6
10.6
13.1
15.6
05.6
08.1
08.6
09.6
10.6
13.1
15.6
D
06.6
09.1
09.6
10.6
11.6
14.1
16.6
––––
––––
––––
––––
––––
––––
c
2.2
2.2
E
F
08.0
10.5
11.0
12.0
13.0
15.5
18.0
08.0
10.5
11.0
12.0
13.0
15.5
18.0
Unit: mm
Remarks
With metal fitting
With boss
With metal fitting
Without boss
qStacking
Height: 3.5 to 5mm Product
Part Number
DF12-20DS-0.5V
(**)
DF12-30DS-0.5V
(**)
DF12-36DS-0.5V
(**)
DF12-40DS-0.5V
(**)
DF12-50DS-0.5V
(**)
DF12-60DS-0.5V
(**)
DF12B-20DS-0.5V
(**)
DF12B-30DS-0.5V
(**)
DF12B-36DS-0.5V
(**)
DF12B-40DS-0.5V
(**)
DF12B-50DS-0.5V
(**)
DF12B-60DS-0.5V
(**)
CL No.
537-0003-6-
**
537-0005-1-
**
537-0006-4-
**
537-0007-7-
**
537-0009-2-
**
537-0011-4-
**
537-0303-0-
**
537-0305-5-
**
537-0306-8-
**
537-0307-0-
**
537-0309-6-
**
537-0311-8-
**
Number of Contacts
20
30
36
40
50
60
20
30
36
40
50
60
A
07.1
09.6
11.1
12.1
14.6
17.1
07.1
09.6
11.1
12.1
14.6
17.1
B
04.5
07.0
08.5
09.5
12.0
14.5
04.5
07.0
08.5
09.5
12.0
14.5
C
05.6
08.1
09.6
10.6
13.1
15.6
05.6
08.1
09.6
10.6
13.1
15.6
D
06.6
09.1
10.6
11.6
14.1
16.6
––––
––––
––––
––––
––––
––––
2.7
2.7
E
F
08.0
10.5
12.0
13.0
15.5
18.0
08.0
10.5
12.0
13.0
15.5
18.0
Unit: mm
Remarks
With metal fitting
With boss
With metal fitting
Without boss
Note : Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A300

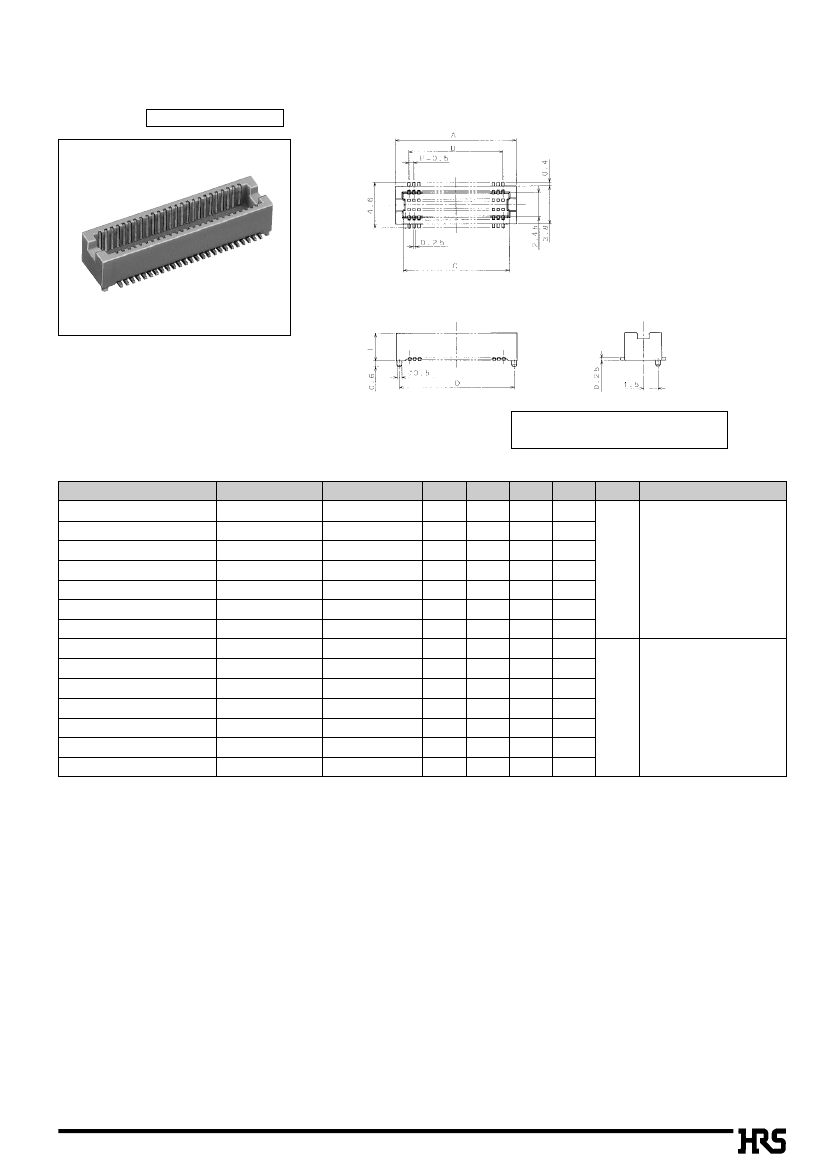

s
Header
Without metal fitting
[Specific No.]
– **, (**)
(81):
Gold plated
embossed tape
packaging
qStacking
Height: 3.5 to 5mm Product
Part Number
CL No.
Number of Contacts
20
30
32
36
40
50
60
20
30
32
36
40
50
60
A
07.2
09.7
10.2
11.2
12.2
14.7
17.2
07.2
09.7
10.2
11.2
12.2
14.7
17.2
B
04.5
07.0
07.5
08.5
09.5
12.0
14.5
04.5
07.0
07.5
08.5
09.5
12.0
14.5
C
05.7
08.2
08.7
09.7
10.7
13.2
15.7
05.7
08.2
08.7
09.7
10.7
13.2
15.7
D
06.6
09.1
09.6
10.6
11.6
14.1
16.6
––––
––––
––––
––––
––––
––––
––––
2.3
2.3
E
Remarks
DF12D (3.0)-20DP-0.5V
(**)
537-0793-0-
**
DF12D (3.0)-30DP-0.5V
(**)
537-0795-6-
**
DF12D (3.0)-32DP-0.5V
(**)
537-0802-0-
**
DF12D (3.0)-36DP-0.5V
(**)
537-0796-9-
**
DF12D (3.0)-40DP-0.5V
(**)
537-0797-1-
**
DF12D (3.0)-50DP-0.5V
(**)
537-0799-7-
**
DF12D (3.0)-60DP-0.5V
(**)
537-0801-7-
**
DF12E (3.0)-20DP-0.5V
(**)
537-0828-3-
**
DF12E (3.0)-30DP-0.5V
(**)
537-0830-5-
**
DF12E (3.0)-32DP-0.5V
(**)
537-0837-4-
**
DF12E (3.0)-36DP-0.5V
(**)
537-0831-8-
**
DF12E (3.0)-40DP-0.5V
(**)
537-0832-0-
**
DF12E (3.0)-50DP-0.5V
(**)
537-0834-6-
**
DF12E (3.0)-60DP-0.5V
(**)
537-0836-1-
**
Unit: mm
Without metal fitting
With boss
Without metal fitting
Without boss
Note : Order the emboss package product per reel. (1000 pcs./reel)
A301
