P6-24005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> P6-24005

P6-24005: Descriptionlimit switches mom. actn pin rllr 7A 1, 2, & 4 poles; CategoryMechanical and electronic products switch; File Size984KB，3 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com

Download Datasheet Parametric View All

P6-24005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6-24005	-	-	View	Buy Now

P6-24005 Overview

limit switches mom. actn pin rllr 7A 1, 2, & 4 poles

P6-24005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	4.2 mm
Actuator type	PIN PLUNGER
Other features	RADIAL LEADS
body height	25.4 mm
Body length or diameter	18.29 mm
Nozzle length	0.625 inch
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
contact time	SNAP ACTION
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	25000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating force	53.38 N
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Maximum pre-travel	1.02 mm
seal	ENVIRONMENTALLY SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

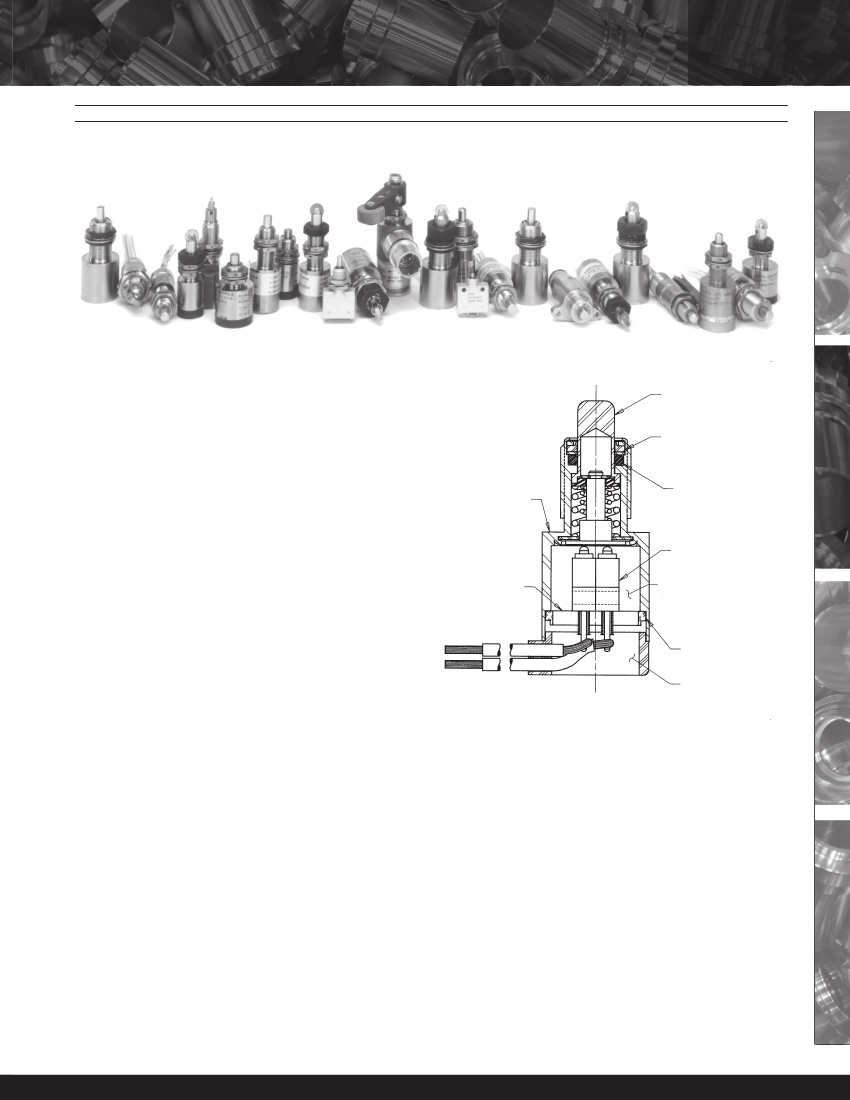

ENVIRONMENT-FREE SEALED

SEALED AGAINST IMMERSION & CORROSIVE ATMOSPHERES

SEALED LIMIT

SWITCHES

P6 series switches are sealed against immersion and corrosive

atmospheres. These switches are designed for rugged duty both

mechanically and electrically. A one-piece stainless steel or

nickel plated brass housing, sealed at the plunger with an O-ring

seal and at the base with a glass-to-metal header option provides

true environment-free sealing to comply with MIL-PRF-8805/39,

MIL-PRF-8805/40, MIL-PRF-8805/43, MIL-PRF-8805/100 and MIL-

PRF-8805/104. Most case parts are grounded for EMI reduction.

The P6 series is available with roller plunger styles for cam or

slide actuation and pin plunger for in-line actuation. Contact

factory for additional designs.

P6 series features the OTTO B2, B3 or B5 series snap-action

basic switch. High contact pressure and unique contact design

provides low contact resistance for low level switching as well

as full rated service.

Stainless Steel

Plunger/Brass Actuator

Ice Scraper Ring

LIMIT SWITCHES

One Piece

Stainless Steel

Housing

“O” Ring Seal

Basic Switches

Glass to Metal

Header Plate

Inert Gas Filled

Switching Chamber

Features:

•

Complies with MIL-PRF-8805 sealing

One-piece housing

Sealed at plunger with O-rings

Sealed at base with a glass seal

EMI reduction construction

Choice of pin or roller plunger

Choice of axial or radial leads

Reach compliant

Solder Joint

Epoxy Potting

Cross section example of OTTO P6-24XXX series.

Specifications Subject To Change Without Notice

www.ottoexcellence.com
