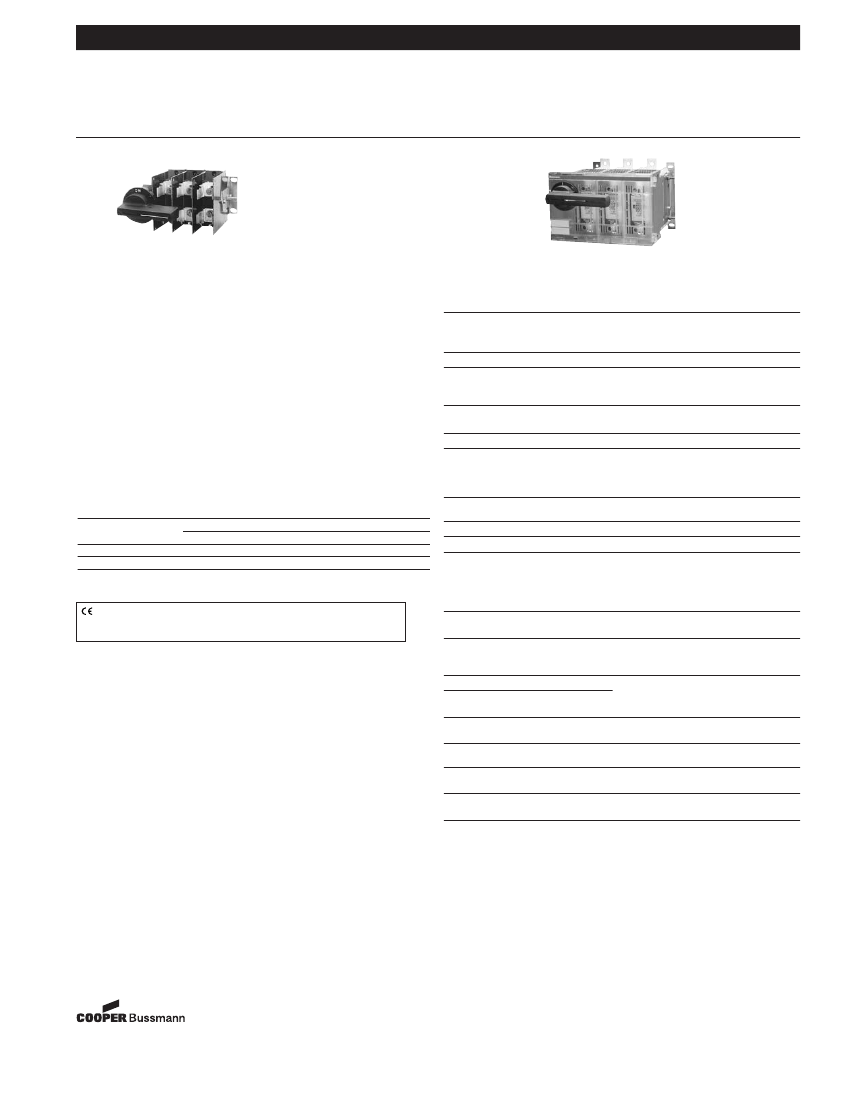

Bussmann
®
Disconnect Switch
Fusible, 60-100A, 600V
BDF60 and
BDF100
BDF60J6
Components:
Catalog Symbols*:
BDF60J6, BDF100JT6
Ampere Rating:
60 to 100 Amperes
Voltage Rating:
600 Volts
Agency Approvals:
UL Listed, Guide WPZX, File E155129
CSA Certified, File 58077M9
IEC 947-1
General Information:
Bussmann fused disconnect switches are UL 98/CSA 22.2 No. 4
devices. This makes them suitable for use on service equipment,
panel boards, switchboards, industrial control equipment, motor
control centers, etc.
*Catalog symbol is for
switch only.
Handles and shafts are ordered separately.
BDF100JT6
Handles
NEMA
Type
1, 12
1, 3R, 12
4, 4X
Grip
Length
(Inches)
60-100A (
Pistol
Pistol
Pistol
Blk
Blk
Blk
3.15
2.36
2.36
Padlock- Defeat-
able
able
Yes
Yes
Yes
Yes
Yes
No
Catalog
Number
BDH20
BDH50
BDH57
Style
Color
Marking
Off/On
Off/On
Off/On
0.24˝ x 0.24˝)
Terminal Lug Kits - Kit Includes 6 Lugs
Amp Rating
100
200
400
600 & 800
Wire Size
#14 - 2/0
#6 - 300 kcmil
#2 - 600 kcmil
(2) #2 - 600 kcmil
Wire Type
Cu/Al
Cu/Al
Cu/Al
Cu/Al
Kit Catalog Number
BDTL24
BDTL25
BDTL26
BDTL27
Fuse
Maximum Horsepower Rating
Type
200V
208V
240V
480V
600V
BDF60J6
J
15
15
15
30
40
BDF100JT6
J†
25
25
30
40
50
†Class J fuses are standard. If 600V Class T fuses are desired, us BDTA1 adapters.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
N
E TC
E I
S
W
S
12-17-98
SB98107
Rev. A
B
DIS ATA
O
W
C
S
E
Switch Type
Fuse
Type
Amp
Rating
60
100
Voltage
600V
600V
J
J or T
E
ECT
T
N
E
N G
L
O O
O
C
S
L
Shafts
Mounting Depth**
5.50
8.00
11.00
13.75
16.54
-
-
-
-
-
8.50
11.00
14.00
16.75
19.69
Shaft Length
5.90
8.26
11.41
14.17
16.93
60 - 100 Amps (
0.24˝ x 0.24˝)
BDS150
BDS210
BDS290
BDS360
BDS430
Catalog Number
**Mounting depth is measured from outside panel door to mounting plate of disconnect. Shaft can
be cut to desired length.
Accessories:
Fuse Covers and Terminal Shrouds (line-side)
Fuse Covers
Catalog
Number
BDFC60J
BDFC100
Terminal Shrouds
Catalog
Number
Not Required
BDTSF1
E
H
Auxiliary Contacts - F60 through F100
Switch
Aux. Contact
Amp Rating Amp Rating
60
100
6
6
Voltage
250
250
1 N.O. & 1 N.C. 2 N.O. & 2 N.C.
Catalog Number Catalog Number
BDAUX7
BDAUX7
BDAUX8
BDAUX8
Form No. BDF
Page 1 of 2
BIF Doc #1121
Bussmann
®
Disconnect Switch
Fusible, 60-100A, 600V

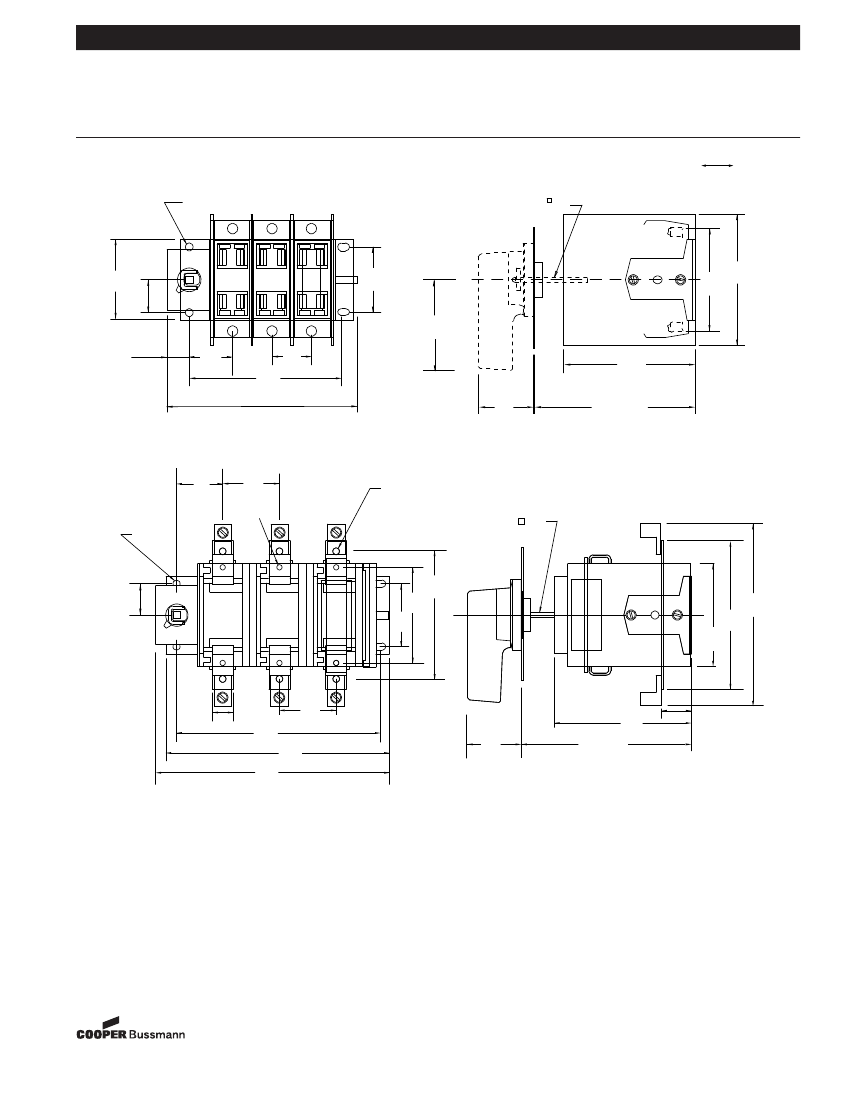

Dimensional Data
60 Amps
0.27 Dia.
7.1
BDF60 and
BDF100
00.00 Inches
00.00 Inches
00.0 Millimeters
00.00 Millimeters
0.23
5.9
2.92
74.1
2.36
1.18
30.0
60.0
4.74
3.70
120.3
94.0
3.19
80.9
.80
20.2
1.54
39.1
1.46
37.0
4.85
123.1
5.57
141.4
6.85 ( 3 POLE ) 8.31 ( 4 POLE )
174.0
211.0
100 Amps
1.75
44.4
2.13
54.1
M6 X 1.0
0.27 Dia.
6.9
1.18
30.0
N HE
E TC
E I
S
W
S
2.15
54.6
B
DIS ATA
O
W
C
S
E
4.76
3.58
91.0
121.0
E
ECT
T
N
E
N G
L
O O
O
C
S
L
2.00
50.8
5.50 ... 8.63
140.0 ... 219.0
0.26 Dia.
6.5
0.23
6.0
2.36
60.0
6.80
5.61
172.5
142.5
3.90
99.2
.79
5.15
130.8
1.14
30.0
20.0
7.70
195.5
8.39
2.01
51.0
5.50...8.62
139.7....219.0
213.0
8.78
223.0
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
12-17-98
SB98107
Rev. A
Form No. BDF
Page 2 of 2
BIF Doc #1121
