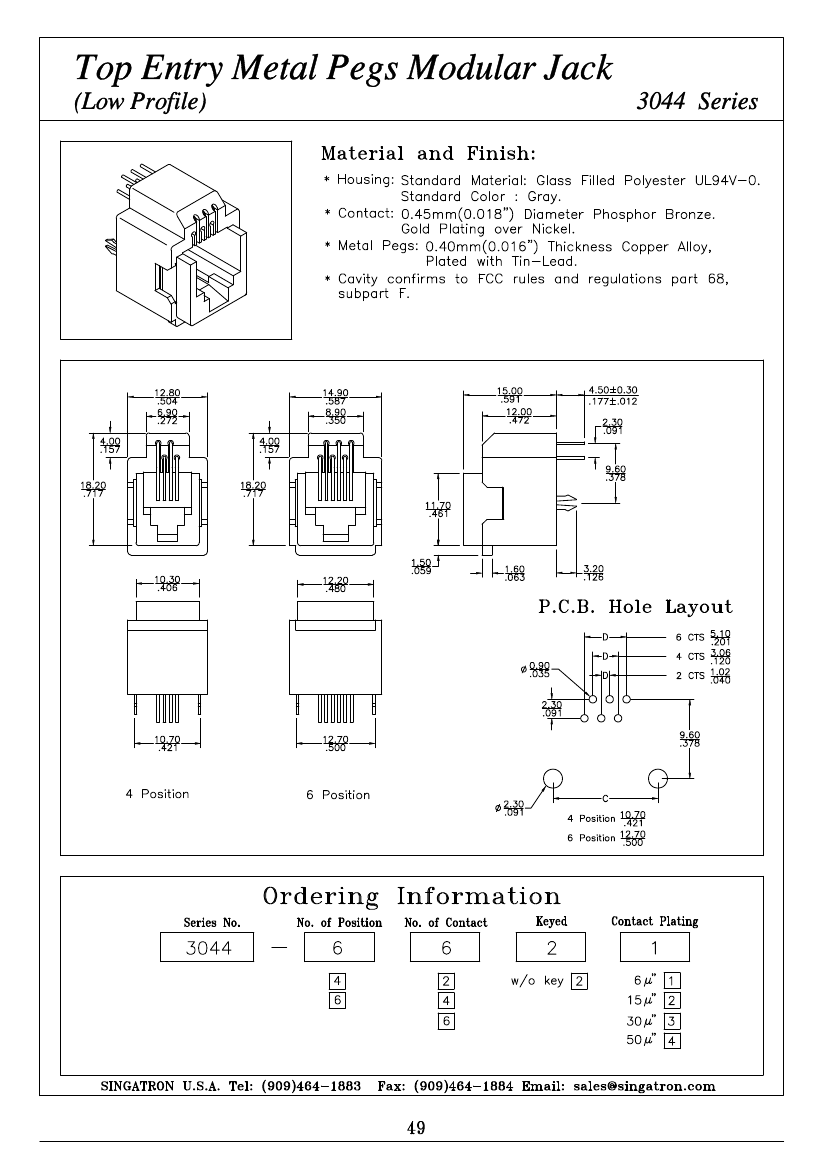

Preview

3044-4421: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

3044-4421 Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

3044-4421 Parametric

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	W/O KEY,LOW PROFILE,TOP ENTRY
Board mount options	SPLIT BOARD LOCK
body width	0.776 inch
subject depth	0.591 inch
body length	0.504 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

3044-4421 Related Products

	3044-4421	3044-4222	3044-4423	3044-4424	3044-4422	3044-4224	3044-4223	3044-4221	3044-6424
Description	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY	W/O KEY,LOW PROFILE,TOP ENTRY
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.776 inch	0.776 inch	0.776 inch	0.776 inch	0.776 inch	0.776 inch	0.776 inch	0.776 inch	0.776 inch
subject depth	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch
body length	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.504 inch	0.587 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1	1	1	1
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	6u inch	15u inch	30u inch	50u inch	15u inch	50u inch	30u inch	6u inch	50u inch
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4	4	4	4	4	6
Maker	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	-
Base Number Matches	1	1	1	1	1	1	1	1	-
